Name: WHEEL HUB WITH BEARING AND CONTROL ARM
Rating: 4.7 (1 reviews)

WHEEL HUB WITH BEARING AND CONTROL ARM of Lamborghini Lamborghini Urus Performante

View All

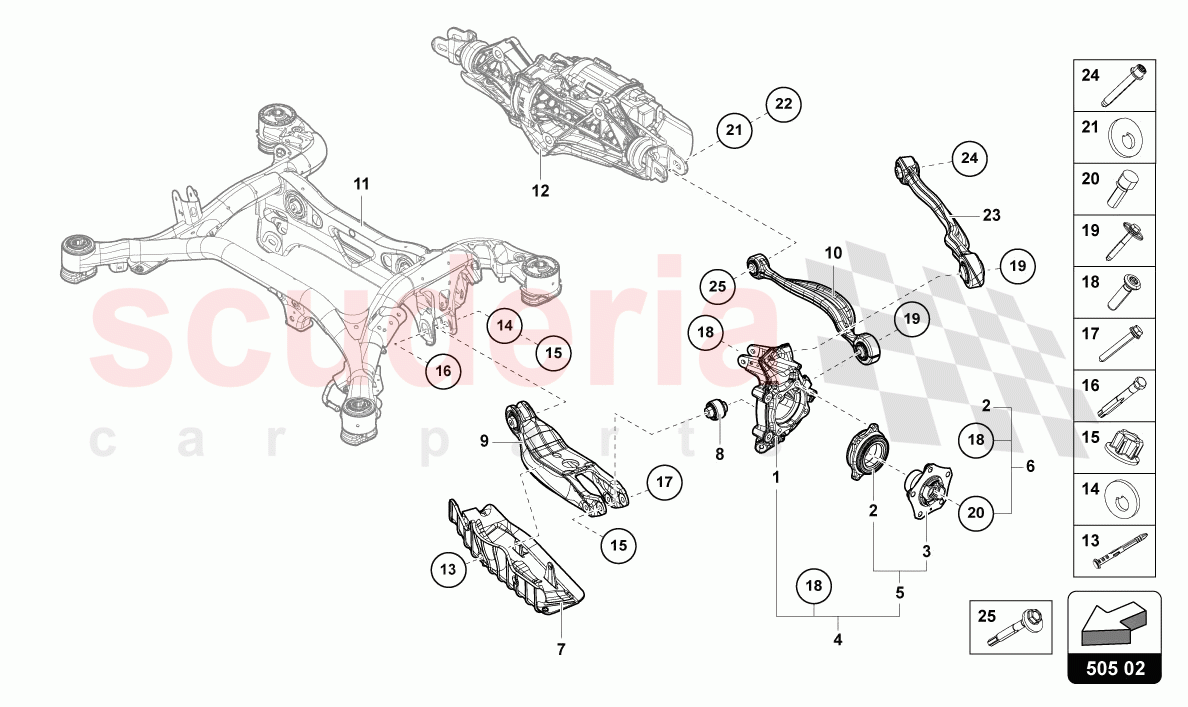

Lamborghini Urus Performante - WHEEL HUB WITH BEARING AND CONTROL ARM (505.02.00)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4M0505435AE	WHEEL BEARING HOUSING	$346.79	To Order
	4M0505436AE	WHEEL BEARING HOUSING	$346.79	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0407625E	DOUBLE BALL BEARING	$233.20	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0501652B	WHEEL HUB	$276.90	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0505431AG	WHEEL BEARING HOUSING	$608.89	To Order
	4M0505432AG	WHEEL BEARING HOUSING	$628.91	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0505415D	STONE CHIP GUARD	$32.00	To Order
	4M0505416C	STONE CHIP GUARD	$32.00	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0505203A	RUBBER BUSH	$38.38	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0505311J	WISHBONE	$409.56	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0501529L	TRACK ROD	$160.36	To Order

Photo	Part No	Description	Price (each)	Stock
	80A512182	RETAINING PIN	$3.45	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT007043A	ECCENTRIC WASHER	$3.37	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT010234	HEXAGON FLANGE NUT, SELF-LOCKING	$4.37	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT008016	ECCENTRIC BOLT	$9.27	To Order

Photo	Part No	Description	Price (each)	Stock
	N91236301	HEXAGON HEAD BOLT (COMBI)	$10.09	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT006966	SCREW WITH INT. SERRATIONS	$5.72	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT006496	HEXAGON FLANGE SCREW (COMBI)	$9.00	To Order

Photo	Part No	Description	Price (each)	Stock
	8E0407643A	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	$13.54	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT007041A	ECCENTRIC WASHER	$3.37	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT007828	HEXAGON FLANGE NUT, SELF-LOCKING	$2.63	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0505397P	WISHBONE	$365.14	To Order
	4M0505398P	WISHBONE	$353.52	To Order

Photo	Part No	Description	Price (each)	Stock
	N91229001	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI)	$6.77	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT007090A	ECCENTRIC BOLT	$12.93	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	4M0505435AE	WHEEL BEARING HOUSING	4M0505435AE WHEEL BEARING HOUSING LEFT	$346.79	1
1	4M0505436AE	WHEEL BEARING HOUSING	4M0505436AE WHEEL BEARING HOUSING RIGHT	$346.79	1
2	4M0407625E	DOUBLE BALL BEARING	4M0407625E DOUBLE BALL BEARING	$233.20	1
3	4M0501652B	WHEEL HUB	4M0501652B WHEEL HUB	$276.90	2
4	4M0505431AG	WHEEL BEARING HOUSING	4M0505431AG WHEEL BEARING HOUSING LEFT	$608.89	1
4	4M0505432AG	WHEEL BEARING HOUSING	4M0505432AG WHEEL BEARING HOUSING RIGHT	$628.91	1
7	4M0505415D	STONE CHIP GUARD	4M0505415D STONE CHIP GUARD LEFT	$32.00	1
7	4M0505416C	STONE CHIP GUARD	4M0505416C STONE CHIP GUARD RIGHT	$32.00	1
8	4M0505203A	RUBBER BUSH	4M0505203A RUBBER BUSH	$38.38	2
9	4M0505311J	WISHBONE	4M0505311J WISHBONE LOWER	$409.56	2
10	4M0501529L	TRACK ROD	4M0501529L TRACK ROD LEFT A. RIGHT	$160.36	2
13	80A512182	RETAINING PIN	80A512182 RETAINING PIN 14MM	$3.45	2
14	WHT007043A	ECCENTRIC WASHER	WHT007043A ECCENTRIC WASHER 35X4X3.5X14.05	$3.37	2
15	WHT010234	HEXAGON FLANGE NUT, SELF-LOCKING	WHT010234 HEXAGON FLANGE NUT, SELF-LOCKING M14X1 -5	$4.37	2
16	WHT008016	ECCENTRIC BOLT	WHT008016 ECCENTRIC BOLT M14X1 -5X94	$9.27	2
17	N91236301	HEXAGON HEAD BOLT (COMBI)	N91236301 HEXAGON HEAD BOLT (COMBI) M14X1 -5X100	$10.09	2
18	WHT006966	SCREW WITH INT. SERRATIONS	WHT006966 SCREW WITH INT. SERRATIONS M12X1 -25X42	$5.72	2
19	WHT006496	HEXAGON FLANGE SCREW (COMBI)	WHT006496 HEXAGON FLANGE SCREW (COMBI) M14X1 -5X100	$9.00	2
20	8E0407643A	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	8E0407643A SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD M16X1 -5X72	$13.54	2
21	WHT007041A	ECCENTRIC WASHER	WHT007041A ECCENTRIC WASHER	$3.37	2
22	WHT007828	HEXAGON FLANGE NUT, SELF-LOCKING	WHT007828 HEXAGON FLANGE NUT, SELF-LOCKING M12X1 -5	$2.63	2
23	4M0505397P	WISHBONE	4M0505397P WISHBONE LEFT REAR	$365.14	1
23	4M0505398P	WISHBONE	4M0505398P WISHBONE RIGHT REAR	$353.52	1
24	N91229001	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI)	N91229001 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI) M12X1 -5X85	$6.77	2
25	WHT007090A	ECCENTRIC BOLT	WHT007090A ECCENTRIC BOLT M12X1 -5X96	$12.93	2
