Led Headlight

Lamborghini Urus (2019-2022)

Illustration Number: 941.01.00

Find Your Part

Lamborghini Urus (2019-2022) - LED HEADLIGHT (941.01.00)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4ML941035E LED HEADLIGHT Enquire To Order
4ML941036E LED HEADLIGHT Enquire To Order
4ML941035D LED HEADLIGHT Enquire To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
4K0941591CG POWER MODULE FOR MAIN LIGHT ELECTRONICS Enquire To Order
Photo Part No Description Price (each) Stock
8S0941749 FILTER ELEMENT Enquire To Order
Photo Part No Description Price (each) Stock
5J0941141B ADJUSTING SCREW Enquire To Order
Photo Part No Description Price (each) Stock
4ML941191 SEALING FRAME Enquire To Order
4ML941192 SEALING FRAME Enquire To Order
Photo Part No Description Price (each) Stock
4ML941475 HEAT DISSIPATOR Enquire To Order
Photo Part No Description Price (each) Stock
4ML941295 HEADLIGHT RANGE CONTROL MOTOR Enquire To Order
Photo Part No Description Price (each) Stock
4ML998030 1 SET BOLTS Enquire To Order
Photo Part No Description Price (each) Stock
4ML941717 BREATHER LINE Enquire To Order
4ML941718 BREATHER LINE Enquire To Order
Photo Part No Description Price (each) Stock
95B941627 CAP Enquire To Order
Photo Part No Description Price (each) Stock
N10554008 ROUND HD. SCREW Enquire To Order
Photo Part No Description Price (each) Stock
N90684704 HEXAGON SOCKET HEAD BOLT (COMBI) Enquire To Order
N90993603 HEX SOCKET HEAD BOLT (COMBI) Enquire To Order
View All

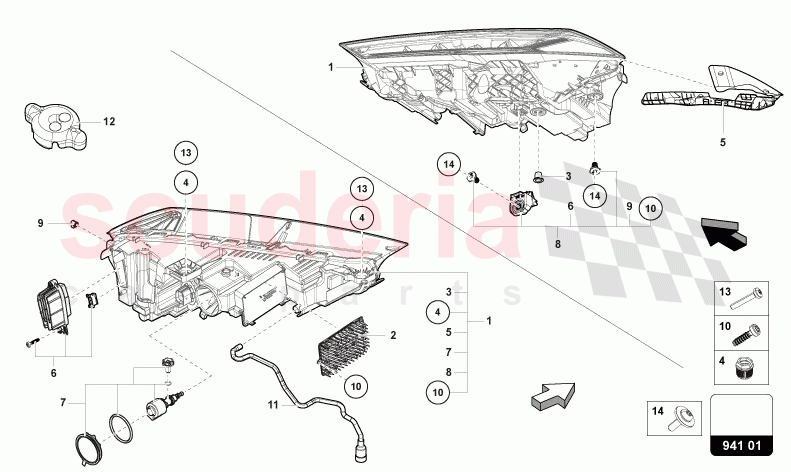

LED HEADLIGHT of Lamborghini Lamborghini Urus (2019-2022) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 4ML941035E
LED HEADLIGHT
NAR-LEFT 		- 1 Enquire
1 4ML941036E
LED HEADLIGHT
NAR-RIGHT 		- 1 Enquire
1 4ML941035D
LED HEADLIGHT
LEFT 		- 1 Enquire
1 4ML941036D
LED HEADLIGHT FRONT RIGHT
RIGHT 		- 1 Enquire
1 4ML941035C
LED HEADLIGHT
FOR EU - RUSSIA, AGC MARKETS, PHILIPPINES, SOUTH KOREA, CHINA, TAIWAN, MEXICO, BRAZIL, CHILE-LEFT 		- 1 Enquire
1 4ML941036C
LED HEADLIGHT
FOR EU - RUSSIA, AGC MARKETS, PHILIPPINES, SOUTH KOREA, CHINA, TAIWAN, MEXICO, BRAZIL, CHILE-RIGHT 		- 1 Enquire
2 4K0941591CG
POWER MODULE FOR MAIN LIGHT ELECTRONICS 		- 2 Enquire
3 8S0941749
FILTER ELEMENT 		- 2 Enquire
4 5J0941141B
ADJUSTING SCREW 		- 1 Enquire
5 4ML941191
SEALING FRAME
LEFT 		- 1 Enquire
5 4ML941192
SEALING FRAME
RIGHT 		- 1 Enquire
6 4ML941475
HEAT DISSIPATOR 		- 1 Enquire
7 4ML941295
HEADLIGHT RANGE CONTROL MOTOR 		- 2 Enquire
8 4ML998030
1 SET BOLTS 		- 1 Enquire
11 4ML941717
BREATHER LINE
LEFT 		- 1 Enquire
11 4ML941718
BREATHER LINE
RIGHT 		- 1 Enquire
12 95B941627
CAP 		- 2 Enquire
13 N10554008
ROUND HD. SCREW
M6X35 		- 6 Enquire
14 N90684704
HEXAGON SOCKET HEAD BOLT (COMBI)
M6X20 		- 2 Enquire
14 N90993603
HEX SOCKET HEAD BOLT (COMBI)
M6X25 		- 2 Enquire
