Seat, Divided Front

Lamborghini Urus (2019-2022)

Illustration Number: 881.02.00

Find Your Part

Lamborghini Urus (2019-2022) - SEAT, DIVIDED FRONT (881.02.00)

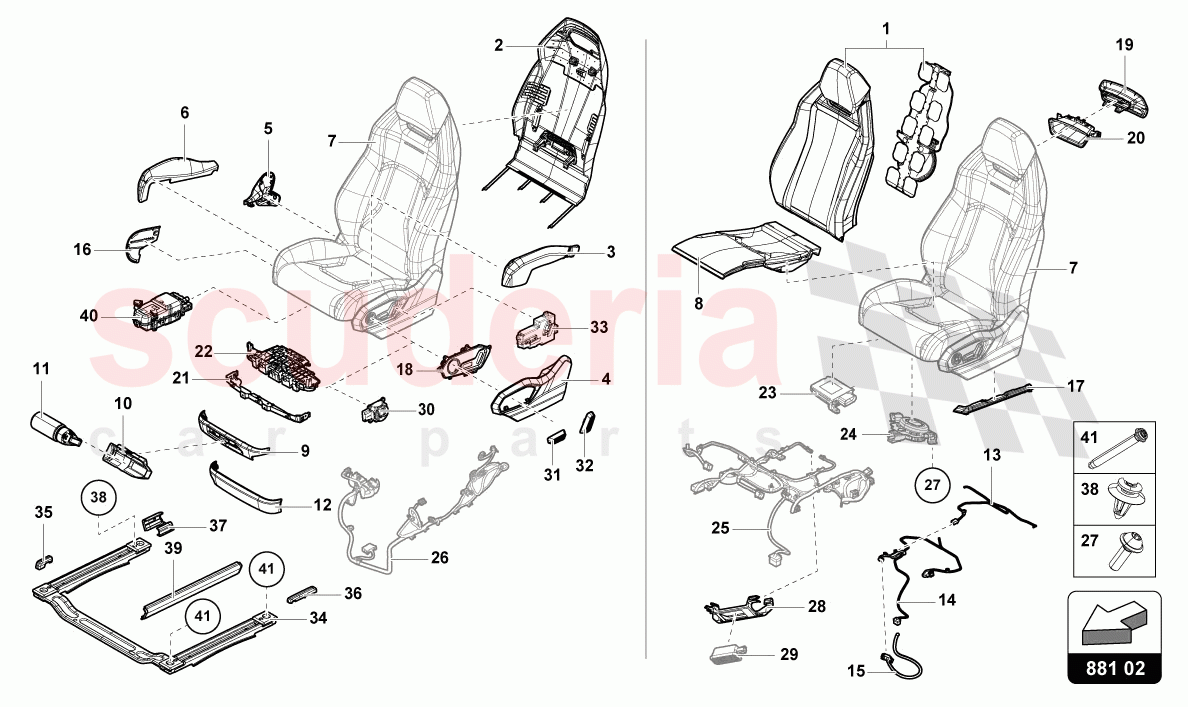

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4ML881969A REAR PANEL FOR BACKREST Enquire To Order
4ML881969G REAR PANEL FOR BACKREST Enquire To Order
4ML881969H REAR PANEL FOR BACKREST Enquire To Order
Photo Part No Description Price (each) Stock
4ML881325A SIDE PANEL TRIM Enquire To Order
4ML881326A SIDE PANEL TRIM Enquire To Order
Photo Part No Description Price (each) Stock
4ML8813276PS SIDE PANEL TRIM Enquire To Order
4ML8813277AP SIDE PANEL TRIM Enquire To Order
4ML8813287AP SIDE PANEL TRIM Enquire To Order
Photo Part No Description Price (each) Stock
4ML881794D TRIM Enquire To Order
Photo Part No Description Price (each) Stock
8E0860985 HOLDER FOR FIRE EXTINGUISHER Enquire To Order
Photo Part No Description Price (each) Stock
3D0860277 FIRE EXTINGUISHERS Enquire To Order
Photo Part No Description Price (each) Stock
4ML881793BQG8 TRIM Enquire To Order
Photo Part No Description Price (each) Stock
4ML963551A SEAT AND BACKREST HEATER ELEMENT Enquire To Order
4ML963551E SEAT AND BACKREST HEATER ELEMENT Enquire To Order
Photo Part No Description Price (each) Stock
4ML963555C SEAT AND BACKREST HEATER ELEMENT Enquire To Order
4ML963555J SEAT AND BACKREST HEATER ELEMENT Enquire To Order
4ML963555L SEAT AND BACKREST HEATER ELEMENT Enquire To Order
...and 4 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
4ML963549 HEATER ELEMENT-SEAT Enquire To Order
Photo Part No Description Price (each) Stock
4ML8817916PS TRIM Enquire To Order
4ML8817917AP TRIM Enquire To Order
4ML8817926PS TRIM Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
4M0881457B COVER FOR GUIDE RAIL Enquire To Order
Photo Part No Description Price (each) Stock
4ML8813176PS COVER PANEL Enquire To Order
4ML8813177AP COVER PANEL Enquire To Order
4ML8813186PS COVER PANEL Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
4ML8811536PS COVER Enquire To Order
4ML8811537AP COVER Enquire To Order
4ML881153A6PS COVER Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
4ML881152 COVER Enquire To Order
Photo Part No Description Price (each) Stock
4H0881537 HOLDER FOR FIRE EXTINGUISHER Enquire To Order
Photo Part No Description Price (each) Stock
4M0882775 TIE-BAR FOR SEAT ADJUSTMENT Enquire To Order
4M0882776 TIE-BAR FOR SEAT ADJUSTMENT Enquire To Order
4M0882776A TIE-BAR FOR SEAT ADJUSTMENT Enquire To Order
Photo Part No Description Price (each) Stock
4M0881547 HOLDER FOR LIGHT Enquire To Order
Photo Part No Description Price (each) Stock
4K0959777A SWITCH FOR LUMBAR SUPPORT ADJUSTMENT Enquire To Order
4K0959778A SWITCH FOR LUMBAR SUPPORT ADJUSTMENT Enquire To Order
4N0959777D SWITCH FOR LUMBAR SUPPORT ADJUSTMENT Enquire To Order
Photo Part No Description Price (each) Stock
4K0959815 SETTING KNOB Enquire To Order
4K0959816 SETTING KNOB Enquire To Order
85E959815 SETTING KNOB Enquire To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
4K0959817 SETTING KNOB Enquire To Order
4K0959818 SETTING KNOB Enquire To Order
85E959817 SETTING KNOB Enquire To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
4N0959747D SWITCH FOR SEAT ADJUSTMENT Enquire To Order
4N0959748D SWITCH FOR SEAT ADJUSTMENT Enquire To Order
85E959747A SWITCH FOR SEAT AND BACKREST ADJUSTMENT Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
4ML881677 SEAT FRAME Enquire To Order
Photo Part No Description Price (each) Stock
4M08813454PK COVER CAP Enquire To Order
Photo Part No Description Price (each) Stock
4M0881345A4PK COVER CAP Enquire To Order
Photo Part No Description Price (each) Stock
4M0881347A4PK COVER FOR GUIDE RAIL Enquire To Order
4M0881348A4PK COVER FOR GUIDE RAIL Enquire To Order
Photo Part No Description Price (each) Stock
4M0881280 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
4M08810974PK COVER FOR GUIDE RAIL Enquire To Order
4M08810984PK COVER FOR GUIDE RAIL Enquire To Order
Photo Part No Description Price (each) Stock
4M0881073A PUMP Enquire To Order
Photo Part No Description Price (each) Stock
N91236001 SCREW WITH INT. SERRATIONS Enquire To Order
View All
SEAT, DIVIDED FRONT of Lamborghini Lamborghini Urus (2019-2022) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
2 4ML881969A
REAR PANEL FOR BACKREST
SUPPLY VIN-REAR 		- 1 Enquire
2 4ML881969G
REAR PANEL FOR BACKREST
ALCANTARA - SUPPLY VIN-REAR 		- 1 Enquire
2 4ML881969H
REAR PANEL FOR BACKREST
ALCANTARA - Q-CITURA - SUPPLY VIN-REAR 		- 1 Enquire
4 4ML881325A
SIDE PANEL TRIM
SUPPLY VIN-LEFT 		- 1 Enquire
4 4ML881326A
SIDE PANEL TRIM
SUPPLY VIN-RIGHT 		- 1 Enquire
5 4ML8813276PS
SIDE PANEL TRIM
LEFT - NERO ADE-SOUL (BLACK) 		- 1 Enquire
5 4ML8813277AP
SIDE PANEL TRIM
LEFT - MARRONE ELPIS-TOFFEE BROWN 		- 1 Enquire
5 4ML8813287AP
SIDE PANEL TRIM
RIGHT - MARRONE ELPIS-TOFFEE BROWN 		- 1 Enquire
9 4ML881794D
TRIM
ONLY COMFORT SEAT - ONLY PASSENGER SIDE W/O FIRE ESTINGUISHER PREDISPOSITI ON - SUPPLY VIN - UNTIL VIN 2484 ORDER ALSO REF. 22 		- 1 Enquire
10 8E0860985
HOLDER FOR FIRE EXTINGUISHER
ONLY PASSENGER SIDE 		- 1 Enquire
11 3D0860277
FIRE EXTINGUISHERS
ONLY PASSENGER SIDE-1 -0KG 		- 1 Enquire
12 4ML881793BQG8
TRIM
ONLY DRIVER SIDE - UNTIL VIN 2484 ORDER ALSO REF. 22-BLACK 		- 1 Enquire
13 4ML963551A
SEAT AND BACKREST HEATER ELEMENT 		- 1 Enquire
13 4ML963551E
SEAT AND BACKREST HEATER ELEMENT 		- 1 Enquire
14 4ML963555C
SEAT AND BACKREST HEATER ELEMENT
HEATING IN FRONT AND REAR SEPARATELY CONTROLLED-LEFT 		- 1 Enquire
14 4ML963555J
SEAT AND BACKREST HEATER ELEMENT
HEATING AND MASSAGE-LEFT 		- 1 Enquire
14 4ML963555L
SEAT AND BACKREST HEATER ELEMENT
LEFT 		- 1 Enquire
14 4ML963556B
SEAT AND BACKREST HEATER ELEMENT
HEATING AND MASSAGE-RIGHT 		- 1 Enquire
14 4ML963556C
SEAT AND BACKREST HEATER ELEMENT
RIGHT 		- 1 Enquire
14 4ML963556E
SEAT AND BACKREST HEATER ELEMENT
HEATING IN FRONT AND REAR SEPARATELY CONTROLLED-RIGHT 		- 1 Enquire
14 4ML963555K
SEAT AND BACKREST HEATER ELEMENT
LEFT 		- 1 Enquire
15 4ML963549
HEATER ELEMENT-SEAT 		- 1 Enquire
16 4ML8817916PS
TRIM
LEFT-SOUL (BLACK) 		- 1 Enquire
16 4ML8817917AP
TRIM
BROWN-TOFFEE BROWN 		- 1 Enquire
16 4ML8817926PS
TRIM
RIGHT-SOUL (BLACK) 		- 1 Enquire
16 4ML8817927AP
TRIM
RIGHT-TOFFEE BROWN 		- 1 Enquire
17 4M0881457B
COVER FOR GUIDE RAIL 		- 1 Enquire
18 4ML8813176PS
COVER PANEL
LEFT - NERO ADE-SOUL (BLACK) 		- 1 Enquire
18 4ML8813177AP
COVER PANEL
LEFT - MARRONE ELPIS-TOFFEE BROWN 		- 1 Enquire
18 4ML8813186PS
COVER PANEL
RIGHT - NERO ADE-BLACK 		- 1 Enquire
18 4ML8813187AP
COVER PANEL
RIGHT - MARRONE ELPIS-TOFFEE BROWN 		- 1 Enquire
19 4ML8811536PS
COVER
MULTIMEDIA FOR EXTERNAL USE-SOUL (BLACK) 		- 1 Enquire
19 4ML8811537AP
COVER
MULTIMEDIA FOR EXTERNAL USE-TOFFEE BROWN 		- 1 Enquire
19 4ML881153A6PS
COVER
WITHOUT VIDE/DVD/ NOTEBOOK-SOUL (BLACK) 		- 1 Enquire
19 4ML881153A7AP
COVER
WITHOUT VIDE/DVD/ NOTEBOOK-TOFFEE BROWN 		- 1 Enquire
20 4ML881152
COVER 		- 1 Enquire
21 4H0881537
HOLDER FOR FIRE EXTINGUISHER
ONLY PASSENGER SIDE 		- 1 Enquire
22 4M0882775
TIE-BAR FOR SEAT ADJUSTMENT
LEFT 		- 1 Enquire
22 4M0882776
TIE-BAR FOR SEAT ADJUSTMENT
ONLY PASSENGER SIDE - W/O FIRE ESTINGUISHER-RIGHT 		- 1 Enquire
22 4M0882776A
TIE-BAR FOR SEAT ADJUSTMENT
ONLY PASSENGER SIDE - WITH FIRE ESTINGUISHER-RIGHT 		- 1 Enquire
28 4M0881547
HOLDER FOR LIGHT 		- 1 Enquire
30 4K0959777A
SWITCH FOR LUMBAR SUPPORT ADJUSTMENT
SEATS WITH VENTILATION AND MASSAGE-LEFT 		- 1 Enquire
30 4K0959778A
SWITCH FOR LUMBAR SUPPORT ADJUSTMENT
SEATS WITH VENTILATION AND MASSAGE-RIGHT 		- 1 Enquire
30 4N0959777D
SWITCH FOR LUMBAR SUPPORT ADJUSTMENT
SEATS W/O VENTILATION AND MASSAGE-LEFT A. RIGHT 		- 2 Enquire
31 4K0959815
SETTING KNOB
LEFT 		- 1 Enquire
31 4K0959816
SETTING KNOB
RIGHT 		- 1 Enquire
31 85E959815
SETTING KNOB 		- 1 Enquire
31 85E959815A
SETTING KNOB 		- 1 Enquire
31 85E959816
SETTING KNOB 		- 1 Enquire
31 85E959816A
SETTING KNOB 		- 1 Enquire
32 4K0959817
SETTING KNOB
LEFT 		- 1 Enquire
32 4K0959818
SETTING KNOB
RIGHT 		- 1 Enquire
32 85E959817
SETTING KNOB
LEFT 		- 1 Enquire
32 85E959817A
SETTING KNOB
LEFT 		- 1 Enquire
32 85E959818
SETTING KNOB
RIGHT 		- 1 Enquire
32 85E959818A
SETTING KNOB 		- 1 Enquire
33 4N0959747D
SWITCH FOR SEAT ADJUSTMENT
LEFT 		- 1 Enquire
33 4N0959748D
SWITCH FOR SEAT ADJUSTMENT
RIGHT 		- 1 Enquire
33 85E959747A
SWITCH FOR SEAT AND BACKREST ADJUSTMENT
LEFT 		- 1 Enquire
33 85E959748A
SWITCH FOR SEAT AND BACKREST ADJUSTMENT
RIGHT 		- 1 Enquire
34 4ML881677
SEAT FRAME 		- 2 Enquire
35 4M08813454PK
COVER CAP
FRONT-SOUL (BLACK) 		- 4 Enquire
36 4M0881345A4PK
COVER CAP
REAR-SOUL (BLACK) 		- 4 Enquire
37 4M0881347A4PK
COVER FOR GUIDE RAIL
LEFT-SOUL (BLACK) 		- 4 Enquire
37 4M0881348A4PK
COVER FOR GUIDE RAIL
RIGHT-SOUL (BLACK) 		- 4 Enquire
38 4M0881280
CLIP 		- 2 Enquire
39 4M08810974PK
COVER FOR GUIDE RAIL
CENTER LOWER - LEFT-SOUL (BLACK) 		- 1 Enquire
39 4M08810984PK
COVER FOR GUIDE RAIL
CENTER LOWER - RIGHT-SOUL (BLACK) 		- 1 Enquire
40 4M0881073A
PUMP
FOR MASSAGE FUNCTION - ONLY FOR COMFORT SEAT-LEFT A. RIGHT 		- 2 Enquire
41 N91236001
SCREW WITH INT. SERRATIONS
M10X80 		- 8 Enquire
