INSTRUMENT PANEL of Lamborghini Lamborghini Urus (2019-2022)

View All

Lamborghini Urus (2019-2022) - INSTRUMENT PANEL (857.07.00)

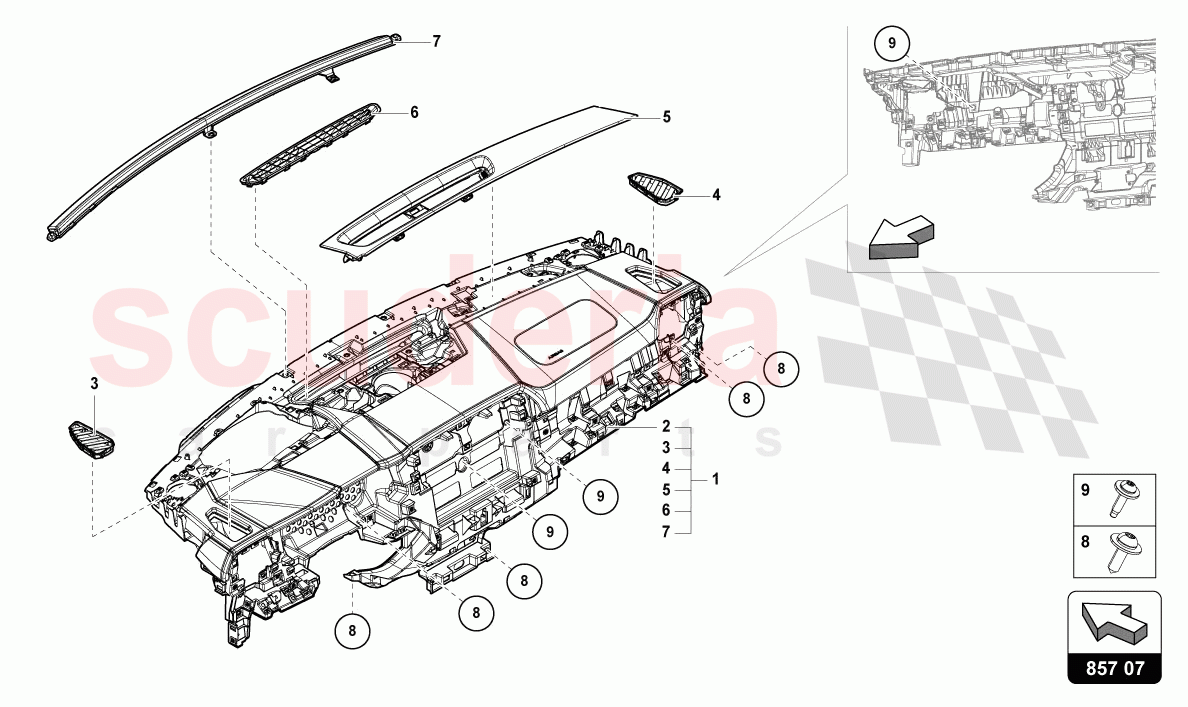

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4ML857001KSBE	DASHBOARD	Enquire	To Order
	4ML857001KSBF	DASHBOARD	Enquire	To Order
	4ML857001KSBH	DASHBOARD	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4ML857003MKF3	DASHBOARD	Enquire	To Order
	4ML857003MQG8	DASHBOARD	Enquire	To Order
	4ML857003MQH9	DASHBOARD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4ML8197936PS	AIR INTAKE GRILLE	Enquire	To Order
	4ML8197937AP	AIR INTAKE GRILLE	Enquire	To Order
	4ML857003NKF3	DASHBOARD	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4ML8197946PS	AIR INTAKE GRILLE	Enquire	To Order
	4ML8197947AP	AIR INTAKE GRILLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4ML857009D14X	DASHBOARD	Enquire	To Order
	4ML857009DHQ3	DASHBOARD	Enquire	To Order
	4ML857009DJR7	DASHBOARD	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4M88196326PS	AIR VENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4ML8583456PS	COVER	Enquire	To Order
	4ML8583457AP	COVER	Enquire	To Order
	4ML858345A6PS	COVER	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	N10738101	HEX SOCKET HEAD BOLT (COMBI)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10473203	HEXAGON SOCKET OVAL HEAD BOLT (COMBI)	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4ML857001KSBE	DASHBOARD	4ML857001KSBE DASHBOARD ADE - LHD - SUPPLY VIN-BLACK	-	1	Enquire
1	4ML857001KSBF	DASHBOARD	4ML857001KSBF DASHBOARD ELPIS - LHD - SUPPLY VIN-MAROON	-	1	Enquire
1	4ML857001KSBH	DASHBOARD	4ML857001KSBH DASHBOARD OCTANS - LHD - SUPPLY VIN-GREY	-	1	Enquire
1	4ML857001LSBE	DASHBOARD	4ML857001LSBE DASHBOARD ADE - RHD -. SUPPLY VIN-BLACK	-	1	Enquire
1	4ML857001LSBF	DASHBOARD	4ML857001LSBF DASHBOARD ELPIS - RHD - SUPPLY VIN-MAROON	-	1	Enquire
1	4ML857001LSBH	DASHBOARD	4ML857001LSBH DASHBOARD OCTANS - RHD - SUPPLY VIN-GREY	-	1	Enquire
2	4ML857003MKF3	DASHBOARD	4ML857003MKF3 DASHBOARD L0L-GREY	-	1	Enquire
2	4ML857003MQG8	DASHBOARD	4ML857003MQG8 DASHBOARD ADE - L0L-BLACK	-	1	Enquire
2	4ML857003MQH9	DASHBOARD	4ML857003MQH9 DASHBOARD ELPIS - L0L-TOFFEE BROWN	-	1	Enquire
3	4ML8197936PS	AIR INTAKE GRILLE	4ML8197936PS AIR INTAKE GRILLE 98 - SUPPLY VIN-SOUL	-	1	Enquire
3	4ML8197937AP	AIR INTAKE GRILLE	4ML8197937AP AIR INTAKE GRILLE ELPIS - SUPPLY VIN-TOFFEE BROWN	-	1	Enquire
3	4ML857003NKF3	DASHBOARD	4ML857003NKF3 DASHBOARD GREY - RHD SUPPLY VIN-GREY	-	1	Enquire
3	4ML857003NQG8	DASHBOARD	4ML857003NQG8 DASHBOARD ADE - RHD SUPPLY VIN-BLACK	-	1	Enquire
3	4ML857003NQH9	DASHBOARD	4ML857003NQH9 DASHBOARD ELPIS - RHD SUPPLY VIN-TOFFEE BROWN	-	1	Enquire
4	4ML8197946PS	AIR INTAKE GRILLE	4ML8197946PS AIR INTAKE GRILLE 98 - SUPPLY VIN-SOUL	-	1	Enquire
4	4ML8197947AP	AIR INTAKE GRILLE	4ML8197947AP AIR INTAKE GRILLE ELPIS - SUPPLY VIN-TOFFEE BROWN	-	1	Enquire
5	4ML857009D14X	DASHBOARD	4ML857009D14X DASHBOARD OCTANS - L0L-GREY	-	1	Enquire
5	4ML857009DHQ3	DASHBOARD	4ML857009DHQ3 DASHBOARD ELPIS - LHD-TOFFEE BROWN	-	1	Enquire
5	4ML857009DJR7	DASHBOARD	4ML857009DJR7 DASHBOARD ADE - LHD-BLACK	-	1	Enquire
5	4ML857009E	DASHBOARD	4ML857009E DASHBOARD RHD	-	1	Enquire
5	4ML857009E14X	DASHBOARD	4ML857009E14X DASHBOARD OCTANS - RHD-GREY	-	1	Enquire
5	4ML857009EHQ3	DASHBOARD	4ML857009EHQ3 DASHBOARD ELPIS - RHD-TOFFEE BROWN	-	1	Enquire
5	4ML857009EJR7	DASHBOARD	4ML857009EJR7 DASHBOARD ADE - RHD-BLACK	-	1	Enquire
5	4ML857009JQG8	DASHBOARD	4ML857009JQG8 DASHBOARD RHD - LEATHER - NERO ADE-BLACK	-	1	Enquire
6	4M88196326PS	AIR VENT	4M88196326PS AIR VENT 98 - SUPPLY VIN - LHD-SOUL (BLACK)	-	1	Enquire
7	4ML8583456PS	COVER	4ML8583456PS COVER 98 - SUPPLY VIN - LHD-SOUL	-	1	Enquire
7	4ML8583457AP	COVER	4ML8583457AP COVER ELPIS - SUPPLY VIN - LHD-TOFFEE BROWN	-	1	Enquire
7	4ML858345A6PS	COVER	4ML858345A6PS COVER 98 - SUPPLY VIN - RHD-SOUL	-	1	Enquire
7	4ML858345A7AP	COVER	4ML858345A7AP COVER ELPIS - SUPPLY VIN - RHD-TOFFEE BROWN	-	1	Enquire
8	N10738101	HEX SOCKET HEAD BOLT (COMBI)	N10738101 HEX SOCKET HEAD BOLT (COMBI) M5X16	-	9	Enquire
9	N10473203	HEXAGON SOCKET OVAL HEAD BOLT (COMBI)	N10473203 HEXAGON SOCKET OVAL HEAD BOLT (COMBI) M5X20 BLACK	-	4	Enquire
