UNDERBODY FRONT of Lamborghini Lamborghini Urus (2019-2022)

View All

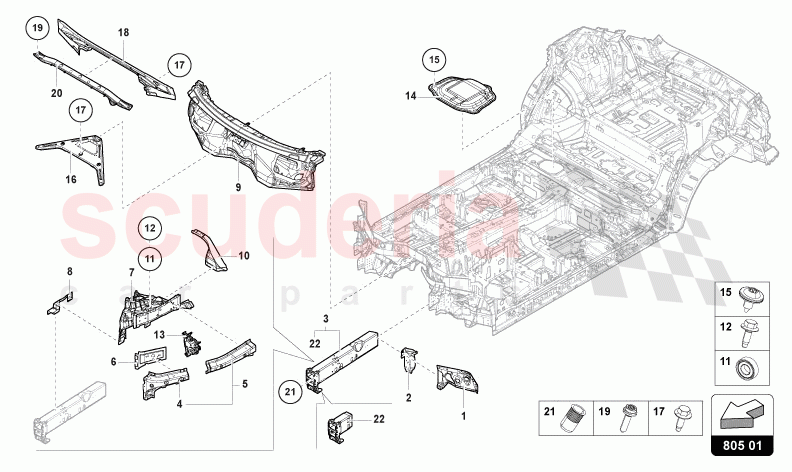

Lamborghini Urus (2019-2022) - UNDERBODY FRONT (805.01.00)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4M0805263E	WHEEL HOUSING LENGTH EXTENSION	Enquire	To Order
	4M0805264F	WHEEL HOUSING LENGTH EXTENSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0805381F	CLOSING ELEMENT	Enquire	To Order
	4M0805382G	CLOSING ELEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0805109H	SIDE MEMBER	Enquire	To Order
	4M0805110M	SIDE MEMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0805355D	CONNECTING PLATE	Enquire	To Order
	4M0805356D	CONNECTING PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0805157G	CONNECTING PLATE	Enquire	To Order
	4M0805158G	CONNECTING PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0805531	SUPPORT	Enquire	To Order
	4M0805538C	SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0805151D	SUSPENSION STRUT DOME COVER	Enquire	To Order
	4M0805152	SUSPENSION STRUT DOME COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0805463A	SUPPORT	Enquire	To Order
	4M0805464A	SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4ML805431C	CROSS PANEL WITH SCUTTLE	Enquire	To Order
	4ML805431A	CROSS PANEL WITH SCUTTLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0806269A	REINFORCEMENT F. PLEN. CHAMBER	Enquire	To Order
	4M0806270A	REINFORCEMENT F. PLEN. CHAMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT007690	PROTECTIVE DISC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91033301	HEXAGON HEAD BOLT (COMBI)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0821577C	NOISE INSULATION PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0805778B	COVER FOR SENDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT005348	OVAL HEXAGON SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0806303F	CROSS SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N0195308	HEX COLLARED BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0806391C	ADAPTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10665001	FLAT HEAD MULTI-POINT SOCKET BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0805645B	ADDITIONAL REINFORCEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90737502	BLIND RIVET STUD	Enquire	To Order
	N90856801	RIVETTED CAP NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0805109G	SECTIONAL PART - SIDE MEMBER	Enquire	To Order
	4M0805110K	SECTIONAL PART - SIDE MEMBER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4M0805263E	WHEEL HOUSING LENGTH EXTENSION	4M0805263E WHEEL HOUSING LENGTH EXTENSION LEFT	-	1	Enquire
1	4M0805264F	WHEEL HOUSING LENGTH EXTENSION	4M0805264F WHEEL HOUSING LENGTH EXTENSION RIGHT	-	1	Enquire
2	4M0805381F	CLOSING ELEMENT	4M0805381F CLOSING ELEMENT LEFT	-	1	Enquire
2	4M0805382G	CLOSING ELEMENT	4M0805382G CLOSING ELEMENT RIGHT	-	1	Enquire
3	4M0805109H	SIDE MEMBER	4M0805109H SIDE MEMBER LEFT FRONT	-	1	Enquire
3	4M0805110M	SIDE MEMBER	4M0805110M SIDE MEMBER RIGHT FRONT	-	1	Enquire
4	4M0805355D	CONNECTING PLATE	4M0805355D CONNECTING PLATE LEFT FRONT	-	1	Enquire
4	4M0805356D	CONNECTING PLATE	4M0805356D CONNECTING PLATE RIGHT FRONT	-	1	Enquire
5	4M0805157G	CONNECTING PLATE	4M0805157G CONNECTING PLATE LEFT UPPER	-	1	Enquire
5	4M0805158G	CONNECTING PLATE	4M0805158G CONNECTING PLATE RIGHT UPPER	-	1	Enquire
6	4M0805531	SUPPORT	4M0805531 SUPPORT LEFT	-	1	Enquire
6	4M0805538C	SUPPORT	4M0805538C SUPPORT RIGHT	-	1	Enquire
7	4M0805151D	SUSPENSION STRUT DOME COVER	4M0805151D SUSPENSION STRUT DOME COVER LEFT	-	1	Enquire
7	4M0805152	SUSPENSION STRUT DOME COVER	4M0805152 SUSPENSION STRUT DOME COVER RIGHT	-	1	Enquire
8	4M0805463A	SUPPORT	4M0805463A SUPPORT LEFT	-	1	Enquire
8	4M0805464A	SUPPORT	4M0805464A SUPPORT RIGHT	-	1	Enquire
9	4ML805431C	CROSS PANEL WITH SCUTTLE	4ML805431C CROSS PANEL WITH SCUTTLE LHD	-	1	Enquire
9	4ML805431A	CROSS PANEL WITH SCUTTLE	4ML805431A CROSS PANEL WITH SCUTTLE	-	1	Enquire
10	4M0806269A	REINFORCEMENT F. PLEN. CHAMBER	4M0806269A REINFORCEMENT F. PLEN. CHAMBER LEFT LOWER	-	1	Enquire
10	4M0806270A	REINFORCEMENT F. PLEN. CHAMBER	4M0806270A REINFORCEMENT F. PLEN. CHAMBER RIGHT LOWER	-	1	Enquire
11	WHT007690	PROTECTIVE DISC	WHT007690 PROTECTIVE DISC	-	2	Enquire
12	N91033301	HEXAGON HEAD BOLT (COMBI)	N91033301 HEXAGON HEAD BOLT (COMBI) M8X22	-	2	Enquire
13	4M0821577C	NOISE INSULATION PLATE	4M0821577C NOISE INSULATION PLATE LEFT A. RIGHT	-	1	Enquire
14	4M0805778B	COVER FOR SENDER	4M0805778B COVER FOR SENDER	-	1	Enquire
15	WHT005348	OVAL HEXAGON SOCKET HEAD BOLT	WHT005348 OVAL HEXAGON SOCKET HEAD BOLT	-	3	Enquire
16	4M0806303F	CROSS SUPPORT	4M0806303F CROSS SUPPORT	-	1	Enquire
17	N0195308	HEX COLLARED BOLT	N0195308 HEX COLLARED BOLT M8X25	-	8	Enquire
18	4M0806391C	ADAPTER	4M0806391C ADAPTER	-	1	Enquire
19	N10665001	FLAT HEAD MULTI-POINT SOCKET BOLT	N10665001 FLAT HEAD MULTI-POINT SOCKET BOLT M8X30	-	4	Enquire
20	4M0805645B	ADDITIONAL REINFORCEMENT	4M0805645B ADDITIONAL REINFORCEMENT	-	1	Enquire
21	N90737502	BLIND RIVET STUD	N90737502 BLIND RIVET STUD RIGHT SIDE-M8X14	-	1	Enquire
21	N90856801	RIVETTED CAP NUT	N90856801 RIVETTED CAP NUT LEFT SIDE	-	1	Enquire
22	4M0805109G	SECTIONAL PART - SIDE MEMBER	4M0805109G SECTIONAL PART - SIDE MEMBER LEFT FRONT	-	1	Enquire
22	4M0805110K	SECTIONAL PART - SIDE MEMBER	4M0805110K SECTIONAL PART - SIDE MEMBER RIGHT FRONT	-	1	Enquire

UNDERBODY FRONT (805.01.00)

SUPPORT FOR COOLANT RADIATOR (805.02.00)

SUPPORT FOR COOLANT RADIATOR (805.03.00)

Haven't found what you're looking for?

Original Parts Tuning Parts Need help? Call us

View Cart / Checkout

Underbody Front

Lamborghini Urus (2019-2022)

Illustration Number: 805.01.00

Lamborghini Urus (2019-2022) - UNDERBODY FRONT (805.01.00)
