1 Set Fuel Pipes

Lamborghini Urus (2019-2022)

Illustration Number: 201.02.00

Find Your Part

Lamborghini Urus (2019-2022) - 1 SET FUEL PIPES (201.02.00)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4M0201544BD 1 SET FUEL PIPES Enquire To Order
4M0201544BK 1 SET FUEL PIPES Enquire To Order
4M0201544BK 1 SET FUEL PIPES Enquire To Order
Photo Part No Description Price (each) Stock
4D0201449D SECURING CLIP Enquire To Order
4M0201449F SECURING CLIP Enquire To Order
Photo Part No Description Price (each) Stock
4D0201245G PROTECTIVE PROFILE Enquire To Order
Photo Part No Description Price (each) Stock
4M0201190C SECURING CLIP Enquire To Order
Photo Part No Description Price (each) Stock
4M0201196F SEAL Enquire To Order
Photo Part No Description Price (each) Stock
WHT008695 SHOULDERED BOLT Enquire To Order
Photo Part No Description Price (each) Stock
4M0201192K COVER Enquire To Order
Photo Part No Description Price (each) Stock
N10737001 HEXAGON NUT, SELF-LOCKING Enquire To Order
Photo Part No Description Price (each) Stock
4M0201994AR BREATHER LINE Enquire To Order
Photo Part No Description Price (each) Stock
N90926401 SPRING BAND CLAMP Enquire To Order
Photo Part No Description Price (each) Stock
4B0422379 SPRING BAND CLAMP Enquire To Order
Photo Part No Description Price (each) Stock
N10843101 SECURING CLIP Enquire To Order
N10857701 SECURING CLIP Enquire To Order
Photo Part No Description Price (each) Stock
4F0611853A SPACER RING Enquire To Order
Photo Part No Description Price (each) Stock
4M0201215Q FUEL HOSE Enquire To Order
Photo Part No Description Price (each) Stock
4M0201196G SEAL Enquire To Order
Photo Part No Description Price (each) Stock
4M0201196N SEAL Enquire To Order
View All

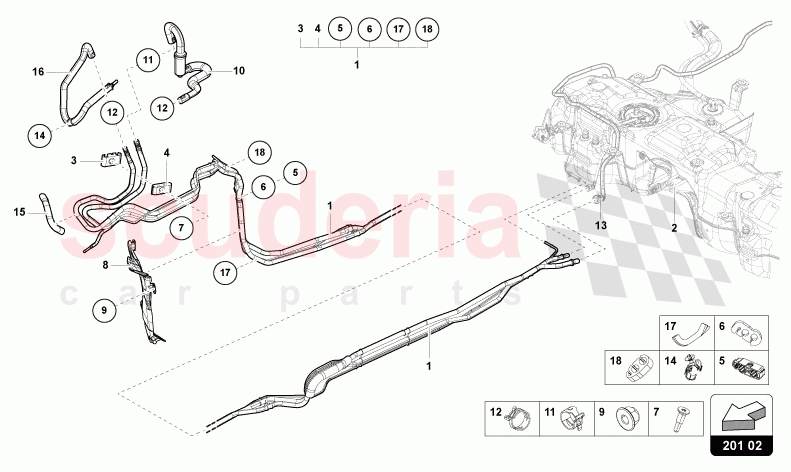

1 SET FUEL PIPES of Lamborghini Lamborghini Urus (2019-2022) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 4M0201544BD
1 SET FUEL PIPES
W/O AUXILIARY HEATER 		- 1 Enquire
1 4M0201544BK
1 SET FUEL PIPES
WITH AUXILIARY HEATER 		- 1 Enquire
1 4M0201544BK
1 SET FUEL PIPES
WITH AUXILIARY HEATER - NOT FOR SOUTH KOREA 		- 1 Enquire
3 4D0201449D
SECURING CLIP
W/O AUXILIARY HEATER 		- 1 Enquire
3 4M0201449F
SECURING CLIP
WITH AUXILIARY HEATER - NOT FOR SOUTH KOREA 		- 1 Enquire
4 4D0201245G
PROTECTIVE PROFILE
12MM 		- 1 Enquire
5 4M0201190C
SECURING CLIP 		- 8 Enquire
6 4M0201196F
SEAL 		- 1 Enquire
7 WHT008695
SHOULDERED BOLT
M6X12 -5 		- 1 Enquire
8 4M0201192K
COVER 		- 1 Enquire
9 N10737001
HEXAGON NUT, SELF-LOCKING
M6 		- 4 Enquire
10 4M0201994AR
BREATHER LINE
EU6 BG 		- 1 Enquire
11 N90926401
SPRING BAND CLAMP
19X12 		- 1 Enquire
12 4B0422379
SPRING BAND CLAMP
16X12 		- 2 Enquire
14 N10843101
SECURING CLIP
A14-17XC12-6 -5 		- 1 Enquire
14 N10857701
SECURING CLIP
ONLY FOR OPF - CHINA-A14-17XC12-6.5 		- 1 Enquire
15 4F0611853A
SPACER RING
10 -5X6X50 		- 2 Enquire
16 4M0201215Q
FUEL HOSE
EU6 PLUS-FEED 		- 1 Enquire
17 4M0201196G
SEAL 		- 1 Enquire
18 4M0201196N
SEAL
3 POINT 		- 2 Enquire
