Find Your Part

View All

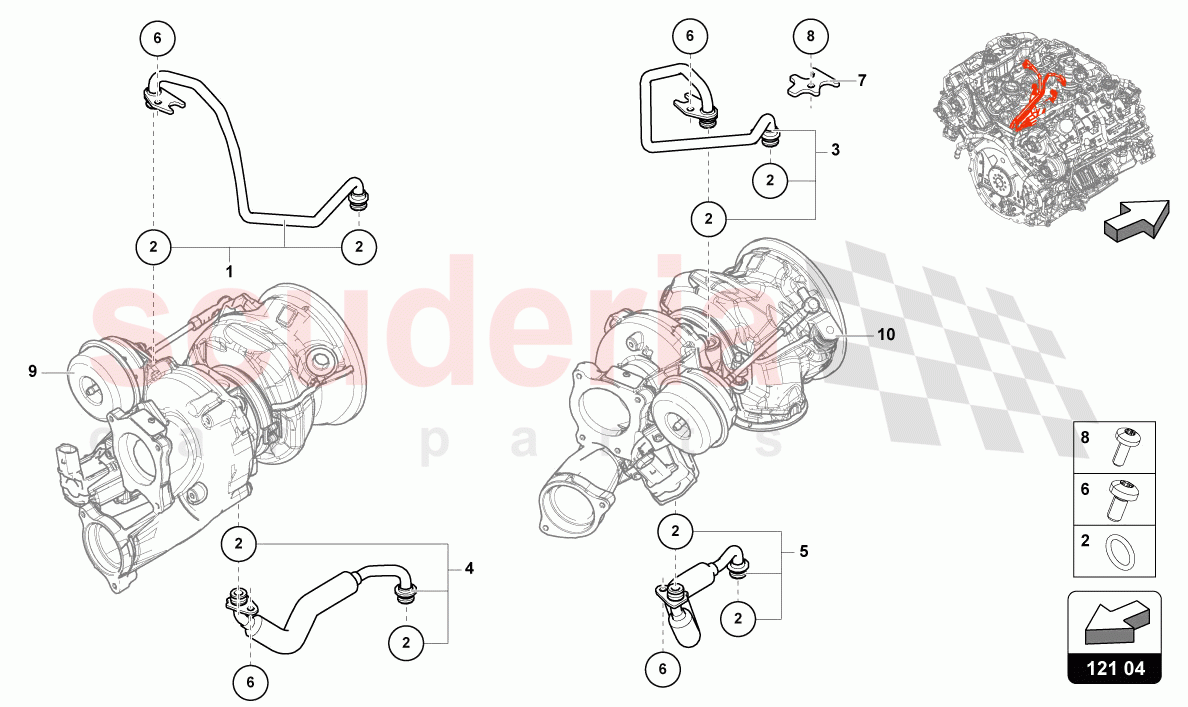

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	P2145948	COOLANT PIPE	$76.08	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT006537	O-RING	$4.95	To Order

Photo	Part No	Description	Price (each)	Stock
	P2145947	COOLANT PIPE	$76.08	To Order

Photo	Part No	Description	Price (each)	Stock
	P2145910B	COOLANT HOSE	$131.31	To Order

Photo	Part No	Description	Price (each)	Stock
	P2145909A	COOLANT HOSE	$131.31	To Order

Photo	Part No	Description	Price (each)	Stock
	N10335206	HEXAGON SOCKET FLAT HEAD BOLT	$1.43	To Order

Photo	Part No	Description	Price (each)	Stock
	P2145337	SECURING PLATE	$3.64	To Order

Photo	Part No	Description	Price (each)	Stock
	N91126601	OVAL HEXAGON SOCKET HEAD BOLT	$0.77	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	P2145948	COOLANT PIPE	P2145948 COOLANT PIPE SIDE - RIGHT RETURN	$76.08	1
2	WHT006537	O-RING	WHT006537 O-RING	$4.95	8
3	P2145947	COOLANT PIPE	P2145947 COOLANT PIPE SIDE - LEFT RETURN	$76.08	1
4	P2145910B	COOLANT HOSE	P2145910B COOLANT HOSE SIDE - RIGHT FEED	$131.31	1
5	P2145909A	COOLANT HOSE	P2145909A COOLANT HOSE SIDE - LEFT FEED	$131.31	1
6	N10335206	HEXAGON SOCKET FLAT HEAD BOLT	N10335206 HEXAGON SOCKET FLAT HEAD BOLT M6X12	$1.43	4
7	P2145337	SECURING PLATE	P2145337 SECURING PLATE	$3.64	1
8	N91126601	OVAL HEXAGON SOCKET HEAD BOLT	N91126601 OVAL HEXAGON SOCKET HEAD BOLT M6X16	$0.77 MSRP: ~~7.30~~ (89.5% off)	1
