Oil Filter Element

Lamborghini Urus (2019-2022)

Illustration Number: 115.01.00

Find Your Part

Lamborghini Urus (2019-2022) - OIL FILTER ELEMENT (115.01.00)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
6M115401L FILTER HOUSING Enquire To Order
Photo Part No Description Price (each) Stock
6M115311E COVER FOR OIL FILTER Enquire To Order
Photo Part No Description Price (each) Stock
6M198405F FILTER ELEMENT WITH GASKET Enquire To Order
Photo Part No Description Price (each) Stock
6M115331A O-RING Enquire To Order
Photo Part No Description Price (each) Stock
6M103175C NON-RETURN VALVE Enquire To Order
Photo Part No Description Price (each) Stock
6M115441G SEAL Enquire To Order
Photo Part No Description Price (each) Stock
P2119275 HEAT SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
N10470703 ROUND HD. SCREW Enquire To Order
Photo Part No Description Price (each) Stock
79919525D TEMPERATURE SENSOR Enquire To Order
Photo Part No Description Price (each) Stock
WHT002287C O-RING Enquire To Order
Photo Part No Description Price (each) Stock
N10285505 SOCKET HEAD BOLT WITH INNER HEX ROUND HEAD Enquire To Order
Photo Part No Description Price (each) Stock
79919081D OIL PRESSURE SWITCH Enquire To Order
Photo Part No Description Price (each) Stock
P2115243C CONTROL VALVE Enquire To Order
Photo Part No Description Price (each) Stock
6E906054J PRESSURE SENSOR Enquire To Order
Photo Part No Description Price (each) Stock
P2117015 OIL COOLER Enquire To Order
Photo Part No Description Price (each) Stock
P2103161A GASKET FOR OIL COOLER Enquire To Order
Photo Part No Description Price (each) Stock
N10124306 HEXAGON SOCKET FLAT HEAD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
P2115609B TUBE FOR OIL DIPSTICK Enquire To Order
Photo Part No Description Price (each) Stock
34115427B O-RING Enquire To Order
Photo Part No Description Price (each) Stock
59115418A SEALING STUD Enquire To Order
Photo Part No Description Price (each) Stock
N90813802 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
N91126601 OVAL HEXAGON SOCKET HEAD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
N10285505 SOCKET HEAD BOLT WITH INNER HEX ROUND HEAD Enquire To Order
View All

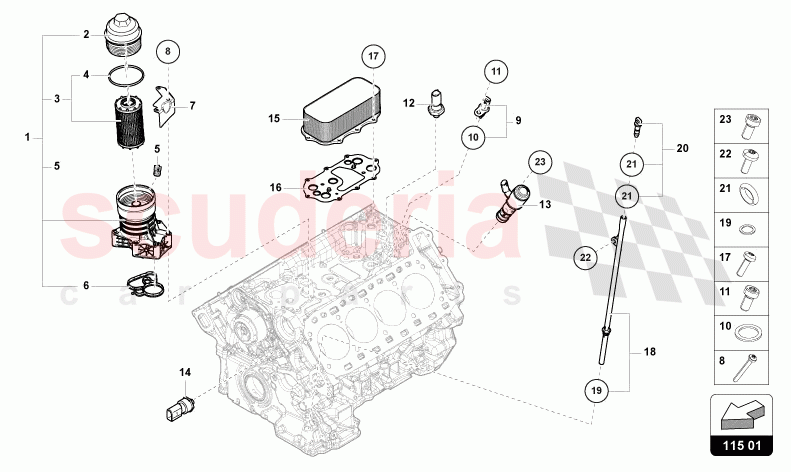

OIL FILTER ELEMENT of Lamborghini Lamborghini Urus (2019-2022) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 6M115401L
FILTER HOUSING 		- 1 Enquire
2 6M115311E
COVER FOR OIL FILTER 		- 1 Enquire
3 6M198405F
FILTER ELEMENT WITH GASKET 		- 1 Enquire
4 6M115331A
O-RING 		- 1 Enquire
5 6M103175C
NON-RETURN VALVE 		- 1 Enquire
6 6M115441G
SEAL 		- 1 Enquire
7 P2119275
HEAT SHIELD 		- 1 Enquire
8 N10470703
ROUND HD. SCREW
M6X50 		- 6 Enquire
9 79919525D
TEMPERATURE SENSOR 		- 1 Enquire
10 WHT002287C
O-RING
5 -6X2 		- 1 Enquire
11 N10285505
SOCKET HEAD BOLT WITH INNER HEX ROUND HEAD
M6X12 		- 2 Enquire
12 79919081D
OIL PRESSURE SWITCH
TURQUOISE(GR.) 0 -3-0,6BAR 1 PIN 		- 1 Enquire
13 P2115243C
CONTROL VALVE 		- 1 Enquire
14 6E906054J
PRESSURE SENSOR 		- 1 Enquire
15 P2117015
OIL COOLER
ORDER ALSO REF. 16 		- 1 Enquire
16 P2103161A
GASKET FOR OIL COOLER 		- 1 Enquire
17 N10124306
HEXAGON SOCKET FLAT HEAD BOLT
M6X20 		- 8 Enquire
18 P2115609B
TUBE FOR OIL DIPSTICK 		- 1 Enquire
19 34115427B
O-RING
12X2 		- 1 Enquire
20 59115418A
SEALING STUD 		- 1 Enquire
21 N90813802
O-RING
5X1 -9 		- 2 Enquire
22 N91126601
OVAL HEXAGON SOCKET HEAD BOLT
M6X16 		- 1 Enquire
23 N10285505
SOCKET HEAD BOLT WITH INNER HEX ROUND HEAD
M6X12 		- 1 Enquire
