Name: UNDERBODY TRIM
Rating: 4.6 (1 reviews)

View All

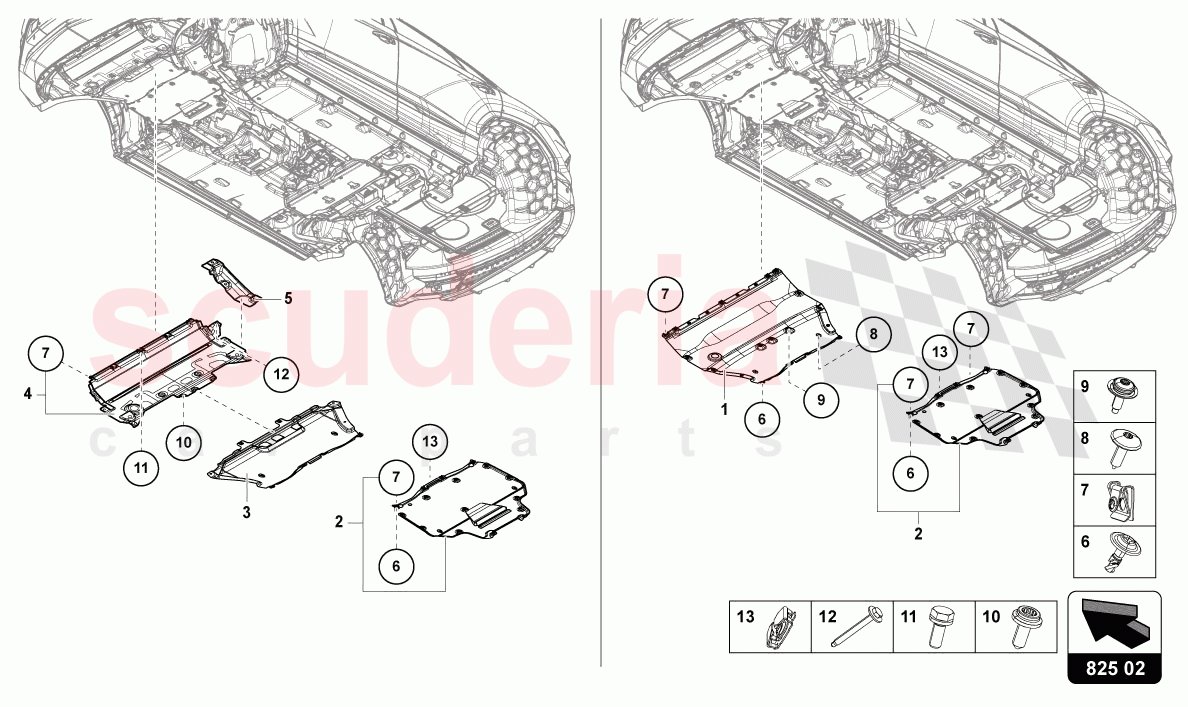

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4M0825235AQ	UNDERBODY TRIM	$231.17	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0825236AH	UNDERBODY TRIM	$501.18	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0825235AR	NOISE INSULATION	$245.96	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0801839D	UNDERBODY TRIM	$518.82	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT007698	HEXAGON SOCKET HEAD PANEL BOLT	$1.03	To Order

Photo	Part No	Description	Price (each)	Stock
	N91242501	CLAMPING NUT	$1.60	To Order

Photo	Part No	Description	Price (each)	Stock
	N90775001	HEXAGON SOCKET HEAD PANEL BOLT	$2.04	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT000729A	HEXAGON SOCKET HEAD BOLT, SELF-LOCKING	$2.69	To Order

Photo	Part No	Description	Price (each)	Stock
	N91194602	INT. SERRATION FLANGE SCREW	$1.34	To Order

Photo	Part No	Description	Price (each)	Stock
	N10082912	BOLT, HEX. HD. (COMBI.) SELF-LOCKING	$2.42	To Order

Photo	Part No	Description	Price (each)	Stock
	N10576702	HEXAGON HEAD BOLT (COMBI)	$3.16	To Order

Photo	Part No	Description	Price (each)	Stock
	4N0825429	CLIP	$0.76	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	4M0825235AQ	UNDERBODY TRIM	4M0825235AQ UNDERBODY TRIM FRONT	$231.17	1
2	4M0825236AH	UNDERBODY TRIM	4M0825236AH UNDERBODY TRIM	$501.18	1
3	4M0825235AR	NOISE INSULATION	4M0825235AR NOISE INSULATION FRONT	$245.96	1
4	4M0801839D	UNDERBODY TRIM	4M0801839D UNDERBODY TRIM DUNE PACK	$518.82	1
5	4M0825271A	COVER	4M0825271A COVER DUNE PACK-LEFT FRONT	$20.37	1
5	4M0825272A	COVER	4M0825272A COVER DUNE PACK-RIGHT FRONT	$20.37	1
6	WHT007698	HEXAGON SOCKET HEAD PANEL BOLT	WHT007698 HEXAGON SOCKET HEAD PANEL BOLT	$1.03	1
7	N91242501	CLAMPING NUT	N91242501 CLAMPING NUT ST4.8X22X18	$1.60	3
8	N90775001	HEXAGON SOCKET HEAD PANEL BOLT	N90775001 HEXAGON SOCKET HEAD PANEL BOLT 4 -8X16	$2.04	36
9	WHT000729A	HEXAGON SOCKET HEAD BOLT, SELF-LOCKING	WHT000729A HEXAGON SOCKET HEAD BOLT, SELF-LOCKING M6X20	$2.69	4
10	N91194602	INT. SERRATION FLANGE SCREW	N91194602 INT. SERRATION FLANGE SCREW M8X20	$1.34	5
11	N10082912	BOLT, HEX. HD. (COMBI.) SELF-LOCKING	N10082912 BOLT, HEX. HD. (COMBI.) SELF-LOCKING M6X16	$2.42	3
12	N10576702	HEXAGON HEAD BOLT (COMBI)	N10576702 HEXAGON HEAD BOLT (COMBI) M8X75	$3.16	2
13	4N0825429	CLIP	4N0825429 CLIP	$0.76	1
