Bumper, Complete Rear

Lamborghini Urus S

Illustration Number: 807.06.00

Find Your Part

Lamborghini Urus S - BUMPER, COMPLETE REAR (807.06.00)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4ML807305AGRU BUMPER COVER Enquire To Order
4ML807305GRU BUMPER COVER Enquire To Order
Photo Part No Description Price (each) Stock
4ML807453A Rear Left Bumper Bracket Enquire To Order
4ML807454A BUMPER COVER BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
4ML807393 GUIDE PROFILE Enquire To Order
4ML807394 GUIDE PROFILE Enquire To Order
Photo Part No Description Price (each) Stock
4ML807329 BUMPER CARRIER Enquire To Order
Photo Part No Description Price (each) Stock
4ML807458 GUIDE PROFILE Enquire To Order
Photo Part No Description Price (each) Stock
4ML807676 ORNAMENTAL GRILLE Enquire To Order
Photo Part No Description Price (each) Stock
4ML807245 COVER Enquire To Order
4ML807246 COVER Enquire To Order
4ML807449GRU COVER Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
4ML807941 SUPPORT STRUCTURE Enquire To Order
Photo Part No Description Price (each) Stock
4ML807568 REAR DIFFUSER Enquire To Order
4ML807568B REAR DIFFUSER Enquire To Order
4ML807568C REAR DIFFUSER Enquire To Order
...and 7 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
4ML807835 UNDERRUN BAR Enquire To Order
Photo Part No Description Price (each) Stock
4ML807045 SENSOR BRACKET Enquire To Order
4ML807046 SENSOR BRACKET Enquire To Order
4ML807231B SENSOR BRACKET Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
WHT005271 LOCATING BOLT Enquire To Order
Photo Part No Description Price (each) Stock
N10621301 EXPANDING NUT Enquire To Order
Photo Part No Description Price (each) Stock
WHT003954 HEXAGON SOCKET FLAT HEAD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
N10831601 HEXAGON HEAD BOLT (COMBI) Enquire To Order
Photo Part No Description Price (each) Stock
N91261601 HEXAGON NUT Enquire To Order
Photo Part No Description Price (each) Stock
WHT008180 HEXAGON FLANGE NUT, SELF-LOCKING Enquire To Order
Photo Part No Description Price (each) Stock
4ML807231 SENSOR BRACKET Enquire To Order
4ML807232 SENSOR BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
4ML807231AGRU SENSOR BRACKET Enquire To Order
4ML807232AGRU SENSOR BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
4ML807245A COVER Enquire To Order
4ML807246A COVER Enquire To Order
Photo Part No Description Price (each) Stock
4E0971847 CABLE TERMINAL Enquire To Order
Photo Part No Description Price (each) Stock
N91090701 OVAL SOCKET HEAD BOLT WITH HEX DRIVE Enquire To Order
View All

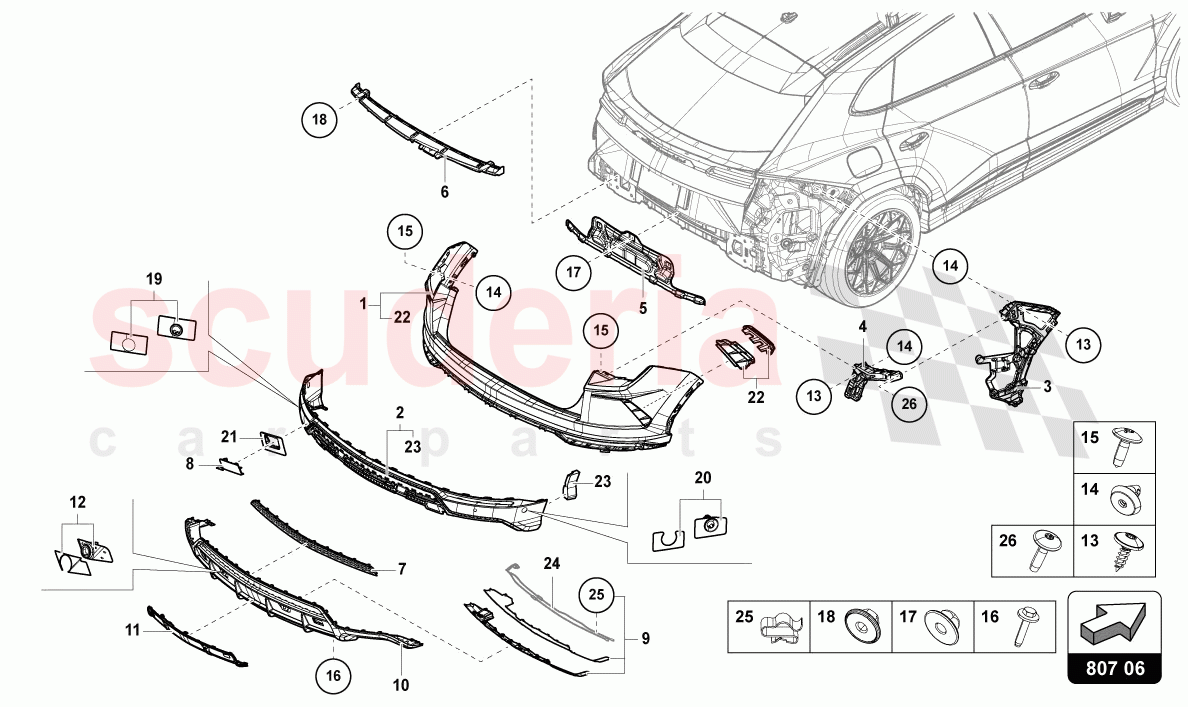

BUMPER, COMPLETE REAR of Lamborghini Lamborghini Urus S Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
2 4ML807305AGRU
BUMPER COVER
WITH LATERAL PARKING SENSORS-ALUMINIUM PRIMER 		- 1 Enquire
2 4ML807305GRU
BUMPER COVER
WITHOUT LATERAL PARKING SENSORS-ALUMINIUM PRIMER 		- 1 Enquire
3 4ML807453A
Rear Left Bumper Bracket
LEFT 		- 1 Enquire
3 4ML807454A
BUMPER COVER BRACKET
RIGHT 		- 1 Enquire
4 4ML807393
GUIDE PROFILE
LEFT 		- 1 Enquire
4 4ML807394
GUIDE PROFILE
RIGHT 		- 1 Enquire
5 4ML807329
BUMPER CARRIER
CENTER 		- 1 Enquire
6 4ML807458
GUIDE PROFILE
CENTER 		- 1 Enquire
7 4ML807676
ORNAMENTAL GRILLE 		- 1 Enquire
8 4ML807245
COVER
DUNE PACKAGE-LEFT 		- 1 Enquire
8 4ML807246
COVER
DUNE PACKAGE-RIGHT 		- 1 Enquire
8 4ML807449GRU
COVER
PRIMERED - LEFT-ALUMINIUM PRIMER 		- 1 Enquire
8 4ML807450GRU
COVER
PRIMERED - RIGHT-ALUMINIUM PRIMER 		- 1 Enquire
9 4ML807941
SUPPORT STRUCTURE
ONLY FOR STD VERSION - VIP SENSOR BRAKET WITH BIADESIVE 		- 1 Enquire
10 4ML807568
REAR DIFFUSER
STD - BARCELONETA GREY 		- 1 Enquire
10 4ML807568B
REAR DIFFUSER
MECHANIC TRAILER HOOK - BARCELONETA GREY 		- 1 Enquire
10 4ML807568C
REAR DIFFUSER
DUNE VERSION - BLACK MATT 		- 1 Enquire
10 4ML807568D
REAR DIFFUSER
STD - SHINY BLACK 		- 1 Enquire
10 4ML807568F
REAR DIFFUSER
MECHANIC TRAILER HOOK - SHINY BLACK 		- 1 Enquire
10 4ML807568G
REAR DIFFUSER
STD - MATT BLACK 		- 1 Enquire
10 4ML807568J
REAR DIFFUSER
MECHANIC TRAILER HOOK - MATT BLACK 		- 1 Enquire
10 4ML807568A
REAR DIFFUSER
ELECTRIC TRAILER HOOK - BARCELONETA GREY 		- 1 Enquire
10 4ML807568E
REAR DIFFUSER
ELECTRIC TRAILER HOOK - SHINY BLACK 		- 1 Enquire
10 4ML807568H
REAR DIFFUSER
ELECTRIC TRAILER HOOK - MATT BLACK 		-   Enquire
11 4ML807835
UNDERRUN BAR
ONLY FOR DUNE PACKAGE VERSION 		- 1 Enquire
12 4ML807045
SENSOR BRACKET
DUNE PACKAGE-LEFT 		- 1 Enquire
12 4ML807046
SENSOR BRACKET
DUNE PACKAGE-RIGHT 		- 1 Enquire
12 4ML807231B
SENSOR BRACKET
LEFT 		- 1 Enquire
12 4ML807232B
SENSOR BRACKET
RIGHT 		- 1 Enquire
13 WHT005271
LOCATING BOLT
TP5X5 -9X16-F 		- 18 Enquire
14 N10621301
EXPANDING NUT
5X13 -2 		- 18 Enquire
15 WHT003954
HEXAGON SOCKET FLAT HEAD BOLT
5X16 		- 10 Enquire
16 N10831601
HEXAGON HEAD BOLT (COMBI)
M5X25 		- 6 Enquire
17 N91261601
HEXAGON NUT
M6 		- 1 Enquire
18 WHT008180
HEXAGON FLANGE NUT, SELF-LOCKING
M6 		- 2 Enquire
19 4ML807231
SENSOR BRACKET
LEFT 		- 1 Enquire
19 4ML807232
SENSOR BRACKET
RIGHT 		- 1 Enquire
20 4ML807231AGRU
SENSOR BRACKET
LEFT-ALUMINIUM PRIMER 		- 1 Enquire
20 4ML807232AGRU
SENSOR BRACKET
RIGHT-ALUMINIUM PRIMER 		- 1 Enquire
21 4ML807245A
COVER
DUNE PACKAGE-LEFT 		- 1 Enquire
21 4ML807246A
COVER
DUNE PACKAGE-RIGHT 		- 1 Enquire
25 4E0971847
CABLE TERMINAL 		- 17 Enquire
26 N91090701
OVAL SOCKET HEAD BOLT WITH HEX DRIVE
5X20 		- 2 Enquire
