SUPPORT FOR COOLANT RADIATOR of Lamborghini Lamborghini Urus S

View All

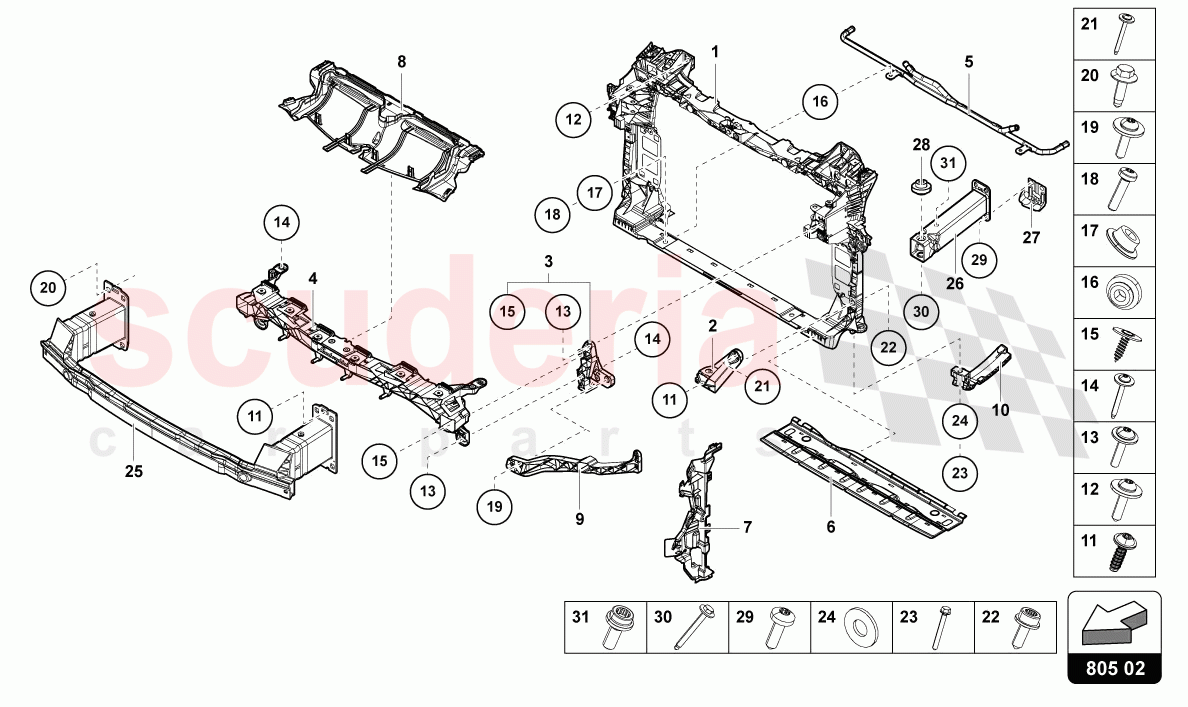

Lamborghini Urus S - SUPPORT FOR COOLANT RADIATOR (805.02.00)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4ML805594	SUPPORT FOR COOLANT RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0805201	SUPPORT	Enquire	To Order
	4M0805202	SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4ML805133	BRACKET	Enquire	To Order
	4ML805134	SIDE MEMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4ML805262	CROSS MEMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0121131D	HOSE CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4ML121286	FRONT SPOILER URUS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4ML121283	AIR GUIDE	Enquire	To Order
	4ML121284	AIR GUIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4ML121285	AIR GUIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4ML805607	BRACKET FOR HEADLIGHT	Enquire	To Order
	4ML805608	BRACKET FOR HEADLIGHT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0806185A	SUPPORT FOR COOLANT RADIATOR	Enquire	To Order
	4M0806186A	SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8K0805399B	HEXAGON SOCKET HEAD PANEL BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90993602	TORX SCREW (COMBINATION), SELF-LOCKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91132602	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91228201	HEX SOCKET HEAD BOLT (COMBI)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	867129669	GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1K0129734B	BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10413408	OVAL SOCKET HEAD BOLT WITH HEX DRIVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90993603	HEX SOCKET HEAD BOLT (COMBI)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91196402	HEXAGON BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91262801	HEX SOCKET HEAD BOLT (COMBI)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91215101	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10690201	HEXAGON FLANGE SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91081302	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4ML807109	BUMPER CARRIER	Enquire	To Order
	4ML807109B	BUMPER CARRIER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0802037B	SIDE MEMBER	Enquire	To Order
	4M0802038D	SIDE MEMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0802441	REINFORCEMENT	Enquire	To Order
	4M0802442	REINFORCEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0803329A	CARRIER	Enquire	To Order
	4M0803330B	CARRIER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91096801	HEXAGON SOCKET FLAT HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10576702	HEXAGON HEAD BOLT (COMBI)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10664801	SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4ML805594	SUPPORT FOR COOLANT RADIATOR	4ML805594 SUPPORT FOR COOLANT RADIATOR WITHOUT ADDITIONAL FRONT UNDERBODY GUARD	-	1	Enquire
2	4M0805201	SUPPORT	4M0805201 SUPPORT LEFT	-	1	Enquire
2	4M0805202	SUPPORT	4M0805202 SUPPORT RIGHT	-	1	Enquire
3	4ML805133	BRACKET	4ML805133 BRACKET LEFT	-	1	Enquire
3	4ML805134	SIDE MEMBER	4ML805134 SIDE MEMBER RIGHT	-	1	Enquire
4	4ML805262	CROSS MEMBER	4ML805262 CROSS MEMBER FRONT	-	1	Enquire
5	4M0121131D	HOSE CONNECTOR	4M0121131D HOSE CONNECTOR	-	1	Enquire
6	4ML121286	FRONT SPOILER URUS	4ML121286 FRONT SPOILER URUS LOWER FRONT	-	1	Enquire
7	4ML121283	AIR GUIDE	4ML121283 AIR GUIDE LEFT	-	1	Enquire
7	4ML121284	AIR GUIDE	4ML121284 AIR GUIDE RIGHT	-	1	Enquire
8	4ML121285	AIR GUIDE	4ML121285 AIR GUIDE UPPER FRONT	-	1	Enquire
9	4ML805607	BRACKET FOR HEADLIGHT	4ML805607 BRACKET FOR HEADLIGHT LEFT	-	1	Enquire
9	4ML805608	BRACKET FOR HEADLIGHT	4ML805608 BRACKET FOR HEADLIGHT RIGHT	-	1	Enquire
10	4M0806185A	SUPPORT FOR COOLANT RADIATOR	4M0806185A SUPPORT FOR COOLANT RADIATOR LEFT	-	1	Enquire
10	4M0806186A	SUPPORT	4M0806186A SUPPORT RIGHT	-	1	Enquire
11	8K0805399B	HEXAGON SOCKET HEAD PANEL BOLT	8K0805399B HEXAGON SOCKET HEAD PANEL BOLT 7X22	-	1	Enquire
12	N90993602	TORX SCREW (COMBINATION), SELF-LOCKING	N90993602 TORX SCREW (COMBINATION), SELF-LOCKING	-	2	Enquire
13	N91132602	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI)	N91132602 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI) M6X28	-	6	Enquire
14	N91228201	HEX SOCKET HEAD BOLT (COMBI)	N91228201 HEX SOCKET HEAD BOLT (COMBI) T30	-	4	Enquire
16	867129669	GROMMET	867129669 GROMMET	-	2	Enquire
17	1K0129734B	BUSH	1K0129734B BUSH	-	2	Enquire
18	N10413408	OVAL SOCKET HEAD BOLT WITH HEX DRIVE	N10413408 OVAL SOCKET HEAD BOLT WITH HEX DRIVE	-	8	Enquire
19	N90993603	HEX SOCKET HEAD BOLT (COMBI)	N90993603 HEX SOCKET HEAD BOLT (COMBI) M6X25	-	8	Enquire
20	N91196402	HEXAGON BOLT	N91196402 HEXAGON BOLT M10X35	-	8	Enquire
21	N91262801	HEX SOCKET HEAD BOLT (COMBI)	N91262801 HEX SOCKET HEAD BOLT (COMBI) T30	-	2	Enquire
22	N91215101	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI)	N91215101 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI) M8X25	-	2	Enquire
23	N10690201	HEXAGON FLANGE SCREW	N10690201 HEXAGON FLANGE SCREW M8X70	-	2	Enquire
24	N91081302	WASHER	N91081302 WASHER 10 -5X24X2	-	2	Enquire
25	4ML807109	BUMPER CARRIER	4ML807109 BUMPER CARRIER STANDARD	-	1	Enquire
25	4ML807109B	BUMPER CARRIER	4ML807109B BUMPER CARRIER ONLY FOR DUNE & OFF- ROAD VERSION	-	1	Enquire
26	4M0802037B	SIDE MEMBER	4M0802037B SIDE MEMBER LEFT LOWER	-	1	Enquire
26	4M0802038D	SIDE MEMBER	4M0802038D SIDE MEMBER RIGHT LOWER	-	1	Enquire
27	4M0802441	REINFORCEMENT	4M0802441 REINFORCEMENT LEFT	-	1	Enquire
27	4M0802442	REINFORCEMENT	4M0802442 REINFORCEMENT RIGHT	-	1	Enquire
28	4M0803329A	CARRIER	4M0803329A CARRIER LEFT	-	1	Enquire
28	4M0803330B	CARRIER	4M0803330B CARRIER RIGHT	-	1	Enquire
29	N91096801	HEXAGON SOCKET FLAT HEAD BOLT	N91096801 HEXAGON SOCKET FLAT HEAD BOLT	-	4	Enquire
30	N10576702	HEXAGON HEAD BOLT (COMBI)	N10576702 HEXAGON HEAD BOLT (COMBI) M8X75	-	1	Enquire
31	N10664801	SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD	N10664801 SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD M8X20	-	1	Enquire

UNDERBODY FRONT (805.01.00)

SUPPORT FOR COOLANT RADIATOR (805.02.00)

SUPPORT FOR COOLANT RADIATOR (805.03.00)

Haven't found what you're looking for?

More: Lamborghini Radiators Tuning Parts Need help? Call us

View Cart / Checkout

Support For Coolant Radiator

Lamborghini Urus S

Illustration Number: 805.02.00

Lamborghini Urus S - SUPPORT FOR COOLANT RADIATOR (805.02.00)
