STEERING COLUMN WITH ATTACHMENT PARTS of Lamborghini Lamborghini Urus S

View All

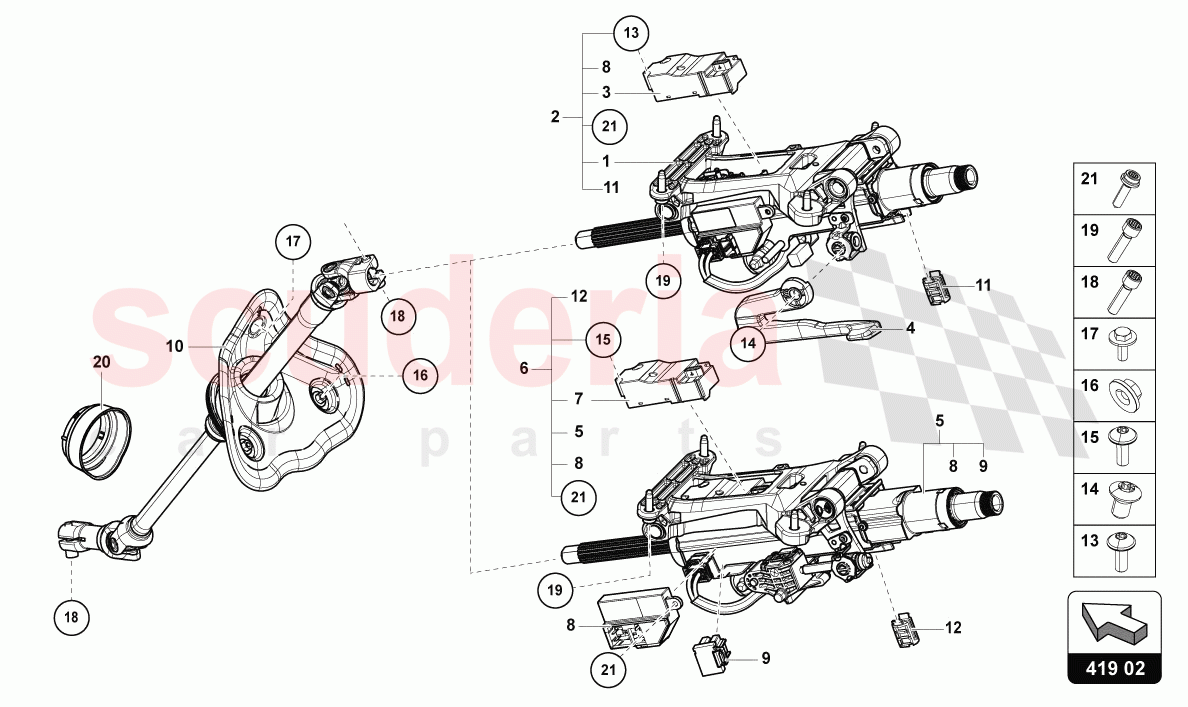

Lamborghini Urus S - STEERING COLUMN WITH ATTACHMENT PARTS (419.02.00)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4M2419065B	STEERING COLUMN	Enquire	To Order
	4M1419065B	STEERING COLUMN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3Q0905861C	STEERING COLUMN LOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0419378C4PK	RETAINING LEVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M1419506AL	STEERING COLUMN	Enquire	To Order
	4M2419506AB	STEERING COLUMN	Enquire	To Order
	4M2419506Q	STEERING COLUMN OBERT.EVLS RL NAR	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	3Q0905861C	STEERING COLUMN LOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4F0937733B	FLAT CONTACT HOUSING WITH CONTACT LOCKING MECHANISM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M1419753D	INTERMEDIATE STEERING SHAFT	Enquire	To Order
	4M2419753C	INTERMEDIATE STEERING SHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10430103	HEXAGON SOCKET FLAT HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10739301	FILLISTER HD. BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91173301	HEX. NUT WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90999502	HEX COLLARED BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10518405	SOCKET HEAD BOLT WITH MULTI- POINT INNER DRIVE, SELF-LOCK.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10665001	FLAT HEAD MULTI-POINT SOCKET BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M1805673A	GROMMET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
2	4M2419065B	STEERING COLUMN	4M2419065B STEERING COLUMN MANUAL AXIAL AND TILTING ADJUSTMENT- RHD	-	1	Enquire
2	4M1419065B	STEERING COLUMN	4M1419065B STEERING COLUMN LHD	-	1	Enquire
3	3Q0905861C	STEERING COLUMN LOCK	3Q0905861C STEERING COLUMN LOCK	-	1	Enquire
4	4M0419378C4PK	RETAINING LEVER	4M0419378C4PK RETAINING LEVER SOUL (BLACK)	-	1	Enquire
6	4M1419506AL	STEERING COLUMN	4M1419506AL STEERING COLUMN ELECTRICAL AXIAL AND TILTING ADJUSTMENT -- LHD	-	1	Enquire
6	4M2419506AB	STEERING COLUMN	4M2419506AB STEERING COLUMN ELECTRICAL AXIAL AND TILTING ADJUSTMENT- RHD	-	1	Enquire
6	4M2419506Q	STEERING COLUMN OBERT.EVLS RL NAR	4M2419506Q STEERING COLUMN OBERT.EVLS RL NAR ELECTRICAL AXIAL AND TILTING ADJUSTMENT- RHD WARRANTY	-	1	Enquire
6	4M1419506AK	STEERING COLUMN	4M1419506AK STEERING COLUMN ELECTRICAL AXIAL AND TILTING ADJUSTMENT- LHD	-	1	Enquire
7	3Q0905861C	STEERING COLUMN LOCK	3Q0905861C STEERING COLUMN LOCK	-	1	Enquire
9	4F0937733B	FLAT CONTACT HOUSING WITH CONTACT LOCKING MECHANISM	4F0937733B FLAT CONTACT HOUSING WITH CONTACT LOCKING MECHANISM 10 PIN RED	-	1	Enquire
10	4M1419753D	INTERMEDIATE STEERING SHAFT	4M1419753D INTERMEDIATE STEERING SHAFT LHD	-	1	Enquire
10	4M2419753C	INTERMEDIATE STEERING SHAFT	4M2419753C INTERMEDIATE STEERING SHAFT RHD	-	1	Enquire
13	N10430103	HEXAGON SOCKET FLAT HEAD BOLT	N10430103 HEXAGON SOCKET FLAT HEAD BOLT M5X16	-	1	Enquire
14	N10739301	FILLISTER HD. BOLT	N10739301 FILLISTER HD. BOLT M6X10	-	1	Enquire
16	N91173301	HEX. NUT WITH WASHER	N91173301 HEX. NUT WITH WASHER	-	2	Enquire
17	N90999502	HEX COLLARED BOLT	N90999502 HEX COLLARED BOLT M6X25	-	1	Enquire
18	N10518405	SOCKET HEAD BOLT WITH MULTI- POINT INNER DRIVE, SELF-LOCK.	N10518405 SOCKET HEAD BOLT WITH MULTI- POINT INNER DRIVE, SELF-LOCK. M8X30	-	1	Enquire
19	N10665001	FLAT HEAD MULTI-POINT SOCKET BOLT	N10665001 FLAT HEAD MULTI-POINT SOCKET BOLT M8X30	-	4	Enquire
20	4M1805673A	GROMMET	4M1805673A GROMMET	-	1	Enquire

STEERING WHEEL (419.01.00)

STEERING COLUMN WITH ATTACHMENT PARTS (419.02.00)

Haven't found what you're looking for?

Original Parts Tuning Parts Need help? Call us

View Cart / Checkout

Steering Column With Attachment Parts

Lamborghini Urus S

Illustration Number: 419.02.00

Lamborghini Urus S - STEERING COLUMN WITH ATTACHMENT PARTS (419.02.00)
