Name: COOLING SYSTEM FOR GEAR OIL
Rating: 5.0 (1 reviews)

Find Your Part

COOLING SYSTEM FOR GEAR OIL of Lamborghini Lamborghini Urus S

View All

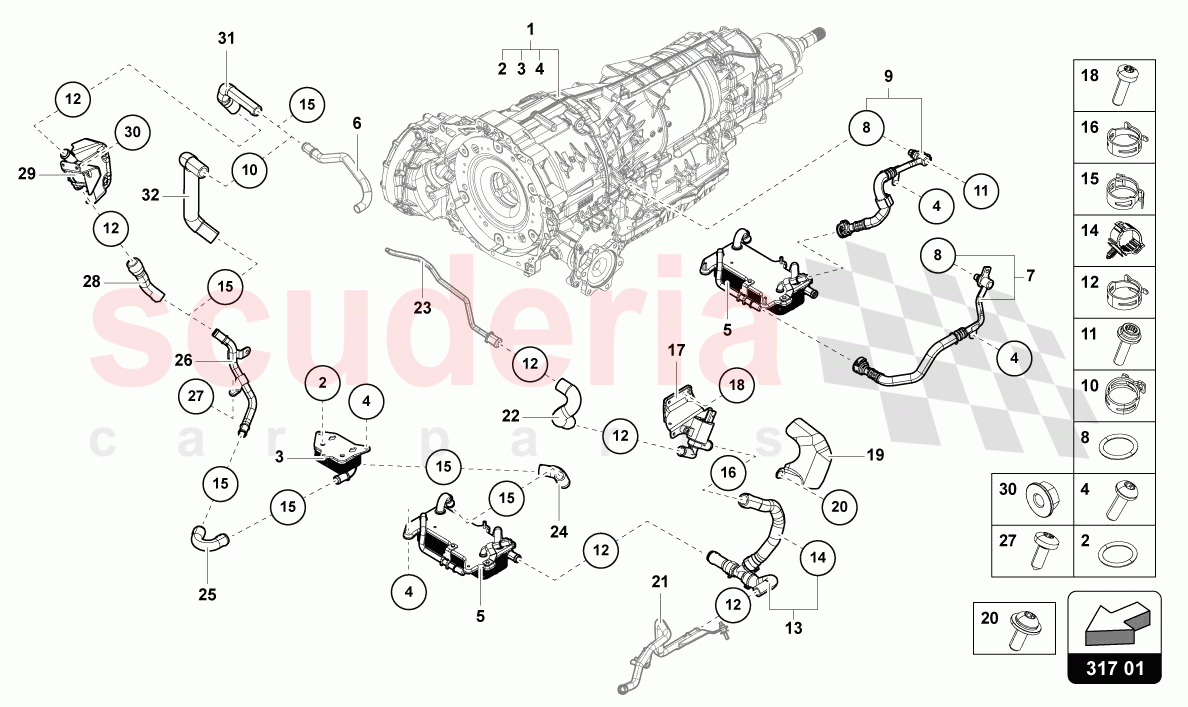

Lamborghini Urus S - COOLING SYSTEM FOR GEAR OIL (317.01.00)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	9E409069	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8W0317021C	GEAR OIL COOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10196103	OVAL SOCKET HEAD BOLT WITH HEX DRIVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0317021G	GEAR OIL COOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4N0317818AF	OIL PRESSURE LINE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90666003	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4N0317817AF	OIL PRESSURE LINE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90686902	SPRING BAND CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91142201	SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90687001	SPRING BAND CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0122448J	COOLANT HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3C0121093D	HOSE BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90686901	SPRING BAND CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90687001	SPRING BAND CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0121305BC	SOLENOID VALVE WITH HOLDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10124309	OVAL HEXAGON SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0121651A	HEAT REFLECTIVE MAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90958903	HEXAGON SOCKET OVAL HEAD BOLT (COMBI)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0121056AQ	COOLANT HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0121444D	COOLANT HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0121449ED	COOLANT HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0121485CQ	COOLANT PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91096701	OVAL HEXAGON SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N01508210	HEXAGON COLLAR NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0121449EE	COOLANT HOSE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
2	9E409069	O-RING	9E409069 O-RING	-	2	Enquire
3	8W0317021C	GEAR OIL COOLER	8W0317021C GEAR OIL COOLER	-	1	Enquire
4	N10196103	OVAL SOCKET HEAD BOLT WITH HEX DRIVE	N10196103 OVAL SOCKET HEAD BOLT WITH HEX DRIVE M6X18	-	3	Enquire
5	4M0317021G	GEAR OIL COOLER	4M0317021G GEAR OIL COOLER	-	1	Enquire
7	4N0317818AF	OIL PRESSURE LINE	4N0317818AF OIL PRESSURE LINE FEED	-	1	Enquire
8	N90666003	O-RING	N90666003 O-RING 11 -5X3	-	1	Enquire
9	4N0317817AF	OIL PRESSURE LINE	4N0317817AF OIL PRESSURE LINE RETURN	-	1	Enquire
10	N90686902	SPRING BAND CLAMP	N90686902 SPRING BAND CLAMP 23X12	-	1	Enquire
11	N91142201	SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD	N91142201 SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD	-	1	Enquire
12	N90687001	SPRING BAND CLAMP	N90687001 SPRING BAND CLAMP 27X12	-	2	Enquire
13	4M0122448J	COOLANT HOSE	4M0122448J COOLANT HOSE	-	1	Enquire
14	3C0121093D	HOSE BRACKET	3C0121093D HOSE BRACKET 23	-	1	Enquire
15	N90686901	SPRING BAND CLAMP	N90686901 SPRING BAND CLAMP 23X12	-	9	Enquire
16	N90687001	SPRING BAND CLAMP	N90687001 SPRING BAND CLAMP 27X12	-	4	Enquire
17	4M0121305BC	SOLENOID VALVE WITH HOLDER	4M0121305BC SOLENOID VALVE WITH HOLDER	-	1	Enquire
18	N10124309	OVAL HEXAGON SOCKET HEAD BOLT	N10124309 OVAL HEXAGON SOCKET HEAD BOLT M6X20	-	2	Enquire
19	4M0121651A	HEAT REFLECTIVE MAT	4M0121651A HEAT REFLECTIVE MAT	-	1	Enquire
20	N90958903	HEXAGON SOCKET OVAL HEAD BOLT (COMBI)	N90958903 HEXAGON SOCKET OVAL HEAD BOLT (COMBI) M6X16	-	2	Enquire
22	4M0121056AQ	COOLANT HOSE	4M0121056AQ COOLANT HOSE	-	1	Enquire
24	4M0121444D	COOLANT HOSE	4M0121444D COOLANT HOSE	-	1	Enquire
25	4M0121449ED	COOLANT HOSE	4M0121449ED COOLANT HOSE	-	1	Enquire
26	4M0121485CQ	COOLANT PIPE	4M0121485CQ COOLANT PIPE	-	1	Enquire
27	N91096701	OVAL HEXAGON SOCKET HEAD BOLT	N91096701 OVAL HEXAGON SOCKET HEAD BOLT M6X16	-	2	Enquire
30	N01508210	HEXAGON COLLAR NUT	N01508210 HEXAGON COLLAR NUT M6	-	2	Enquire
32	4M0121449EE	COOLANT HOSE	4M0121449EE COOLANT HOSE	-	1	Enquire

Haven't found what you're looking for?

Original Parts Tuning Parts Need help? Call us

View Cart / Checkout

Cooling System For Gear Oil

Lamborghini Urus S

Illustration Number: 317.01.00

Lamborghini Urus S - COOLING SYSTEM FOR GEAR OIL (317.01.00)
