Name: A/C CONDENSER
Rating: 4.9 (1 reviews)

A/C CONDENSER of Lamborghini Lamborghini Urus S

View All

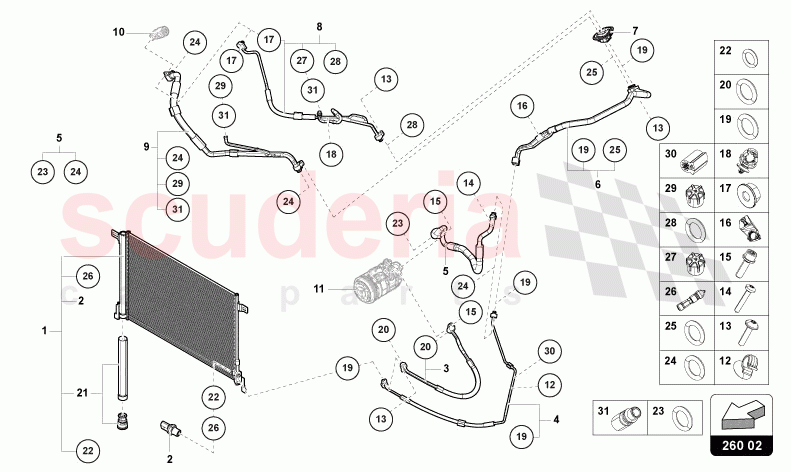

Lamborghini Urus S - A/C CONDENSER (260.02.00)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4M0816411M	A/C CONDENSER WITH DRYER	$733.02	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4H0959126C	PRESSURE SENDER FOR REFRIGERANT CIRCUIT	$49.64	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4M0816721DB	COOLANT PIPE	$111.70	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0816741DA	COOLANT PIPE	$115.38	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0816743AC	COOLANT PIPE	$111.70	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0816738M	REFRIGERANT PIPE	$568.56	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0820339H	BASIC PLATE	$66.92	To Order

Photo	Part No	Description	Price (each)	Stock
	4M1816720R	REFRIGERANT LINE	$586.02	To Order
	4M2816720M	REFRIGERANT LINE	$590.06	To Order

Photo	Part No	Description	Price (each)	Stock
	4M1816740N	REFRIGERANT LINE	$584.68	To Order
	4M2816740	REFRIGERANT LINE	$586.02	To Order

Photo	Part No	Description	Price (each)	Stock
	8D0971897A	BRACKET	$1.55	To Order

Photo	Part No	Description	Price (each)	Stock
	N10632102	OVAL HEXAGON SOCKET HEAD BOLT	$1.34	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N91097201	ROUND HD. SCREW	$2.96	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10414402	SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD	$3.11	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4M0820769G	BRACKET	$9.00	To Order

Photo	Part No	Description	Price (each)	Stock
	N01508210	HEXAGON COLLAR NUT	$1.96	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	8K0260759H	BRACKET	$5.94	To Order

Photo	Part No	Description	Price (each)	Stock
	3D0260749C	SEAL RING	$6.67	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4E0260749A	SEAL RING	$6.67	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4M0298403	DRYER INSERT WITH ATTACHMENT PARTS	$113.60	To Order

Photo	Part No	Description	Price (each)	Stock
	7H0820896	O-RING	$5.66	To Order

Photo	Part No	Description	Price (each)	Stock
	8E0260749C	SEAL RING	$5.66	To Order

Photo	Part No	Description	Price (each)	Stock
	4E0260749B	SEAL RING	$6.45	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	WHT004858	SEAL RING	$4.58	To Order

Photo	Part No	Description	Price (each)	Stock
	8A0820855AA	VALVE	$22.39	To Order

Photo	Part No	Description	Price (each)	Stock
	5Q0816581	PROTECTIVE CAP	$6.27	To Order

Photo	Part No	Description	Price (each)	Stock
	4D0260749B	SEAL RING	$6.06	To Order

Photo	Part No	Description	Price (each)	Stock
	3C0820231	PROTECTIVE CAP	$18.96	To Order
	5Q0816231	PROTECTIVE CAP	$9.00	To Order

Photo	Part No	Description	Price (each)	Stock
	N10746101	SPACER RING	$19.26	To Order

Photo	Part No	Description	Price (each)	Stock
	8E0820855	EVACUATING AND CHARGING VALVE	$19.97	To Order

View All

Diagram Tap to enlarge

A/C Condenser

Lamborghini Urus S

Illustration Number: 260.02.00

Lamborghini Urus S - A/C CONDENSER (260.02.00)

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	4M0816411M	A/C CONDENSER WITH DRYER IN STOCK	4M0816411M A/C CONDENSER WITH DRYER DENSO IN STOCK	$733.02	1
2	4H0959126C	PRESSURE SENDER FOR REFRIGERANT CIRCUIT IN STOCK	4H0959126C PRESSURE SENDER FOR REFRIGERANT CIRCUIT IN STOCK	$49.64	1
3	4M0816721DB	COOLANT PIPE	4M0816721DB COOLANT PIPE	$111.70	1
4	4M0816741DA	COOLANT PIPE	4M0816741DA COOLANT PIPE	$115.38	1
5	4M0816743AC	COOLANT PIPE	4M0816743AC COOLANT PIPE	$111.70	1
6	4M0816738M	REFRIGERANT PIPE	4M0816738M REFRIGERANT PIPE	$568.56	1
7	4M0820339H	BASIC PLATE	4M0820339H BASIC PLATE	$66.92	1
8	4M1816720R	REFRIGERANT LINE	4M1816720R REFRIGERANT LINE COOLNANT R1234YF- LHD	$586.02	1
8	4M2816720M	REFRIGERANT LINE	4M2816720M REFRIGERANT LINE COOLANT R1234YF- RHD	$590.06	1
9	4M1816740N	REFRIGERANT LINE	4M1816740N REFRIGERANT LINE COOLANT R1234YF- LHD	$584.68	1
9	4M2816740	REFRIGERANT LINE	4M2816740 REFRIGERANT LINE COOLANT R1234YF- RHD	$586.02	1
12	8D0971897A	BRACKET	8D0971897A BRACKET	$1.55	1
13	N10632102	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N10632102 OVAL HEXAGON SOCKET HEAD BOLT M6X25 IN STOCK	$1.34	4
14	N91097201	ROUND HD. SCREW IN STOCK	N91097201 ROUND HD. SCREW M6X35 IN STOCK	$2.96	1
15	N10414402	SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD IN STOCK	N10414402 SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD M8X28 IN STOCK	$3.11 MSRP: ~~7.07~~ (56% off)	2
16	4M0820769G	BRACKET	4M0820769G BRACKET	$9.00	1
17	N01508210	HEXAGON COLLAR NUT IN STOCK	N01508210 HEXAGON COLLAR NUT M6 IN STOCK	$1.96	1
18	8K0260759H	BRACKET	8K0260759H BRACKET	$5.94	2
19	3D0260749C	SEAL RING IN STOCK	3D0260749C SEAL RING 9 -5X2,5 IN STOCK	$6.67 MSRP: ~~7.10~~ (6.1% off)	3
20	4E0260749A	SEAL RING IN STOCK	4E0260749A SEAL RING 11X2 -5 IN STOCK	$6.67 MSRP: ~~7.06~~ (5.5% off)	2
21	4M0298403	DRYER INSERT WITH ATTACHMENT PARTS	4M0298403 DRYER INSERT WITH ATTACHMENT PARTS DENSO	$113.60	1
22	7H0820896	O-RING	7H0820896 O-RING 7 -6X1,8	$5.66 MSRP: ~~7.21~~ (21.5% off)	1
23	8E0260749C	SEAL RING	8E0260749C SEAL RING 23 -8X2,4	$5.66 MSRP: ~~7.09~~ (20.2% off)	1
24	4E0260749B	SEAL RING IN STOCK	4E0260749B SEAL RING 13 -7X2,5 IN STOCK	$6.45 MSRP: ~~7.06~~ (8.6% off)	1
25	WHT004858	SEAL RING	WHT004858 SEAL RING 13 -94X2,62	$4.58	1
26	8A0820855AA	VALVE	8A0820855AA VALVE	$22.39	1
27	5Q0816581	PROTECTIVE CAP	5Q0816581 PROTECTIVE CAP M10	$6.27	1
28	4D0260749B	SEAL RING	4D0260749B SEAL RING 7 -6X2,5	$6.06	1
29	3C0820231	PROTECTIVE CAP	3C0820231 PROTECTIVE CAP	$18.96	1
29	5Q0816231	PROTECTIVE CAP	5Q0816231 PROTECTIVE CAP	$9.00	1
30	N10746101	SPACER RING	N10746101 SPACER RING 8X18X30	$19.26	1
31	8E0820855	EVACUATING AND CHARGING VALVE	8E0820855 EVACUATING AND CHARGING VALVE	$19.97	2
