Find Your Part

FUEL TANK of Lamborghini Lamborghini Urus S

View All

Lamborghini Urus S - FUEL TANK (201.01.00)

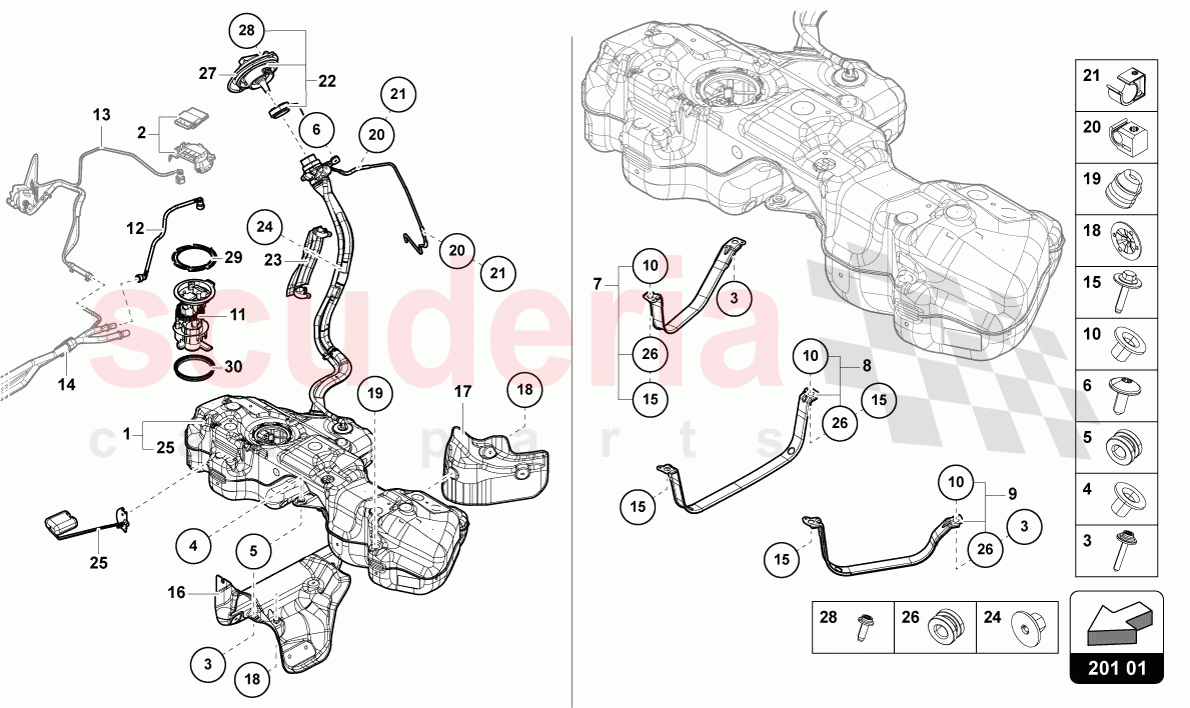

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4M0201060DJ	FUEL TANK	Enquire	To Order
	4M0201060GK	FUEL TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91247301	INT. SERRATION FLANGE SCREW (COMBI-INSTRUMENT)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8K0201693D	BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8K0201840D	RUBBER BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91042301	OVAL HEXAGON SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0201392C	TENSIONING STRAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0201392F	TENSIONING STRAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0201391C	TENSIONING STRAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8K0201693C	BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	36A919087P	FUEL SUPPLY MODULE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0201220K	FUEL LINE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91237201	HEXAGON HEAD BOLT (COMBI)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0201308H	HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0201308G	HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90335004	CLAMPING WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8K0201274B	DAMPING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8J0201449E	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4ML201550E	CAP WITH RETAINING STRAP FOR FUEL TANK	Enquire	To Order
	4ML201550F	CAP WITH RETAINING STRAP FOR FUEL TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0201974A	GUARD PLATE FOR FUEL PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90757901	HEXAGON COLLAR NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0919047	SENDER FOR FUEL GAUGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8K0201840C	RUBBER BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1K0201375	UNION NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1J0919133B	SEAL RING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4M0201060DJ	FUEL TANK	4M0201060DJ FUEL TANK 75 LTR.	-	1	Enquire
1	4M0201060GK	FUEL TANK	4M0201060GK FUEL TANK FOR EMISSION CLASS LEV3 - C6B-85 LTR.	-	1	Enquire
3	N91247301	INT. SERRATION FLANGE SCREW (COMBI-INSTRUMENT)	N91247301 INT. SERRATION FLANGE SCREW (COMBI-INSTRUMENT) M8X50	-	1	Enquire
4	8K0201693D	BUSH	8K0201693D BUSH RIGHT	-	1	Enquire
5	8K0201840D	RUBBER BUSH	8K0201840D RUBBER BUSH RIGHT	-	7	Enquire
6	N91042301	OVAL HEXAGON SOCKET HEAD BOLT	N91042301 OVAL HEXAGON SOCKET HEAD BOLT M6X16	-	2	Enquire
7	4M0201392C	TENSIONING STRAP	4M0201392C TENSIONING STRAP RIGHT	-	1	Enquire
8	4M0201392F	TENSIONING STRAP	4M0201392F TENSIONING STRAP CENTER	-	1	Enquire
9	4M0201391C	TENSIONING STRAP	4M0201391C TENSIONING STRAP LEFT	-	1	Enquire
10	8K0201693C	BUSH	8K0201693C BUSH FRONT	-	6	Enquire
11	36A919087P	FUEL SUPPLY MODULE	36A919087P FUEL SUPPLY MODULE W/O AUXILIARY HEATER - ORDER ALSO REF 29 AND 30	-	1	Enquire
12	4M0201220K	FUEL LINE	4M0201220K FUEL LINE FEED	-	1	Enquire
15	N91237201	HEXAGON HEAD BOLT (COMBI)	N91237201 HEXAGON HEAD BOLT (COMBI) M8X40	-	4	Enquire
16	4M0201308H	HEAT SHIELD	4M0201308H HEAT SHIELD CENTER	-	1	Enquire
17	4M0201308G	HEAT SHIELD	4M0201308G HEAT SHIELD LEFT	-	1	Enquire
18	N90335004	CLAMPING WASHER	N90335004 CLAMPING WASHER 5X30	-	4	Enquire
19	8K0201274B	DAMPING	8K0201274B DAMPING	-	7	Enquire
21	8J0201449E	BRACKET	8J0201449E BRACKET	-	2	Enquire
22	4ML201550E	CAP WITH RETAINING STRAP FOR FUEL TANK	4ML201550E CAP WITH RETAINING STRAP FOR FUEL TANK NAR AND SOUTH KOREA - CARBON	-	1	Enquire
22	4ML201550F	CAP WITH RETAINING STRAP FOR FUEL TANK	4ML201550F CAP WITH RETAINING STRAP FOR FUEL TANK NAR AND SOUTH KOREA - STD	-	1	Enquire
23	4M0201974A	GUARD PLATE FOR FUEL PIPE	4M0201974A GUARD PLATE FOR FUEL PIPE ONLY FOR USA AND SOUTH KOREAN MARKETS	-	1	Enquire
24	N90757901	HEXAGON COLLAR NUT	N90757901 HEXAGON COLLAR NUT 5	-	1	Enquire
25	4M0919047	SENDER FOR FUEL GAUGE	4M0919047 SENDER FOR FUEL GAUGE	-	1	Enquire
26	8K0201840C	RUBBER BUSH	8K0201840C RUBBER BUSH	-	3	Enquire
29	1K0201375	UNION NUT	1K0201375 UNION NUT	-	1	Enquire
30	1J0919133B	SEAL RING	1J0919133B SEAL RING	-	1	Enquire

FUEL TANK (201.01.00)

1 SET FUEL PIPES (201.02.00)

ACTIVE CHARCOAL FILTER WITH DIAGNOSIS PUMP FOR FUEL DELIVERY SYSTEM (201.03.00)

Haven't found what you're looking for?

Original Parts Tuning Parts Need help? Call us

View Cart / Checkout

Fuel Tank

Lamborghini Urus S

Illustration Number: 201.01.00

Lamborghini Urus S - FUEL TANK (201.01.00)
