Name: ENGINE BRACKET
Rating: 4.1 (1 reviews)

Find Your Part

ENGINE BRACKET of Lamborghini Lamborghini Urus S

View All

Lamborghini Urus S - ENGINE BRACKET (199.01.00)

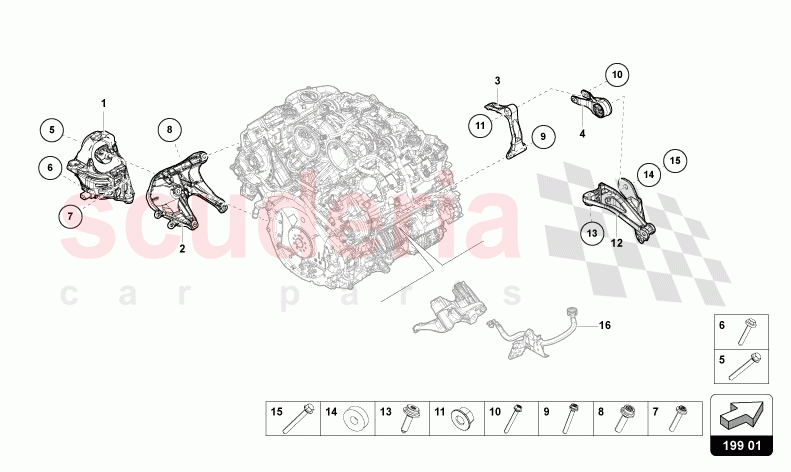

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4M0199371GN	ENGINE MOUNTING	Enquire	To Order
	4M0199372GN	ENGINE MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0199307BF	SUPPORT	Enquire	To Order
	4M0199308BF	SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9Y0199352A	CONSOLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9Y0199331C	ENGINE SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91275001	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90696702	HEXAGON HEAD BOLT (COMBI)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91246701	SCREW WITH INT. SERRATIONS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10702603	SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10741801	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10680201	HEXAGON COLLARED BOLT WITH MULTI-POINT SOCKET HEAD (DUO)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10261311	HEXAGON NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9Y0199373	SUPPORT BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N0195038	HEXAGON BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90992802	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10655802	HEX COLLARED BOLT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4M0199371GN	ENGINE MOUNTING	4M0199371GN ENGINE MOUNTING LEFT	-	1	Enquire
1	4M0199372GN	ENGINE MOUNTING	4M0199372GN ENGINE MOUNTING RIGHT	-	1	Enquire
2	4M0199307BF	SUPPORT	4M0199307BF SUPPORT SIDE - LEFT	-	1	Enquire
2	4M0199308BF	SUPPORT	4M0199308BF SUPPORT SIDE - RIGHT	-	1	Enquire
3	9Y0199352A	CONSOLE	9Y0199352A CONSOLE	-	1	Enquire
4	9Y0199331C	ENGINE SUPPORT	9Y0199331C ENGINE SUPPORT UPPER	-	1	Enquire
5	N91275001	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	N91275001 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD M12X1 -5X70	-	2	Enquire
6	N90696702	HEXAGON HEAD BOLT (COMBI)	N90696702 HEXAGON HEAD BOLT (COMBI) M8X50	-	4	Enquire
7	N91246701	SCREW WITH INT. SERRATIONS	N91246701 SCREW WITH INT. SERRATIONS M10X50	-	2	Enquire
8	N10702603	SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD	N10702603 SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD M10X35	-	8	Enquire
9	N10741801	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	N10741801 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	-	9	Enquire
10	N10680201	HEXAGON COLLARED BOLT WITH MULTI-POINT SOCKET HEAD (DUO)	N10680201 HEXAGON COLLARED BOLT WITH MULTI-POINT SOCKET HEAD (DUO) M10X75	-	3	Enquire
11	N10261311	HEXAGON NUT	N10261311 HEXAGON NUT M10	-	2	Enquire
12	9Y0199373	SUPPORT BRACKET	9Y0199373 SUPPORT BRACKET	-	1	Enquire
13	N0195038	HEXAGON BOLT	N0195038 HEXAGON BOLT M8X35	-	3	Enquire
14	N90992802	WASHER	N90992802 WASHER	-	1	Enquire
15	N10655802	HEX COLLARED BOLT	N10655802 HEX COLLARED BOLT M10X85	-	1	Enquire

Haven't found what you're looking for?

Original Parts Tuning Parts Need help? Call us

View Cart / Checkout

Engine Bracket

Lamborghini Urus S

Illustration Number: 199.01.00

Lamborghini Urus S - ENGINE BRACKET (199.01.00)
