Name: CYLINDER HEAD
Rating: 4.2 (1 reviews)

CYLINDER HEAD of Lamborghini Lamborghini Urus S

View All

Lamborghini Urus S - CYLINDER HEAD (103.05.00)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	P2103061AY	COMPLETE CYLINDER HEAD	$4,618.27	To Order

Photo	Part No	Description	Price (each)	Stock
	P2103062AY	COMPLETE CYLINDER HEAD	$4,618.27	To Order

Photo	Part No	Description	Price (each)	Stock
	P2103383H	CYLINDER HEAD GASKET	$106.07	IN STOCK
	P2103383J	CYLINDER HEAD GASKET	$106.07	To Order

Photo	Part No	Description	Price (each)	Stock
	6M103201D	VALVE	$20.79	To Order

Photo	Part No	Description	Price (each)	Stock
	P2103113A	COVER	$8.56	To Order

Photo	Part No	Description	Price (each)	Stock
	P2103608	SET OF SEALS FOR ATTACH. PARTS ON CYLINDER HEAD	$435.49	To Order

Photo	Part No	Description	Price (each)	Stock
	6M109285F	COVER	$60.17	To Order
	6M109286F	COVER	$60.17	To Order

Photo	Part No	Description	Price (each)	Stock
	N10554005	ROUND HD. SCREW	$2.69	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	WHT008395	CYLINDER HEAD BOLT	$9.54	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT008178	DOWEL SLEEVE	$13.54	To Order

Photo	Part No	Description	Price (each)	Stock
	N91097202	ROUND HD. SCREW	$1.43	To Order

Photo	Part No	Description	Price (each)	Stock
	7L109291	BUNGS	$13.70	To Order

Photo	Part No	Description	Price (each)	Stock
	N91103401	SEAL BOLT WITH SEALING RING	$4.31	To Order

Photo	Part No	Description	Price (each)	Stock
	58103139	DOWEL SLEEVE	$0.56	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10124306	HEXAGON SOCKET FLAT HEAD BOLT	$1.60	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N91004802	DOUBLE STUD WITH HEXAGON DRIVE	$9.54	To Order

Photo	Part No	Description	Price (each)	Stock
	N91097202	ROUND HD. SCREW	$1.43	To Order

View All

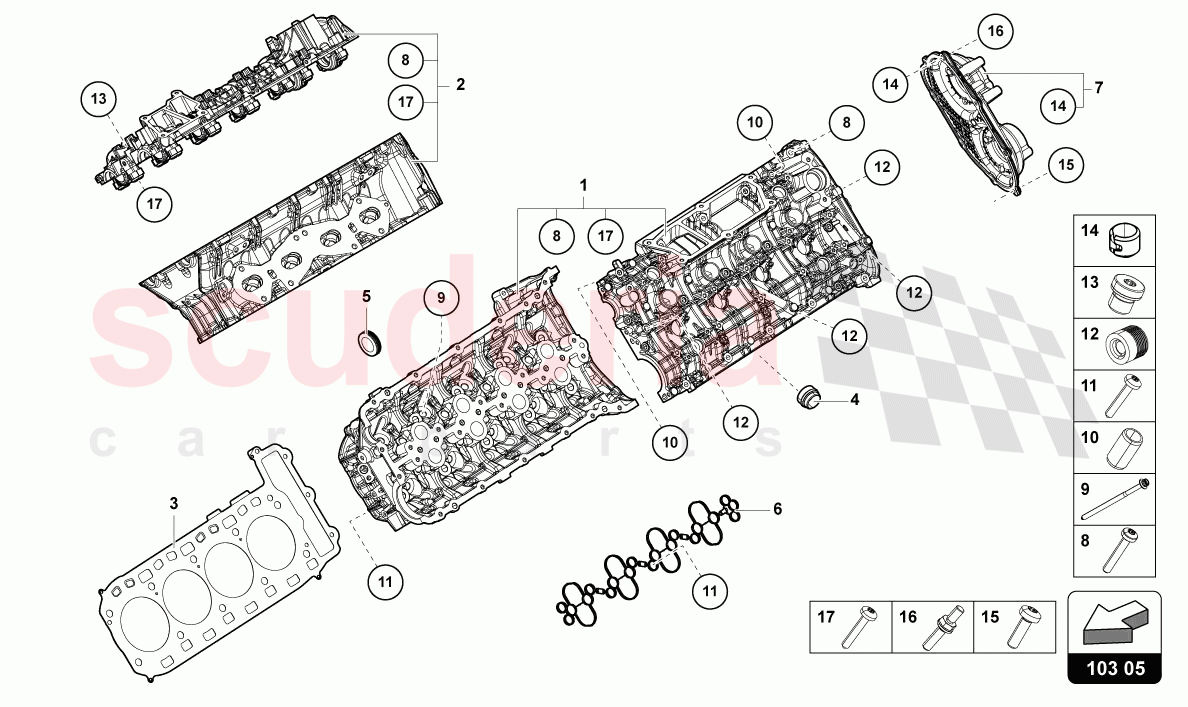

Diagram Tap to enlarge

Cylinder Head

Lamborghini Urus S

Illustration Number: 103.05.00

Lamborghini Urus S - CYLINDER HEAD (103.05.00)

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	P2103061AY	COMPLETE CYLINDER HEAD	P2103061AY COMPLETE CYLINDER HEAD CYLINDER 5-8	$4,618.27	1
2	P2103062AY	COMPLETE CYLINDER HEAD	P2103062AY COMPLETE CYLINDER HEAD CYLINDERS 1-4	$4,618.27	1
3	P2103383H	CYLINDER HEAD GASKET IN STOCK	P2103383H CYLINDER HEAD GASKET CYLINDERS 1-4 IN STOCK	$106.07	1
3	P2103383J	CYLINDER HEAD GASKET	P2103383J CYLINDER HEAD GASKET CYLINDER 5-8	$106.07	1
4	6M103201D	VALVE	6M103201D VALVE	$20.79	2
5	P2103113A	COVER	P2103113A COVER	$8.56	3
6	P2103608	SET OF SEALS FOR ATTACH. PARTS ON CYLINDER HEAD	P2103608 SET OF SEALS FOR ATTACH. PARTS ON CYLINDER HEAD CONTAINS GASKET FOR CYLINDER 1- 4 AND GASKET FOR CYLINDER 5-8	$435.49	1
7	6M109285F	COVER	6M109285F COVER LEFT	$60.17	1
7	6M109286F	COVER	6M109286F COVER RIGHT	$60.17	1
8	N10554005	ROUND HD. SCREW IN STOCK	N10554005 ROUND HD. SCREW M6X35 IN STOCK	$2.69	60
9	WHT008395	CYLINDER HEAD BOLT	WHT008395 CYLINDER HEAD BOLT M10X170X120	$9.54	20
10	WHT008178	DOWEL SLEEVE	WHT008178 DOWEL SLEEVE 8J6X14	$13.54	4
11	N91097202	ROUND HD. SCREW	N91097202 ROUND HD. SCREW M6X35	$1.43	40
12	7L109291	BUNGS	7L109291 BUNGS	$13.70	8
13	N91103401	SEAL BOLT WITH SEALING RING	N91103401 SEAL BOLT WITH SEALING RING M10X1X10	$4.31	1
14	58103139	DOWEL SLEEVE IN STOCK	58103139 DOWEL SLEEVE 8 -2X6,5 IN STOCK	$0.56	4
15	N10124306	HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	N10124306 HEXAGON SOCKET FLAT HEAD BOLT M6X20 IN STOCK	$1.60	12
16	N91004802	DOUBLE STUD WITH HEXAGON DRIVE	N91004802 DOUBLE STUD WITH HEXAGON DRIVE M6X22/M6X12	$9.54	6
17	N91097202	ROUND HD. SCREW	N91097202 ROUND HD. SCREW M6X35	$1.43	40
