WINDSCREEN WASHER SYSTEM

Find Your Part

Lamborghini Urus (2018-2019) - WINDSCREEN WASHER SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4M0955448B WASH WATER RESERVOIR $107.81 To Order
4M0955448C WASH WATER RESERVOIR $108.35 To Order
4M0955448D WASH WATER RESERVOIR $56.25 To Order
Photo Part No Description Price (each) Stock
8T0955465A GROMMET $3.71 To Order
Photo Part No Description Price (each) Stock
4M0955452B WASH WATER RESERVOIR $161.98 To Order
4M0955452C WASH WATER RESERVOIR $84.15 To Order
4M0955452D WASH WATER RESERVOIR $112.52 To Order
Photo Part No Description Price (each) Stock
7M0919376 WATER LEVEL SWITCH $18.88 To Order
Photo Part No Description Price (each) Stock
7M0919382 SEAL RING $11.31 To Order
Photo Part No Description Price (each) Stock
INTERMEDIATE LAYER Enquire To Order
Photo Part No Description Price (each) Stock
1K6955651 WINDSCREEN WASHER SYSTEM PUMP $87.50 To Order
Photo Part No Description Price (each) Stock
431955465 SEAL $3.30 To Order
Photo Part No Description Price (each) Stock
8K5955647 PUMP $37.37 To Order
Photo Part No Description Price (each) Stock
N10009207 HEXAGON HEAD BOLT (COMBI) $0.98 To Order
Photo Part No Description Price (each) Stock
4M0955462 WATER FILLER NECK $28.11 To Order
Photo Part No Description Price (each) Stock
4M0955267 END CAP $9.00 To Order
Photo Part No Description Price (each) Stock
8Z0955485 STRAINER $10.76 To Order
Photo Part No Description Price (each) Stock
N91141501 SPREADER RIVET $1.34 To Order
Photo Part No Description Price (each) Stock
4M0955463 WATER FILLER NECK $24.66 To Order
Photo Part No Description Price (each) Stock
8T0955479 GROMMET $3.71 To Order
Photo Part No Description Price (each) Stock
4M8955953 CORRUGATED PIPE $29.98 To Order
4M8955933 CORRUGATED PIPE $32.06 To Order
4M8955934 CORRUGATED PIPE $27.56 To Order
Photo Part No Description Price (each) Stock
4M8955988 SPRAY NOZZLE, HEATED $20.71 To Order
Photo Part No Description Price (each) Stock
4M8955989 SPRAY NOZZLE, HEATED $20.71 To Order
Photo Part No Description Price (each) Stock
4M8955987 SPRAY NOZZLE, HEATED $20.71 To Order
Photo Part No Description Price (each) Stock
4E0955998 GROMMET $2.57 To Order
Photo Part No Description Price (each) Stock
4N0955440 BUNGS $2.69 To Order
Photo Part No Description Price (each) Stock
AERO WIPER ARM Enquire To Order
Photo Part No Description Price (each) Stock
6R0955681 PUMP $200.26 To Order
4M8955933 CORRUGATED PIPE $32.06 To Order
View All

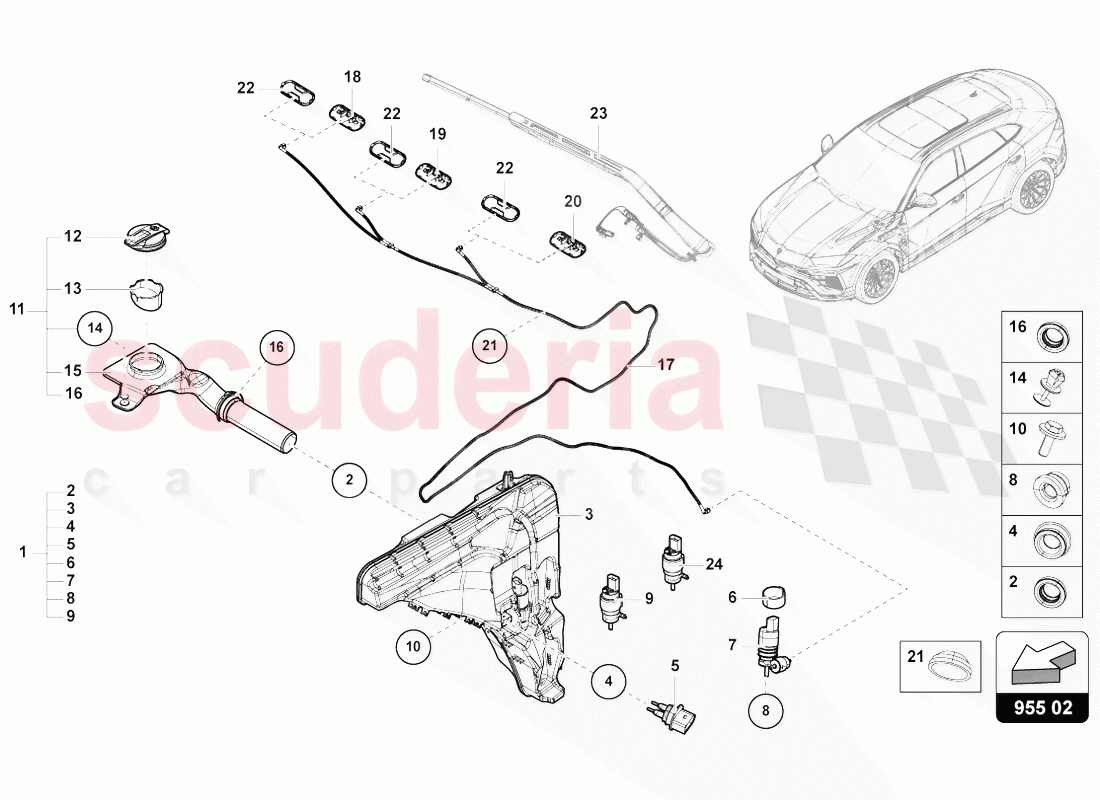

WINDSCREEN WASHER SYSTEM of Lamborghini Lamborghini Urus (2018-2019) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 4M0955448B
WASH WATER RESERVOIR
WITHOUT INTEGRATED NOZZOLES - WITH HEADLAMP WASHER - WITH NIGHT VISION 		$107.81 1
1 4M0955448C
WASH WATER RESERVOIR
WITH INTEGRATED NOZZOLES - WITH HEADLAMP WASHER - WITH NIGHT VISION 		$108.35 1
1 4M0955448D
WASH WATER RESERVOIR
3,5 L - WITHOUT HEADLAMP WASHER - WITHOUT INTEGRATED NOZZLES - WITHOUT NIGHT VISION 		$56.25 1
2 8T0955465A
GROMMET 		$3.71 1
3 4M0955452B
WASH WATER RESERVOIR
WITHOUT INTEGRATED NOZZOLES - WITH HEADLAMP WASHER - WITH NIGHT VISION 		$161.98 1
3 4M0955452C
WASH WATER RESERVOIR
WITH INTEGRATED NOZZOLES - WITH HEADLAMP WASHER - WITH NIGHT VISION 		$84.15 1
3 4M0955452D
WASH WATER RESERVOIR
3,5 L - WITHOUT HEADLAMP WASHER - WITHOUT INTEGRATED NOZZLES - WITHOUT NIGHT VISION 		$112.52 1
4 7M0919376
WATER LEVEL SWITCH 		$18.88 1
5 7M0919382
SEAL RING 		$11.31 1
6 INTERMEDIATE LAYER
NON AVAILABLE 		- - Enquire
7 1K6955651
WINDSCREEN WASHER SYSTEM PUMP
WITHOUT INTEGRATED NOZZOLES 		$87.50 2
8 431955465
SEAL
6,5X12MM 		$3.30 1
9 8K5955647
PUMP 		$37.37 2
10 N10009207
HEXAGON HEAD BOLT (COMBI)
M6X20 		$0.98 1
11 4M0955462
WATER FILLER NECK 		$28.11 1
12 4M0955267
END CAP
53,6MM 		$9.00 1
13 8Z0955485
STRAINER 		$10.76 1
14 N91141501
SPREADER RIVET 		$1.34 1
15 4M0955463
WATER FILLER NECK 		$24.66 1
16 8T0955479
GROMMET 		$3.71 1
17 4M8955953
CORRUGATED PIPE
SINGLE PUMP VERSION 		$29.98 -
17 4M8955933
CORRUGATED PIPE
TWIN PUMP VERSION-LEFT LHD 		$32.06 -
17 4M8955934
CORRUGATED PIPE
TWIN PUMP VERSION-RIGHT LHD 		$27.56 -
18 4M8955988
SPRAY NOZZLE, HEATED
RIGHT 		$20.71 1
19 4M8955989
SPRAY NOZZLE, HEATED
CENTER 		$20.71 1
20 4M8955987
SPRAY NOZZLE, HEATED
LEFT 		$20.71 1
21 4E0955998
GROMMET 		$2.57 1
22 4N0955440
BUNGS 		$2.69 3
23 AERO WIPER ARM
SEE ILLUSTRATION :- LHD 955-010 		- - Enquire
24 6R0955681
PUMP 		$200.26 -
24 4M8955933
CORRUGATED PIPE
TWIN PUMP VERSION- LHD 		$32.06 -
