Fixed-Calliper Brake

Lamborghini Urus (2018-2019)

Find Your Part

Lamborghini Urus (2018-2019) - FIXED-CALLIPER BRAKE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4ML615403G BRAKE CALIPER HOUSING WITH SERVOMOTOR $1,834.69 To Order
4ML615404G BRAKE CALIPER HOUSING WITH SERVOMOTOR $1,814.52 To Order
4ML615403H BRAKE CALIPER HOUSING WITH SERVOMOTOR $1,294.38 To Order
...and 9 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
BRAKE CALIPER HOUSING Enquire To Order
Photo Part No Description Price (each) Stock
36A698671 SET OF GASKETS FOR BRAKE CALIPER HOUSING $40.59 To Order
Photo Part No Description Price (each) Stock
1K0615273C BREATHER VALVE $12.70 To Order
Photo Part No Description Price (each) Stock
4H0611483 DUST CAP $7.32 To Order
Photo Part No Description Price (each) Stock
4M0998281 SERVOMOTOR FOR BRAKE CALLIPER HOUSING WITH ASSEMBLY PARTS $708.33 To Order
Photo Part No Description Price (each) Stock
4E0615137 O-RING $7.68 To Order
Photo Part No Description Price (each) Stock
N10285506 SOCKET HEAD BOLT WITH INNER HEX ROUND HEAD, SELF-LOCKING $1.34 To Order
Photo Part No Description Price (each) Stock
WHT003252 BOLT HEX HEAD WITH SHOULDER SELF-LOCKING $3.11 IN STOCK
Photo Part No Description Price (each) Stock
4ML698221A REPAIR KIT $305.79 To Order
4ML698221 REPAIR KIT $68.91 To Order
Photo Part No Description Price (each) Stock
4ML615425 BRAKE CARRIER WITH PAD RETAINING PIN $448.95 To Order
4ML615425E BRAKE CARRIER WITH PAD RETAINING PIN $955.64 To Order
4ML615425A BRAKE CARRIER WITH PAD RETAINING PIN $955.64 To Order
...and 9 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
7N0698647A 1 SET PROTECTIVE SLEEVES FOR GUIDE PINS $29.39 To Order
Photo Part No Description Price (each) Stock
N91126801 RIBBED BOLT $5.85 To Order
Photo Part No Description Price (each) Stock
4M0698451BH 1 SET OF BRAKE PADS FOR DISC BRAKE $758.54 To Order
Photo Part No Description Price (each) Stock
4M0615121D SENDER WIRE (PAD WEAR INDICATOR) $50.59 To Order
Photo Part No Description Price (each) Stock
4M0615601M CERAMIC BRAKE DISK VENTED REAR LEFT 19" 370 X 30 $10,467.76 IN STOCK
4M0615602A CERAMIC BRAKE DISK VENTED REAR RIGHT 19" 370 X 30 $10,467.76 IN STOCK
Photo Part No Description Price (each) Stock
N10648301 HEX SOCKET COUNTERSUNK BOLT $1.19 IN STOCK
Photo Part No Description Price (each) Stock
4M0615611B COVER PLATE FOR BRAKE DISC $63.25 To Order
4M0615612B COVER PLATE FOR BRAKE DISC $63.25 To Order
Photo Part No Description Price (each) Stock
N10741402 HEXAGON SOCKET FLAT HEAD BOLT $1.43 To Order
Photo Part No Description Price (each) Stock
6X0973722G FLAT CONTACT HOUSING WITH CONTACT LOCKING MECHANISM $16.95 To Order
Photo Part No Description Price (each) Stock
LENGTH-MEASURING DEVICE Enquire To Order
Photo Part No Description Price (each) Stock
G000650 SOLID LUBRICANT PASTE $139.08 To Order
Photo Part No Description Price (each) Stock
G052150A2 LITHIUM LUBRICATING GREASE $452.08 To Order
View All

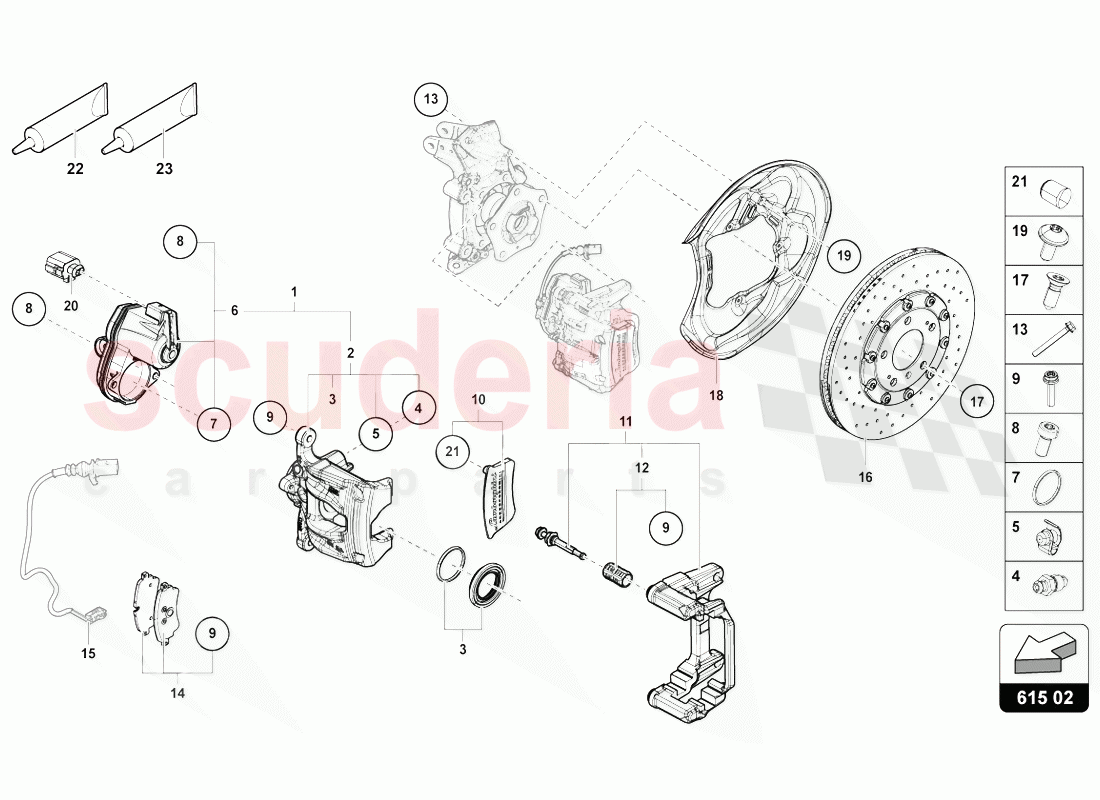

FIXED-CALLIPER BRAKE of Lamborghini Lamborghini Urus (2018-2019) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 4ML615403G
BRAKE CALIPER HOUSING WITH SERVOMOTOR
LEFT REAR GREY-LEFT REAR GREY 		$1,834.69 1
1 4ML615404G
BRAKE CALIPER HOUSING WITH SERVOMOTOR
RIGHT REAR GREY-RIGHT REAR GREY 		$1,814.52 1
1 4ML615403H
BRAKE CALIPER HOUSING WITH SERVOMOTOR
LEFT REAR YELLOW-LEFT REAR YELLOW 		$1,294.38 1
1 4ML615404H
BRAKE CALIPER HOUSING WITH SERVOMOTOR
RIGHT REAR YELLOW-RIGHT REAR YELLOW 		$1,294.38 1
1 4ML615403F
BRAKE CALIPER HOUSING WITH SERVOMOTOR
LEFT REAR BLACK GLOSS-LEFT REAR BLACK GLOSS 		$1,251.33 1
1 4ML615404F
BRAKE CALIPER HOUSING WITH SERVOMOTOR
RIGHT REAR BLACK GLOSS-RIGHT REAR BLACK GLOSS 		$1,251.33 1
1 4ML615403J
BRAKE CALIPER HOUSING WITH SERVOMOTOR
LEFT REAR ORANGE-LEFT REAR ORANGE 		$1,294.38 1
1 4ML615404J
BRAKE CALIPER HOUSING WITH SERVOMOTOR
RIGHT REAR ORANGE-RIGHT REAR ORANGE 		$1,821.23 1
1 4ML615403K
BRAKE CALIPER HOUSING WITH SERVOMOTOR
LEFT REAR RED-LEFT REAR RED 		$1,834.69 1
1 4ML615404K
BRAKE CALIPER HOUSING WITH SERVOMOTOR
RIGHT REAR RED-RIGHT REAR RED 		$1,821.23 1
1 4ML615403L
BRAKE CALIPER HOUSING WITH SERVOMOTOR
LEFT REAR GREEN-LEFT REAR GREEN 		$1,294.38 1
1 4ML615404L
BRAKE CALIPER HOUSING WITH SERVOMOTOR
RIGHT REAR GREEN-RIGHT REAR GREEN 		$1,821.23 1
2 BRAKE CALIPER HOUSING
INCLUDED IN REF.:- 1 		- - Enquire
3 36A698671
SET OF GASKETS FOR BRAKE CALIPER HOUSING 		$40.59 2
4 1K0615273C
BREATHER VALVE 		$12.70 2
5 4H0611483
DUST CAP 		$7.32 2
6 4M0998281
SERVOMOTOR FOR BRAKE CALLIPER HOUSING WITH ASSEMBLY PARTS
LEFT A. RIGHT 		$708.33 2
7 4E0615137
O-RING 		$7.68 2
8 N10285506
SOCKET HEAD BOLT WITH INNER HEX ROUND HEAD, SELF-LOCKING
M6X12 		$1.34 (81.4% off) 4
9 WHT003252
BOLT HEX HEAD WITH SHOULDER SELF-LOCKING
M9X1X37
IN STOCK 		$3.11 (56.1% off) 1
10 4ML698221A
REPAIR KIT
BLACK LOGO 		$305.79 1
10 4ML698221
REPAIR KIT
WHITE LOGO 		$68.91 1
11 4ML615425
BRAKE CARRIER WITH PAD RETAINING PIN
LEFT REAR BLACK GLOSS 		$448.95 1
11 4ML615425E
BRAKE CARRIER WITH PAD RETAINING PIN
LEFT REAR GREEN 		$955.64 1
11 4ML615425A
BRAKE CARRIER WITH PAD RETAINING PIN
LEFT REAR GREY 		$955.64 1
11 4ML615425C
BRAKE CARRIER WITH PAD RETAINING PIN
LEFT REAR ORANGE 		$513.44 1
11 4ML615425D
BRAKE CARRIER WITH PAD RETAINING PIN
LEFT REAR RED 		$938.17 1
11 4ML615425B
BRAKE CARRIER WITH PAD RETAINING PIN
LEFT REAR YELLOW 		$955.64 1
11 4ML615426
BRAKE CARRIER WITH PAD RETAINING PIN
RIGHT REAR BLACK GLOSS 		$448.95 1
11 4ML615426E
BRAKE CARRIER WITH PAD RETAINING PIN
RIGHT REAR GREEN 		$957.01 1
11 4ML615426A
BRAKE CARRIER WITH PAD RETAINING PIN
RIGHT REAR GREY 		$955.64 1
11 4ML615426C
BRAKE CARRIER WITH PAD RETAINING PIN
RIGHT REAR ORANGE 		$514.78 1
11 4ML615426D
BRAKE CARRIER WITH PAD RETAINING PIN
RIGHT REAR RED 		$938.17 1
11 4ML615426B
BRAKE CARRIER WITH PAD RETAINING PIN
RIGHT REAR YELLOW 		$955.64 1
12 7N0698647A
1 SET PROTECTIVE SLEEVES FOR GUIDE PINS 		$29.39 2
13 N91126801
RIBBED BOLT
M12X1,5X62 		$5.85 4
14 4M0698451BH
1 SET OF BRAKE PADS FOR DISC BRAKE
370X30MM REAR 		$758.54 1
15 4M0615121D
SENDER WIRE (PAD WEAR INDICATOR)
REAR 		$50.59 2
16 4M0615601M
CERAMIC BRAKE DISK VENTED REAR LEFT 19" 370 X 30
370X30MM PUNCHED LEFT REAR
IN STOCK 		$10,467.76 1
16 4M0615602A
CERAMIC BRAKE DISK VENTED REAR RIGHT 19" 370 X 30
370X30MM PUNCHED RIGHT REAR
IN STOCK 		$10,467.76 1
17 N10648301
HEX SOCKET COUNTERSUNK BOLT
M6X16
IN STOCK 		$1.19 (83.7% off) 1
18 4M0615611B
COVER PLATE FOR BRAKE DISC
LEFT REAR 		$63.25 1
18 4M0615612B
COVER PLATE FOR BRAKE DISC
RIGHT REAR 		$63.25 1
19 N10741402
HEXAGON SOCKET FLAT HEAD BOLT
M6X14 		$1.43 8
20 6X0973722G
FLAT CONTACT HOUSING WITH CONTACT LOCKING MECHANISM
2 PIN BLACK GREY 		$16.95 2
21 LENGTH-MEASURING DEVICE
INCLUDED IN REF.:- 10 		- - Enquire
22 G000650
SOLID LUBRICANT PASTE
100G 		$139.08 1
23 G052150A2
LITHIUM LUBRICATING GREASE
180G 		$452.08 1
