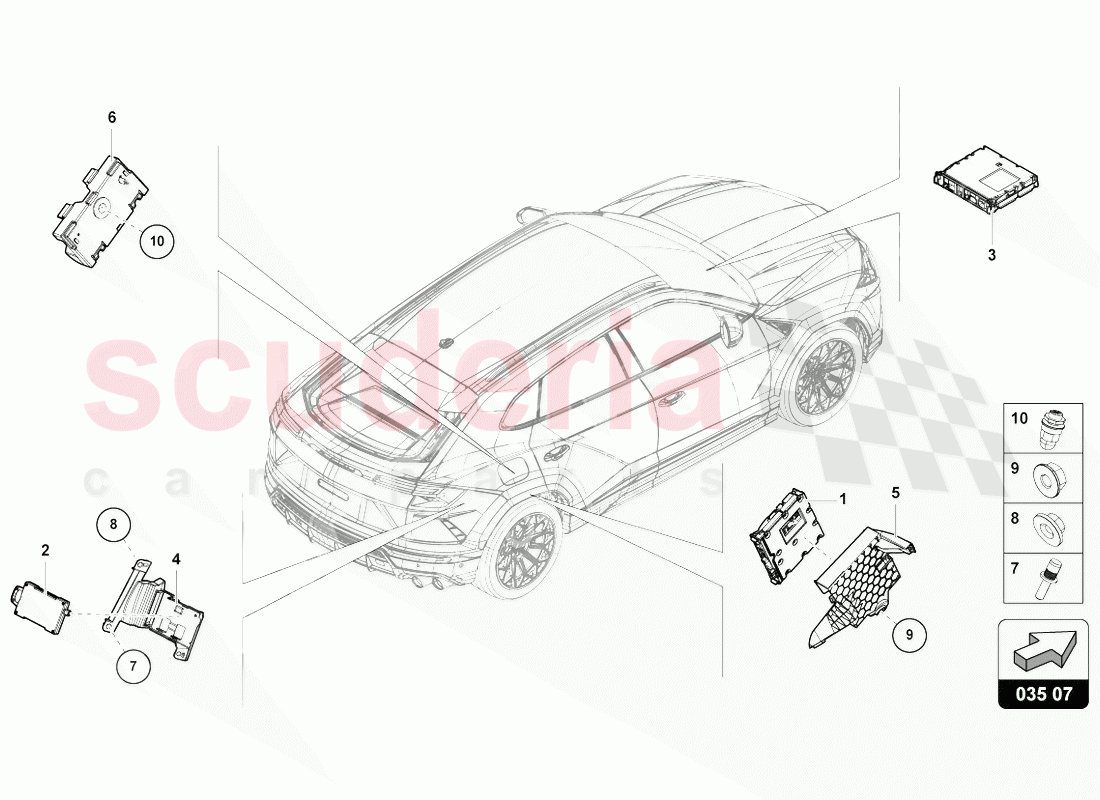

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4N0919805	CHIP-CARD READER FOR TV SYSTEM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8V0919146G	TV TUNER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M8035821	RETAINER FOR CONTROL UNIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M8907815	BRACKET FOR TV RECEIVER (TUNER)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4H0035570	DISTURBANCE SUPPRESSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10585401	BLIND RIVET STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91173301	HEX. NUT WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N01508210	HEXAGON COLLAR NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT000868	WELD STUDS WITH CAP NUTS	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4N0919191B	TV TUNER	4N0919191B TV TUNER FROM VIN KLA00647-DIGITAL	-	1	Enquire
1	4N0919191A	TV TUNER	4N0919191A TV TUNER UNTIL VIN KLA00646-DIGITAL	-	-	Enquire
1	8V0919130E	TV TUNER	8V0919130E TV TUNER ONLY FOR BRAZILIAN MARKET-DIGITAL	-	1	Enquire
2	4N0919805	CHIP-CARD READER FOR TV SYSTEM	4N0919805 CHIP-CARD READER FOR TV SYSTEM	-	1	Enquire
3	8V0919146G	TV TUNER	8V0919146G TV TUNER DIGITAL	-	1	Enquire
4	4M8035821	RETAINER FOR CONTROL UNIT	4M8035821 RETAINER FOR CONTROL UNIT	-	1	Enquire
5	4M8907815	BRACKET FOR TV RECEIVER (TUNER)	4M8907815 BRACKET FOR TV RECEIVER (TUNER)	-	1	Enquire
6	4H0035570	DISTURBANCE SUPPRESSOR	4H0035570 DISTURBANCE SUPPRESSOR	-	1	Enquire
7	N10585401	BLIND RIVET STUD	N10585401 BLIND RIVET STUD M6X16,5/0,5-3	-	3	Enquire
8	N91173301	HEX. NUT WITH WASHER	N91173301 HEX. NUT WITH WASHER	-	3	Enquire
9	N01508210	HEXAGON COLLAR NUT	N01508210 HEXAGON COLLAR NUT M6	-	2	Enquire
10	WHT000868	WELD STUDS WITH CAP NUTS	WHT000868 WELD STUDS WITH CAP NUTS M6X14,8	-	1	Enquire
