Voltage Wiring Set For High-Voltage Battery And Power Electronics

Lamborghini Revuelto Coupe

Illustration Number: 970.04.00

Find Your Part

Lamborghini Revuelto Coupe - VOLTAGE WIRING SET FOR HIGH-VOLTAGE BATTERY AND POWER ELECTRONICS (970.04.00)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
47B971097C HARNESS Enquire To Order
Photo Part No Description Price (each) Stock
47B971449 HARNESS DC/DC 12V Enquire To Order
Photo Part No Description Price (each) Stock
9J1971850 CABLE TIE 3,5G Enquire To Order
Photo Part No Description Price (each) Stock
N10196103 OVAL SOCKET HEAD BOLT WITH HEX DRIVE Enquire IN STOCK
Photo Part No Description Price (each) Stock
3D0971838N CABLE TIES WITH BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
N10623102 CABLE TIES Enquire To Order
View All

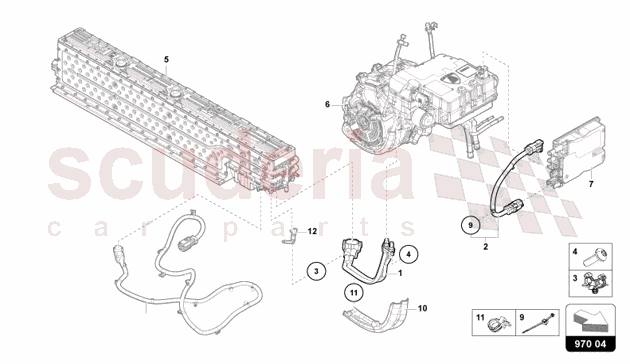

VOLTAGE WIRING SET FOR HIGH-VOLTAGE BATTERY AND POWER ELECTRONICS of Lamborghini Lamborghini Revuelto Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 47B971097C
HARNESS 		- 1 Enquire
2 47B971449
HARNESS DC/DC 12V 		- 1 Enquire
3 9J1971850
CABLE TIE 3,5G
BLACK 6,5/0,6-3,0 		- 1 Enquire
4 N10196103
OVAL SOCKET HEAD BOLT WITH HEX DRIVE
M6X18
IN STOCK 		- 1 Enquire
9 3D0971838N
CABLE TIES WITH BRACKET 		- 1 Enquire
11 N10623102
CABLE TIES
C4.6X193 OUTER 		- 1 Enquire
