SECURING PARTS of Lamborghini Lamborghini Revuelto Coupe

View All

Lamborghini Revuelto Coupe - SECURING PARTS (199.01.00)

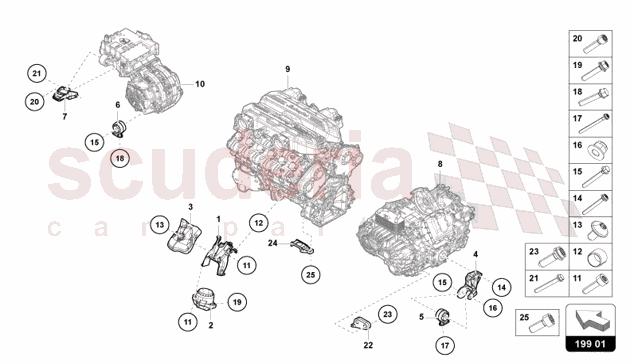

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	47B199307	ENGINE BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47B199381A	MOUNTING,POWER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47B199387	SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47B199334C	SUPPORTO CAMBIO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47B599438E	(SUPPORTO CAMBIO CON BOCCOLA DX	Enquire	To Order
	47B599438F	SUPPORTO CAMBIO CON BOCCOLA SX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47B599438	TRANSMISSION MOUNT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47B199497	BRACKET	Enquire	To Order
	47B199498	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91135801	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90904501	GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10786201	HEX SOCKET OVAL HEAD COLLARED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10831701	12-POINT SOCKET M8X60	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10640301	HEX COLLARED BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10106403	HEXAGON COLLAR NUT SELF LOCKING M12 X 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10714501	SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10314506	HEX COLLARED BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91148901	DUO BOLT W.WASHER M12X1.5X60-S22	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10660901	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10272202	HEXAGON HEAD BOLT (COMBI)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7M199632B	BRACKET CRASH RETAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91075801	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	47B199307	ENGINE BRACKET	47B199307 ENGINE BRACKET	-	1	Enquire
2	47B199381A	MOUNTING,POWER	47B199381A MOUNTING,POWER	-	1	Enquire
3	47B199387	SHIELD	47B199387 SHIELD	-	1	Enquire
4	47B199334C	SUPPORTO CAMBIO	47B199334C SUPPORTO CAMBIO	-	1	Enquire
5	47B599438E	(SUPPORTO CAMBIO CON BOCCOLA DX	47B599438E (SUPPORTO CAMBIO CON BOCCOLA DX LEFT	-	1	Enquire
5	47B599438F	SUPPORTO CAMBIO CON BOCCOLA SX	47B599438F SUPPORTO CAMBIO CON BOCCOLA SX RIGHT	-	1	Enquire
6	47B599438	TRANSMISSION MOUNT	47B599438 TRANSMISSION MOUNT REAR	-	1	Enquire
7	47B199497	BRACKET	47B199497 BRACKET RIGHT FRONT	-	1	Enquire
7	47B199498	BRACKET	47B199498 BRACKET LEFT FRONT	-	1	Enquire
11	N91135801	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	N91135801 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD M10X40	-	1	Enquire
12	N90904501	GROMMET	N90904501 GROMMET	-	1	Enquire
13	N10786201	HEX SOCKET OVAL HEAD COLLARED	N10786201 HEX SOCKET OVAL HEAD COLLARED M6X12	-	1	Enquire
14	N10831701	12-POINT SOCKET M8X60	N10831701 12-POINT SOCKET M8X60 M8X60	-	1	Enquire
15	N10640301	HEX COLLARED BOLT	N10640301 HEX COLLARED BOLT M12X1,5X100	-	1	Enquire
16	N10106403	HEXAGON COLLAR NUT SELF LOCKING M12 X 1.5	N10106403 HEXAGON COLLAR NUT SELF LOCKING M12 X 1.5 M12X1,5	-	1	Enquire
17	N10714501	SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD	N10714501 SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD M8X90X80	-	1	Enquire
18	N10314506	HEX COLLARED BOLT	N10314506 HEX COLLARED BOLT M10X50	-	1	Enquire
19	N91148901	DUO BOLT W.WASHER M12X1.5X60-S22	N91148901 DUO BOLT W.WASHER M12X1.5X60-S22 M12X1,5X60	-	1	Enquire
20	N10660901	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	N10660901 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD M10X40	-	1	Enquire
21	N10272202	HEXAGON HEAD BOLT (COMBI)	N10272202 HEXAGON HEAD BOLT (COMBI) M12X1,5X95	-	1	Enquire
22	7M199632B	BRACKET CRASH RETAINER	7M199632B BRACKET CRASH RETAINER	-	1	Enquire
23	N91075801	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	N91075801 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	-	1	Enquire
