Lamborghini Revuelto Coupe

Illustration Number: 131.04.00

Find Your Part

Lamborghini Revuelto Coupe - LINE (131.04.00)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
47B131597 Tube Enquire To Order
Photo Part No Description Price (each) Stock
47B131583 Tube Enquire To Order
Photo Part No Description Price (each) Stock
47B131584 Tube Enquire To Order
Photo Part No Description Price (each) Stock
47B131628A Tube Enquire To Order
Photo Part No Description Price (each) Stock
N90828201 CORRUGATED TUBE G6.5-NW17 Enquire To Order
Photo Part No Description Price (each) Stock
3A0971842 HOSE BRACKET Enquire To Order
View All

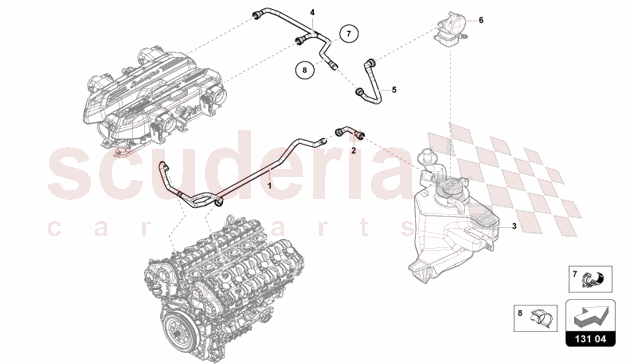

LINE of Lamborghini Lamborghini Revuelto Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 47B131597
Tube 		- 1 Enquire
2 47B131583
Tube 		- 1 Enquire
4 47B131584
Tube 		- 1 Enquire
5 47B131628A
Tube 		- 1 Enquire
7 N90828201
CORRUGATED TUBE G6.5-NW17 		- 1 Enquire
8 3A0971842
HOSE BRACKET
FOR: 		- 1 Enquire
