Chain Low Parts

Lamborghini Revuelto Coupe

Illustration Number: 109.01.00

Find Your Part

Lamborghini Revuelto Coupe - CHAIN LOW PARTS (109.01.00)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
7M109120D ROLLER CHAIN Enquire To Order
Photo Part No Description Price (each) Stock
59109467AF CHAIN TENSIONER Enquire To Order
Photo Part No Description Price (each) Stock
7M109465E ROLLER CHAIN Enquire To Order
Photo Part No Description Price (each) Stock
7M109077D SPROCKET Enquire To Order
Photo Part No Description Price (each) Stock
7M115235C GUIDE RAIL Enquire To Order
Photo Part No Description Price (each) Stock
7M109498B KETTENSPANNER Enquire To Order
Photo Part No Description Price (each) Stock
7M109570D SPROCKET Enquire To Order
Photo Part No Description Price (each) Stock
59109426S PIVOT PIN Enquire To Order
Photo Part No Description Price (each) Stock
N10554005 ROUND HD. SCREW Enquire To Order
Photo Part No Description Price (each) Stock
WHT005008A SOCKET HEAD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
N91033301 HEXAGON HEAD BOLT (COMBI) Enquire To Order
View All

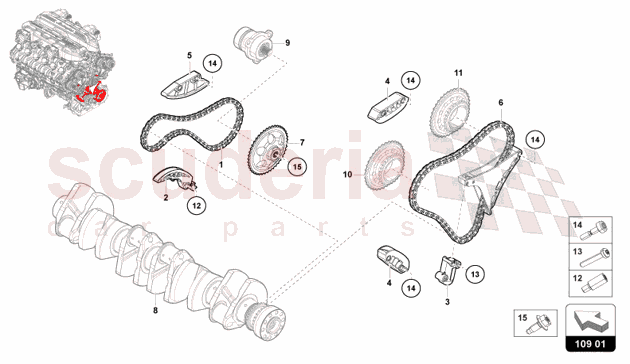

CHAIN LOW PARTS of Lamborghini Lamborghini Revuelto Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 7M109120D
ROLLER CHAIN 		- 1 Enquire
2 59109467AF
CHAIN TENSIONER 		- 1 Enquire
3 7M109465E
ROLLER CHAIN 		- 1 Enquire
4 7M109077D
SPROCKET 		- 1 Enquire
5 7M115235C
GUIDE RAIL 		- 1 Enquire
6 7M109498B
KETTENSPANNER 		- 1 Enquire
7 7M109570D
SPROCKET 		- 1 Enquire
12 59109426S
PIVOT PIN 		- 1 Enquire
13 N10554005
ROUND HD. SCREW
M6X35 		- 1 Enquire
14 WHT005008A
SOCKET HEAD BOLT
M8X35 		- 1 Enquire
15 N91033301
HEXAGON HEAD BOLT (COMBI)
M8X22 		- 1 Enquire
