Rear Brakes - Carboceramic

Lamborghini Murcielago LP670

Find Your Part

Lamborghini Murcielago LP670 - Rear Brakes - Carboceramic

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

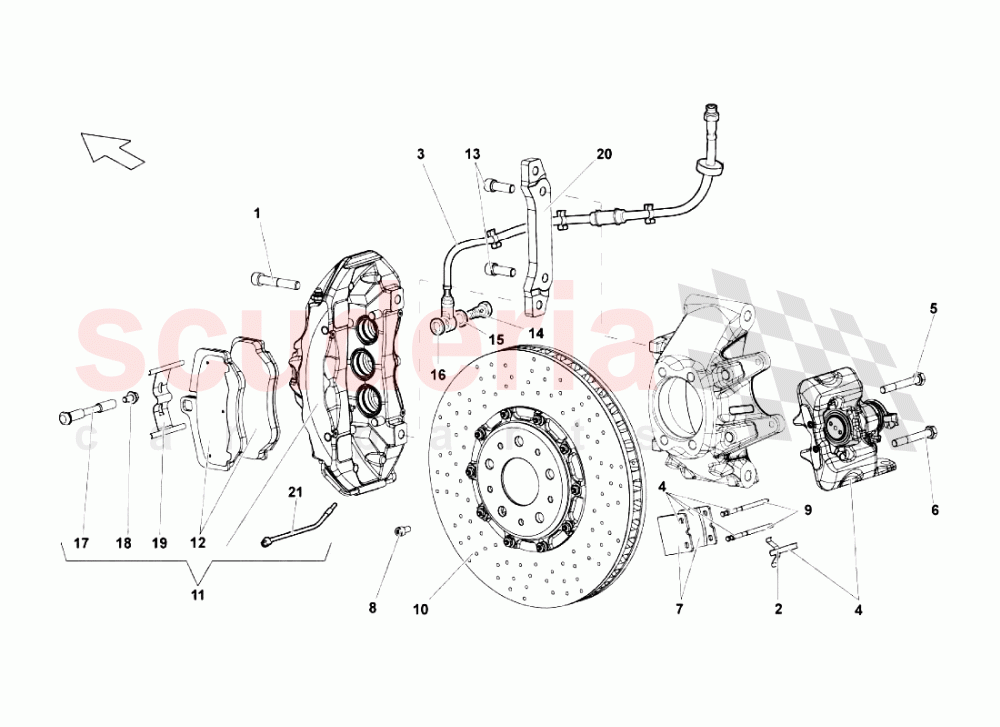

Rear Brakes - Carboceramic of Lamborghini Lamborghini Murcielago LP670 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 N10065003
SCREW M12X1,5X70 		- 4 Enquire
003 410611775A
HOSE 		- 2 Enquire
004 410615404C
RH BRAKE CALIPER 		- 1 Enquire
004 410615403C
LH BRAKE CALIPER 		- 1 Enquire
005 WHT002636
SCREW 		- 2 Enquire
006 WHT002636
SCREW 		- 2 Enquire
007 410798041A
BRAKE PAD SET 		- 1 Enquire
008 N90972501
HEXAGON SOCKET HEAD BOLT 		- 6 Enquire
010 410615601B
LH REAR BRAKE 		- 1 Enquire
010 410615602B
RH REAR BRAKE 		- 1 Enquire
011 410615405M
BLACK LH REAR CALIPER 		- 1 Enquire
011 410615406P
RH REAR BRAKE - SILVER 		- 1 Enquire
011 410615406R
ORANGE RH REAR CALIPER 		- 1 Enquire
011 410615406N
YELLOW RH REAR CALIPER 		- 1 Enquire
011 410615405N
YELLOW LH REAR CALIPER 		- 1 Enquire
011 410615405P
LH REAR BRAKE - SILVER 		- 1 Enquire
011 410615405R
ORANGE LH REAR CALIPER 		- 1 Enquire
011 410615406M
BLACK RH REAR CALIPER 		- 1 Enquire
012 4S0698151AA
1 SET OF BRAKE PADS FOR DISK BRAKE 		- 1 Enquire
013 WHT004089
SCREW M12X1,25X35 		- 4 Enquire
014 WHT003303
SCREW WITH HOLE 		- 2 Enquire
015 WHT001191
WASHER 		- 2 Enquire
016 WHT001191
WASHER 		- 2 Enquire
020 410615384
BRACKET 		- 2 Enquire
021 400698137
BRAKE PAD WEAR SENSOR 		- 2 Enquire
