Exhaust System 1

Find Your Part

Lamborghini Murcielago LP670 - Exhaust System 1

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

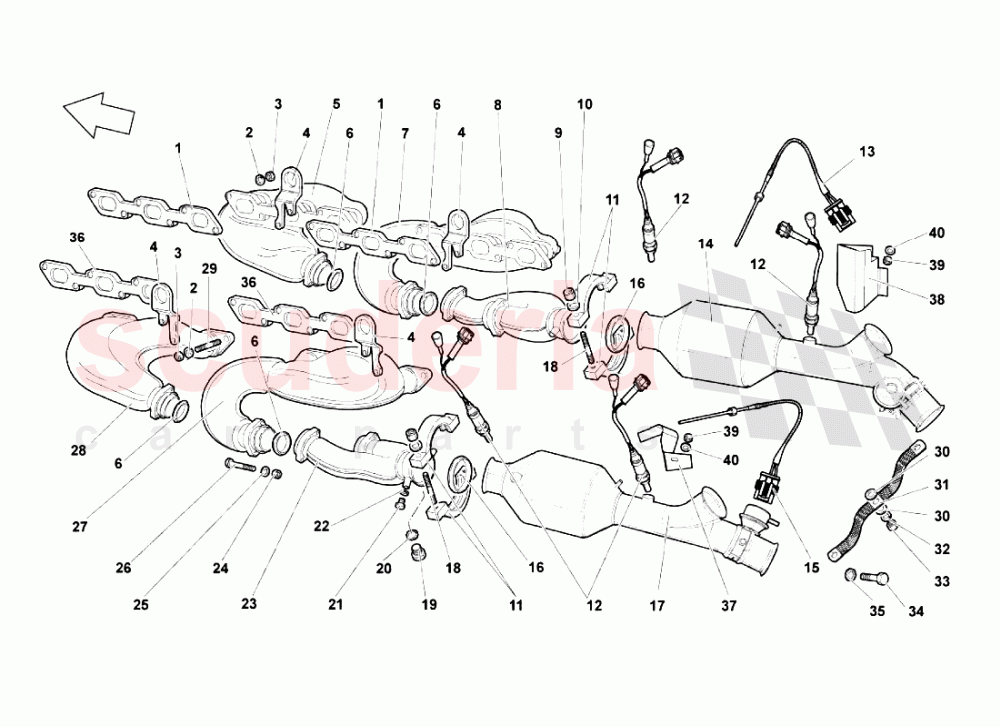

Exhaust System 1 of Lamborghini Lamborghini Murcielago LP670 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 7M253039A
LEFT GASKET
Alternative use : 111532 		$118.15 2
002 86311519
WASHER 		$2.42 24
003 N90522002
NUT 8X1,25 		$2.35 (67% off) 24
004 7M199079A
HOOK 		$91.14 4
005 7M253172A
FRONT RIGHT EXHAUST MANIFOLD (ONLY CHINA - SOUTH AFRICA) 		$2,184.16 1
006 7M251707
BI-CONE RING 		$131.18 4
007 7M253034A
REAR RIGHT EXHAUST MANIFOLD (ONLY CHINA - SOUTH AFRICA) 		$2,385.74 1
008 7M133776
RIGHT THREE-WAY PIPE 		$1,599.47 1
009 N2214621
4 NUT M8 		- 4 Enquire
010 WHT001185
WASHER 		$0.27 (96.3% off) 8
011 417251143
CLAMP 		$1,158.61 2
012 6A906262AT
LAMBDA PROBE 		$149.24 (58.3% off) 2
012 36906262J
FRONT OXYGEN SENSOR 		$465.08 2
013 410919529A
THERMOCOUPLE 		$379.00 1
014 7M251718K
FRONT RIGHT CATALYST 		$10,201.58 1
015 410919529A
THERMOCOUPLE 		$379.00 1
016 400131797
Seal Exhaust 		$76.63 4
017 7M251717L
FRONT LEFT CATALYST 		$9,677.39 1
018 N444416
4 STUD BOLT 		- 8 Enquire
019 N297042
PLUG M18X1.50 		- 1 Enquire
020 N91122801
WASHER 18,5X24X1,5 		$3.05 (57.5% off) 1
021 410251451
PLUG 		$17.74 2
022 WHT003272
WASHER 10.50X15.50X1.5 		$0.68 2
023 7M133775
LEFT THREE-WAY PIPE 		$1,599.47 1
024 N2214621
4 NUT M8 		- 8 Enquire
025 WHT001185
WASHER 		$0.27 (96.3% off) 8
026 N1035213
SCREW M8X1,25X55 		- 8 Enquire
027 7M253033A
REAR LEFT EXHAUST MANIFOLD (ONLY CHINA - SOUTH AFRICA) 		$2,385.74 8
028 7M253171A
FRONT LEFT EXHAUST MANIFOLD (ONLY CHINA - SOUTH AFRICA) 		$2,184.16 1
029 WHT003028
THREADED PIN 		$22.30 1
036 7M253039A
LEFT GASKET
Alternative use : 111532 		$118.15 2
037 410863553
LH PROTECTION 		$131.18 1
038 410863554
RH PROTECTION 		$131.18 1
039 WHT002953
NUT M6 		$3.51 2
040 N91115501
WASHER 		$1.25 (82.9% off) 2
