Steering Rack of Lamborghini Lamborghini Murcielago LP670

View All

Lamborghini Murcielago LP670 - Steering Rack

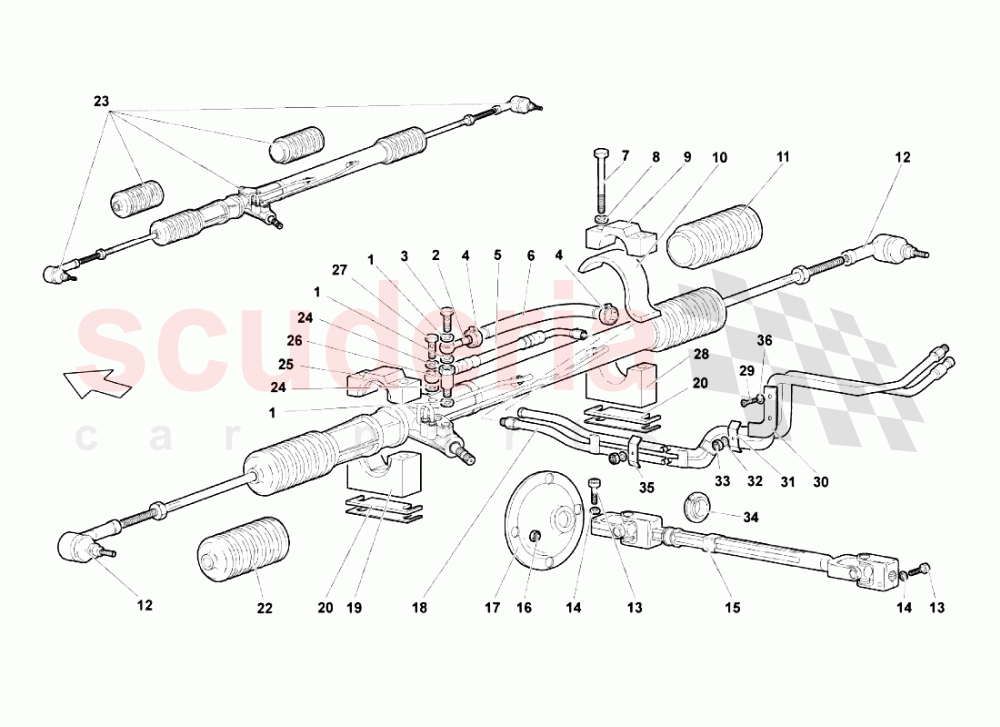

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	N0138481	WASHER	N0138481 WASHER	$0.70 MSRP: ~~7.28~~ (90.4% off)	3
002	413422247A	CONNECTOR	413422247A CONNECTOR	$56.40	1
003	400422279A	SCREW WITH HOLE	400422279A SCREW WITH HOLE	$11.41	1
004	N245097	CLAMP	N245097 CLAMP	-	2	Enquire
005	414422895A	PIPE	414422895A PIPE	$387.11	1
006	410422890A	PIPE	410422890A PIPE	$72.44	1
007	N10576802	SCREW M10X105X26	N10576802 SCREW M10X105X26	$5.11	4
008	N122115	WASHER	N122115 WASHER	-	4	Enquire
009	410422761A	U-BOLT	410422761A U-BOLT	$618.29	1
010	400422850	RUBBER SHIM	400422850 RUBBER SHIM	$19.26	1
011	410419831	BOOT	410419831 BOOT	$1,282.25	1
012	400419811A	Ball Joint Coupling	400419811A Ball Joint Coupling	$1,377.68	1
013	WHT003310	SCREW M8X25	WHT003310 SCREW M8X25	$7.32	2
014	410422395	WASHER	410422395 WASHER	$10.76	2
015	410419515A	JOINTED SHAFT	410419515A JOINTED SHAFT	$633.06	1
016	N1100637	NUT M6	N1100637 NUT M6	-	4	Enquire
017	410422326	GASKET	410422326 GASKET	$270.18	1
018	410422867C	PIPE (E-GEAR)	410422867C PIPE (E-GEAR)	$2,795.69	1
018	410422867B	PIPE (MANUAL GEARBOX)	410422867B PIPE (MANUAL GEARBOX)	$3,461.01	1
019	410422761	SUPPORT	410422761 SUPPORT	$1,158.61	1
020	410422127A	1 MM ADJUSTMENT	410422127A 1 MM ADJUSTMENT	$18.16	4
022	410419831	BOOT	410419831 BOOT	$1,282.25	1
023	414422061C	POWER STEERING RACK	414422061C POWER STEERING RACK	$17,087.43	1
024	N138492	WASHER	N138492 WASHER	-	2	Enquire
025	410422874	U-BOLT	410422874 U-BOLT	$1,471.77	1
026	410422293B	CONNECTOR	410422293B CONNECTOR	$188.87	1
027	400422269A	SCREW WITH HOLE	400422269A SCREW WITH HOLE	$19.36	1
028	410422873	SUPPORT	410422873 SUPPORT	$424.73	1
029	N102649	SCREW M5X20	N102649 SCREW M5X20	-	2	Enquire
030	410422078	SHEET	410422078 SHEET	$348.12	1
031	410422477A	PLATE	410422477A PLATE	$25.55	2
032	N10612001	WASHER	N10612001 WASHER	$0.48	3
033	N211963	NUT M5	N211963 NUT M5	-	3	Enquire
034	410419548	BUSHING	410419548 BUSHING	$118.56	1
035	410422477A	PLATE	410422477A PLATE	$25.55	1
036	N115124	WASHER	N115124 WASHER	-	2	Enquire
