Steering 1 of Lamborghini Lamborghini Murcielago LP640 Roadster

View All

Lamborghini Murcielago LP640 Roadster - Steering 1

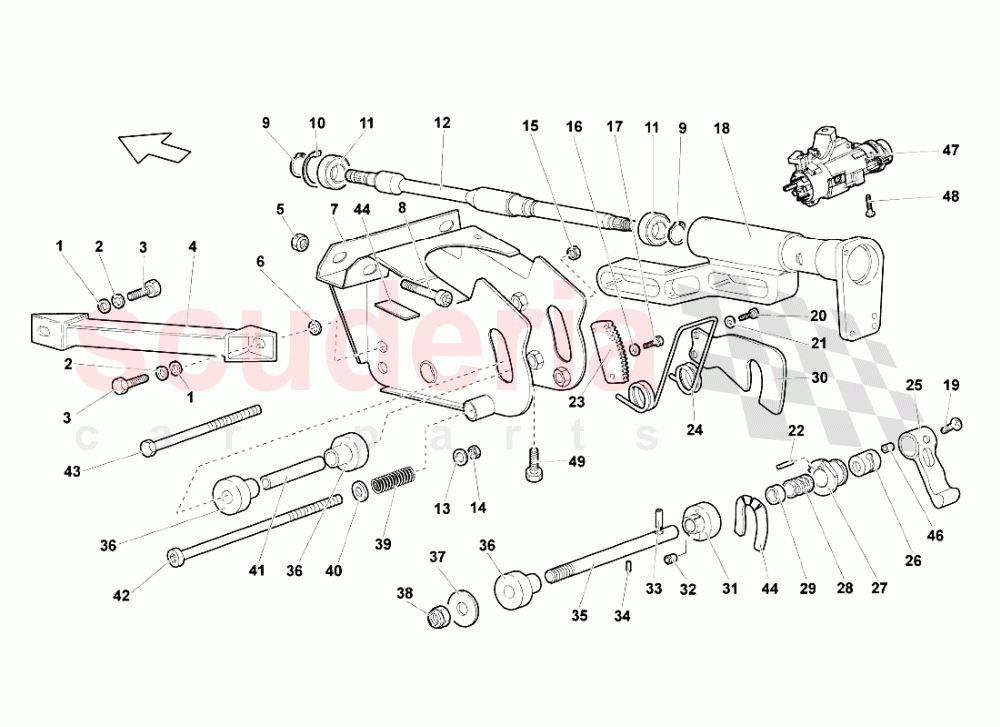

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	N90179103	WASHER 18X8,4X2,5	N90179103 WASHER 18X8,4X2,5	-	2	Enquire
002	WHT000771	WASHER	WHT000771 WASHER	-	2	Enquire
003	N01024032	SCREW M8X20	N01024032 SCREW M8X20	-	2	Enquire
004	417419281A	STRUT	417419281A STRUT	-	1	Enquire
005	N10609202	HEXAGON COLLAR NUT	N10609202 HEXAGON COLLAR NUT	-	2	Enquire
006	410407295	1.0 MM ADJUSTMENT SHIM	410407295 1.0 MM ADJUSTMENT SHIM	-	1	Enquire
007	417419087A	SUPPORT	417419087A SUPPORT	-	1	Enquire
008	N10651701	SCREW	N10651701 SCREW	-	2	Enquire
009	WHT002646	RETAINING RING	WHT002646 RETAINING RING	-	2	Enquire
010	WHT002647	RETAINING RING	WHT002647 RETAINING RING	-	1	Enquire
011	410419905	BEARING	410419905 BEARING	-	2	Enquire
012	410419967A	SHAFT	410419967A SHAFT	-	1	Enquire
013	WHT000771	WASHER	WHT000771 WASHER	-	1	Enquire
014	N01100845	HEXAGON NUT	N01100845 HEXAGON NUT	-	1	Enquire
015	N01100845	HEXAGON NUT	N01100845 HEXAGON NUT	-	1	Enquire
016	WHT001187	WASHER	WHT001187 WASHER	-	2	Enquire
017	N0447347	SCREW M5X16	N0447347 SCREW M5X16	-	2	Enquire
018	410419561A	STEERING COLUMN SUPPORT (E-GEAR)	410419561A STEERING COLUMN SUPPORT (E-GEAR)	-	1	Enquire
018	410419561	STEERING COLUMN SUPPORT (MANUAL GEARBOX)	410419561 STEERING COLUMN SUPPORT (MANUAL GEARBOX)	-	1	Enquire
019	WHT003308	SCREW M4X8 (STANDARD)	WHT003308 SCREW M4X8 (STANDARD)	-	2	Enquire
020	N10580702	SCREW	N10580702 SCREW	-	2	Enquire
021	N10612001	WASHER	N10612001 WASHER	-	2	Enquire
022	N10692901	PIN	N10692901 PIN	-	1	Enquire
023	410419301	TOOTHED STRIKER	410419301 TOOTHED STRIKER	-	1	Enquire
024	410419341	SPRING	410419341 SPRING	-	1	Enquire
025	410419355	LEVER	410419355 LEVER	-	1	Enquire
026	410419202	SLEEVE	410419202 SLEEVE	-	1	Enquire
027	410422283	TOOTHED TAPPET	410422283 TOOTHED TAPPET	-	1	Enquire
028	410419209	SPRING	410419209 SPRING	-	1	Enquire
029	410419758	WASHER	410419758 WASHER	-	1	Enquire
030	410419522A	COVER	410419522A COVER	-	1	Enquire
031	410419588	SPACER	410419588 SPACER	-	1	Enquire
032	410419811A	POSITION BALL	410419811A POSITION BALL	-	1	Enquire
033	N10693001	CYLINDER PIN	N10693001 CYLINDER PIN	-	1	Enquire
034	WHT003591	PIN	WHT003591 PIN	-	1	Enquire
035	410419645A	JOURNAL	410419645A JOURNAL	-	1	Enquire
036	410419588A	SPACER	410419588A SPACER	-	1	Enquire
037	410407295D	WASHER	410407295D WASHER	-	1	Enquire
038	N90635001	NUT M12	N90635001 NUT M12	-	1	Enquire
039	410419598	SPRING	410419598 SPRING	-	1	Enquire
040	N01152427	WASHER	N01152427 WASHER	-	1	Enquire
041	410419331B	BUSHING	410419331B BUSHING	-	1	Enquire
042	WHT003070	SCREW M6X90	WHT003070 SCREW M6X90	-	1	Enquire
043	N01037511	SCREW M8X75	N01037511 SCREW M8X75	-	1	Enquire
044	410419780	GASKET	410419780 GASKET	-	1	Enquire
046	410419811	POSITION BALL	410419811 POSITION BALL	-	1	Enquire
047	4B0905851Q	IGNITION SWITCH SET	4B0905851Q IGNITION SWITCH SET	-	1	Enquire
048	410905133	SCREW M8X22	410905133 SCREW M8X22	-	2	Enquire
049	N01024032	SCREW M8X20	N01024032 SCREW M8X20	-	2	Enquire
