Seats And Safety Belts of Lamborghini Lamborghini Murcielago LP640

View All

Lamborghini Murcielago LP640 - Seats And Safety Belts

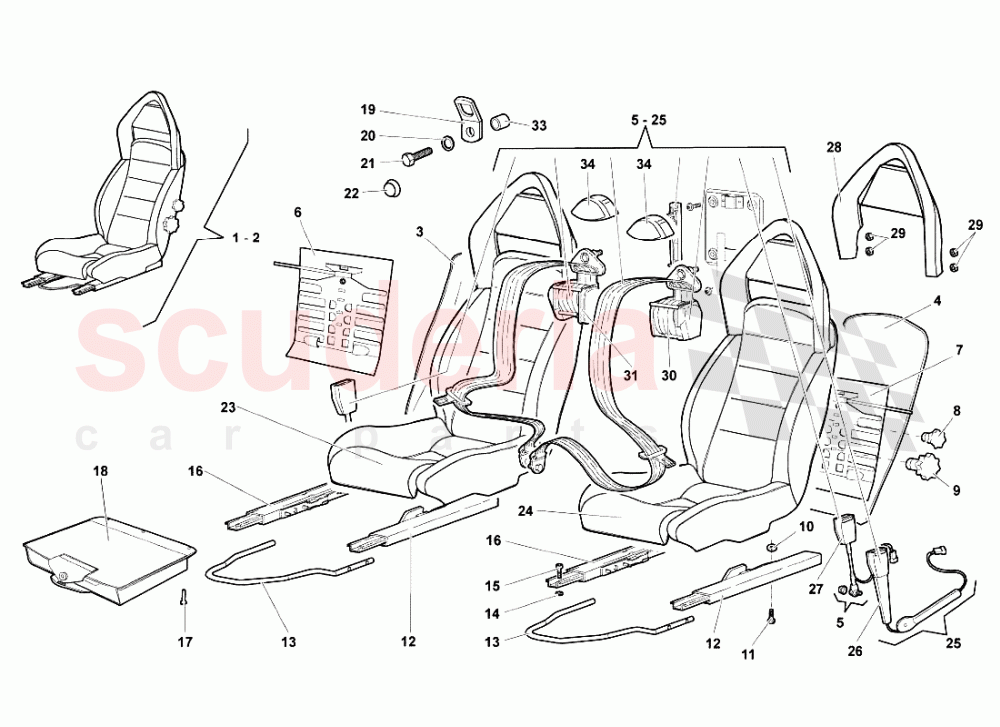

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	410881029	LEFT SEAT (SUPPLY VIN)	410881029 LEFT SEAT (SUPPLY VIN)	-	1	Enquire
001	410881029A	LEFT SEAT (Q-CITURA RHOMBUS STYLE - SUPPLY VIN)	410881029A LEFT SEAT (Q-CITURA RHOMBUS STYLE - SUPPLY VIN)	-	1	Enquire
002	410881030	RIGHT SEAT (SUPPLY VIN)	410881030 RIGHT SEAT (SUPPLY VIN)	-	1	Enquire
002	410881030A	RIGHT SEAT (Q-CITURA RHOMBUS STYLE - SUPPLY VIN)	410881030A RIGHT SEAT (Q-CITURA RHOMBUS STYLE - SUPPLY VIN)	-	1	Enquire
003	75013686	LEFT SEAT REAR COVER (SUPPLY VIN)	75013686 LEFT SEAT REAR COVER (SUPPLY VIN)	-	1	Enquire
004	75013686	LEFT SEAT REAR COVER (SUPPLY VIN)	75013686 LEFT SEAT REAR COVER (SUPPLY VIN)	-	1	Enquire
005	418857447	SEAT BELTS KIT	418857447 SEAT BELTS KIT	-	1	Enquire
006	410881880	BACK-REST ADJU.-RH	410881880 BACK-REST ADJU.-RH	-	1	Enquire
007	410881879	BACK-REST ADJU.-LH	410881879 BACK-REST ADJU.-LH	-	1	Enquire
008	75009199	LUMBAR SUPPORT ADJUSTING HANDLE	75009199 LUMBAR SUPPORT ADJUSTING HANDLE	-	1	Enquire
009	75009198	SEAT BACK ADJUSTMENT KNOB	75009198 SEAT BACK ADJUSTMENT KNOB	-	2	Enquire
010	WHT002962	WASHER 14X8.4X1.5	WHT002962 WASHER 14X8.4X1.5	-	8	Enquire
011	N10644902	SCREW M8X18	N10644902 SCREW M8X18	-	8	Enquire
012	410881219	LH GUIDE	410881219 LH GUIDE	-	2	Enquire
013	410881091B	SEAT LEVER	410881091B SEAT LEVER	-	2	Enquire
014	N0115484	WASHER	N0115484 WASHER	-	4	Enquire
015	N10644902	SCREW M8X18	N10644902 SCREW M8X18	-	8	Enquire
016	410881220	RH GUIDE	410881220 RH GUIDE	-	2	Enquire
017	N91153701	POP RIVET	N91153701 POP RIVET	-	4	Enquire
018	410881581	BRIEFCASE	410881581 BRIEFCASE	-	1	Enquire
023	410881406	SEAT COVER RIGHT (SUPPLY VIN)	410881406 SEAT COVER RIGHT (SUPPLY VIN)	-	1	Enquire
024	410881405	SEAT COVER LEFT (SUPPLY VIN)	410881405 SEAT COVER LEFT (SUPPLY VIN)	-	1	Enquire
027	418880505	BUCKLE	418880505 BUCKLE	-	2	Enquire
028	410881902A	HEAD RESTRAINT WITH COVER RIGHT (WITH LOGO - SUPPLY VIN)	410881902A HEAD RESTRAINT WITH COVER RIGHT (WITH LOGO - SUPPLY VIN)	-	1	Enquire
028	410881901A	HEAD RESTRAINT WITH COVER LEFT (WITH LOGO - SUPPLY VIN)	410881901A HEAD RESTRAINT WITH COVER LEFT (WITH LOGO - SUPPLY VIN)	-	1	Enquire
028	410881901	HEAD RESTRAINT WITH COVER LEFT (SUPPLY VIN)	410881901 HEAD RESTRAINT WITH COVER LEFT (SUPPLY VIN)	-	1	Enquire
028	410881902	HEAD RESTRAINT WITH COVER RIGHT (SUPPLY VIN)	410881902 HEAD RESTRAINT WITH COVER RIGHT (SUPPLY VIN)	-	1	Enquire
029	N01100637	NUT M6	N01100637 NUT M6	-	8	Enquire
034	410898412	ORNAMENT	410898412 ORNAMENT	-	2	Enquire
