REAR COMPARTMENT AREA of Lamborghini Lamborghini Huracan STO

View All

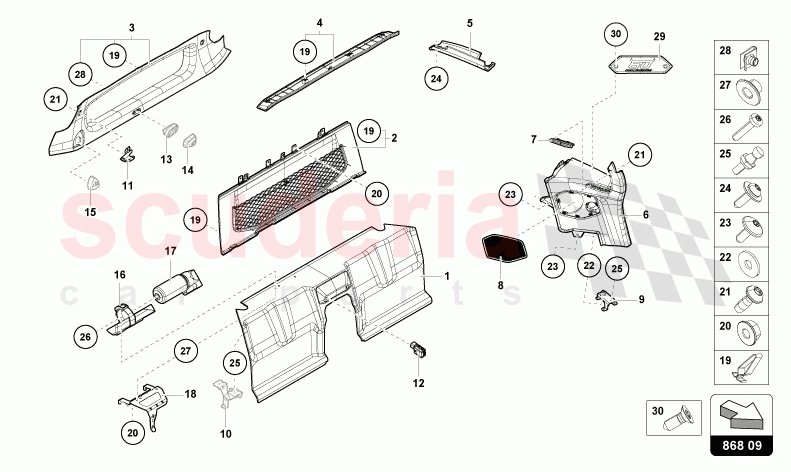

Lamborghini Huracan STO - REAR COMPARTMENT AREA (868.09.00)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4T0868571H	TRAY	Enquire	To Order
	4T3868571	TRAY	Enquire	To Order
	4T3868571A	TRAY	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4T8867477K	TRIM	Enquire	To Order
	4T8867477KEA9	TRIM	Enquire	To Order
	4T8867477KJR7	TRIM	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4T0867591K	TRIM	Enquire	To Order
	4T0867591KEA9	TRIM	Enquire	To Order
	4T0867591L	TRIM	Enquire	To Order

...and 13 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4T8867533A	NOISE INSULATION PLATE	Enquire	To Order
	4T8867533AEA9	NOISE INSULATION PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T0867351A	NOISE INSULATION PLATE	Enquire	To Order
	4T0867352A	TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T0868529A	COVER FOR 3-POINT SEAT BELT	Enquire	To Order
	4T0868530A	COVER FOR 3-POINT SEAT BELT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T0867585	LABEL	Enquire	To Order
	4T0867586	LABEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T8868741A	ARM	Enquire	To Order
	4T8868742A	ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8P08576354PK	COAT HOOK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5Q0035726	USB CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8E0860985	HOLDER FOR FIRE EXTINGUISHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3D0860277	FIRE EXTINGUISHERS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T3860253	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4A0867276B	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N01508210	HEXAGON COLLAR NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10602101	HEXAGON SOCKET FLAT HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N01166623	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91042302	OVAL HEXAGON SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10738101	HEX SOCKET HEAD BOLT (COMBI)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT002783	BALL PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91068001	HEXAGON SOCKET FLAT HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T3860115	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90777702	SPEED NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4ML010014	INSCRIPTION	Enquire	To Order
	4ML010129A	INSCRIPTION	Enquire	To Order
	4T3010129	INSCRIPTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT005881	COUNTERSUNK BOLT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4T0868571H	TRAY	4T0868571H TRAY ALCANTARA - WITHOUT INFOTAINMENT - SUPPLY VIN-REAR	-	1	Enquire
1	4T3868571	TRAY	4T3868571 TRAY ALCANTARA - REAR ARCH - INFOTAINMENT - SUPPLY VIN-REAR	-	1	Enquire
1	4T3868571A	TRAY	4T3868571A TRAY ALCANTARA - FIRE EXTINGUISHER - INFOTAINMENT - SUPPLY VIN-REAR	-	1	Enquire
1	4T3868571B	TRAY	4T3868571B TRAY ALCANTARA - REAR ARCH FIRE EXTINGUISHER - INFOTAINMENT - SUPPLY VIN-REAR	-	1	Enquire
1	4T3868571C	TRAY	4T3868571C TRAY ALCANTARA - TRAVEL PACKAGE - INFOTAINMENT - SUPPLY VIN-REAR	-	1	Enquire
1	4T3868571D	TRAY	4T3868571D TRAY ALCANTARA - INFOTAINMENT - SUPPLY VIN-REAR	-	1	Enquire
2	4T8867477K	TRIM	4T8867477K TRIM LOWER REAR	-	1	Enquire
2	4T8867477KEA9	TRIM	4T8867477KEA9 TRIM COSMUS BLACK-BLACK	-	1	Enquire
2	4T8867477KJR7	TRIM	4T8867477KJR7 TRIM ADE BLACK-BLACK	-	1	Enquire
2	4T8867477LEA9	TRIM	4T8867477LEA9 TRIM COSMUS BLACK - ALCANTARA - WITH LUGGAGE NETS/ POCKETS ON BACKRESTS-BLACK	-	1	Enquire
2	4T8867477LJR7	TRIM	4T8867477LJR7 TRIM ADE BLACK ALCANTARA - WITH LUGGAGE NETS/ POCKETS ON BACKRESTS-BLACK	-	1	Enquire
3	4T0867591K	TRIM	4T0867591K TRIM ALCANTARA-UPPER REAR	-	1	Enquire
3	4T0867591KEA9	TRIM	4T0867591KEA9 TRIM ALCANTARA-BLACK	-	1	Enquire
3	4T0867591L	TRIM	4T0867591L TRIM ALCANTARA - WITH TOP TETHER-UPPER REAR	-	1	Enquire
3	4T0867591LEA9	TRIM	4T0867591LEA9 TRIM ALCANTARA - WITH TOP TETHER-BLACK	-	1	Enquire
3	4T3867591	TRIM	4T3867591 TRIM ALCANTARA - TELEMETRY - LHD-UPPER REAR	-	1	Enquire
3	4T3867591A	TRIM	4T3867591A TRIM ALCANTARA - TELEMETRY - RHD-UPPER REAR	-	1	Enquire
3	4T3867591AEA9	TRIM	4T3867591AEA9 TRIM ALCANTARA - TELEMETRY - RHD-BLACK	-	1	Enquire
3	4T3867591B	TRIM	4T3867591B TRIM ALCANTARA - REAR ARCH-UPPER REAR	-	1	Enquire
3	4T3867591BEA9	TRIM	4T3867591BEA9 TRIM ALCANTARA - REAR ARCH-BLACK	-	1	Enquire
3	4T3867591C	TRIM	4T3867591C TRIM ALCANTARA - TELEMETRY - REAR ARCH-UPPER REAR	-	1	Enquire
3	4T3867591CEA9	TRIM	4T3867591CEA9 TRIM ALCANTARA - TELEMETRY - REAR ARCH-BLACK	-	1	Enquire
3	4T3867591D	TRIM	4T3867591D TRIM ALCANTARA - TELEMETRY - REAR ARCH-UPPER REAR	-	1	Enquire
3	4T3867591DEA9	TRIM	4T3867591DEA9 TRIM ALCANTARA - TELEMETRY - REAR ARCH-BLACK	-	1	Enquire
3	4T3867591E	TRIM	4T3867591E TRIM ALCANTARA - TELEMETRY - ISOFIX-UPPER REAR	-	1	Enquire
3	4T3867591EA9	TRIM	4T3867591EA9 TRIM ALCANTARA - TELEMETRY - LHD-BLACK	-	1	Enquire
3	4T3867591EEA9	TRIM	4T3867591EEA9 TRIM ALCANTARA - TELEMETRY - ISOFIX-BLACK	-	1	Enquire
4	4T8867533A	NOISE INSULATION PLATE	4T8867533A NOISE INSULATION PLATE ALCANTARA	-	1	Enquire
4	4T8867533AEA9	NOISE INSULATION PLATE	4T8867533AEA9 NOISE INSULATION PLATE ALCANTARA-BLACK	-	1	Enquire
5	4T0867351A	NOISE INSULATION PLATE	4T0867351A NOISE INSULATION PLATE ALCANTARA - SUPPLY VIN-LEFT	-	1	Enquire
5	4T0867352A	TRIM	4T0867352A TRIM ALCANTARA - SUPPLY VIN-RIGHT	-	1	Enquire
7	4T0868529A	COVER FOR 3-POINT SEAT BELT	4T0868529A COVER FOR 3-POINT SEAT BELT LEFT	-	1	Enquire
7	4T0868530A	COVER FOR 3-POINT SEAT BELT	4T0868530A COVER FOR 3-POINT SEAT BELT RIGHT	-	1	Enquire
8	4T0867585	LABEL	4T0867585 LABEL LEFT	-	1	Enquire
8	4T0867586	LABEL	4T0867586 LABEL RIGHT	-	1	Enquire
9	4T8868741A	ARM	4T8868741A ARM LEFT	-	1	Enquire
9	4T8868742A	ARM	4T8868742A ARM RIGHT	-	1	Enquire
11	8P08576354PK	COAT HOOK	8P08576354PK COAT HOOK SOUL (BLACK)	-	2	Enquire
12	5Q0035726	USB CONNECTOR	5Q0035726 USB CONNECTOR	-	2	Enquire
16	8E0860985	HOLDER FOR FIRE EXTINGUISHER	8E0860985 HOLDER FOR FIRE EXTINGUISHER	-	1	Enquire
17	3D0860277	FIRE EXTINGUISHERS	3D0860277 FIRE EXTINGUISHERS 1 -0KG	-	1	Enquire
18	4T3860253	BRACKET	4T3860253 BRACKET	-	1	Enquire
19	4A0867276B	CLIP	4A0867276B CLIP 14 -5	-	21	Enquire
20	N01508210	HEXAGON COLLAR NUT	N01508210 HEXAGON COLLAR NUT M6	-	13	Enquire
21	N10602101	HEXAGON SOCKET FLAT HEAD BOLT	N10602101 HEXAGON SOCKET FLAT HEAD BOLT 4X10	-	4	Enquire
22	N01166623	WASHER	N01166623 WASHER 6 -4X18X1,6	-	2	Enquire
23	N91042302	OVAL HEXAGON SOCKET HEAD BOLT	N91042302 OVAL HEXAGON SOCKET HEAD BOLT M6X16	-	6	Enquire
24	N10738101	HEX SOCKET HEAD BOLT (COMBI)	N10738101 HEX SOCKET HEAD BOLT (COMBI) M5X16	-	2	Enquire
25	WHT002783	BALL PIN	WHT002783 BALL PIN M6X12	-	4	Enquire
26	N91068001	HEXAGON SOCKET FLAT HEAD BOLT	N91068001 HEXAGON SOCKET FLAT HEAD BOLT M6X28	-	3	Enquire
27	4T3860115	SPACER	4T3860115 SPACER	-	3	Enquire
28	N90777702	SPEED NUT	N90777702 SPEED NUT M5X13.6X11.5	-	2	Enquire
29	4ML010014	INSCRIPTION	4ML010014 INSCRIPTION AD PERSONAM - SUPPLY VIN-PASSENGER SIDE	-	1	Enquire
29	4ML010129A	INSCRIPTION	4ML010129A INSCRIPTION '60TH'	-	1	Enquire
29	4T3010129	INSCRIPTION	4T3010129 INSCRIPTION STJ 1 DI 10 -DRIVER SIDE	-	1	Enquire
30	WHT005881	COUNTERSUNK BOLT	WHT005881 COUNTERSUNK BOLT ST2.5X13	-	2	Enquire
