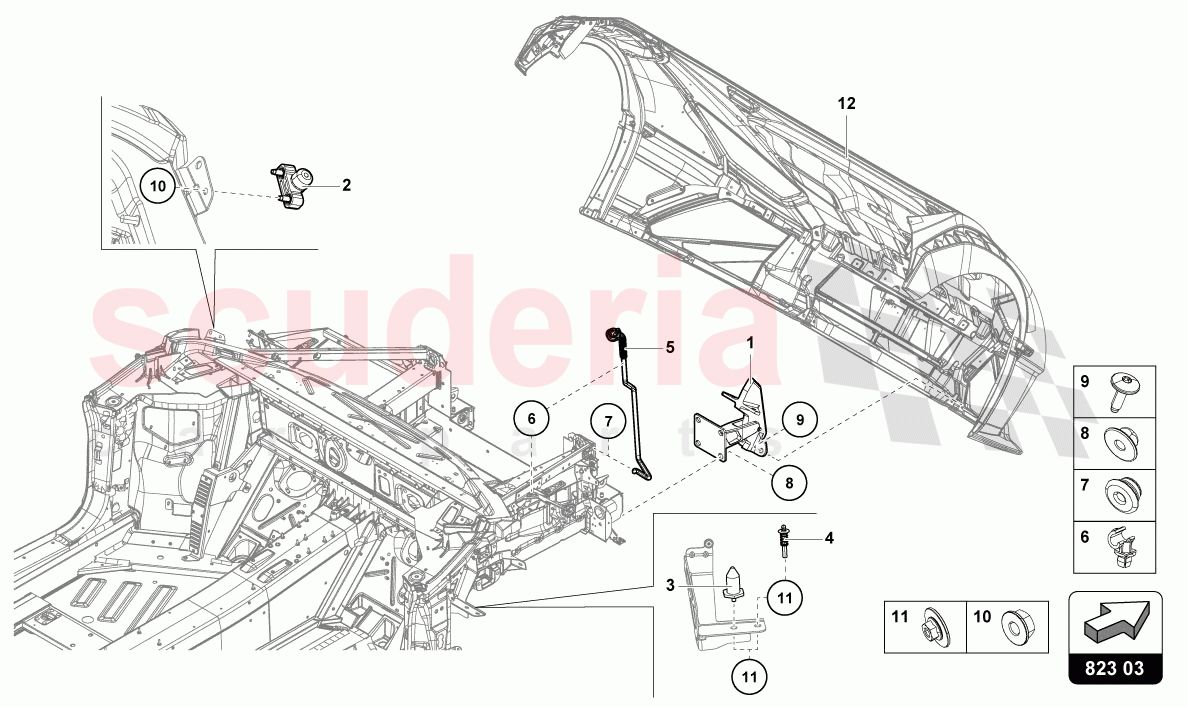

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4T3823306	BONNET HINGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8P4827239B	STOP BUFFER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T3823583	CENTRING PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T3805369	LOCK LOWER PART	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T3823361	SHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1U0823397	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	191823395	RUBBER BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91261601	HEXAGON NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90993602	TORX SCREW (COMBINATION), SELF-LOCKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N01508210	HEXAGON COLLAR NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10833301	HEX. NUT WITH WASHER	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4T3823306	BONNET HINGE	4T3823306 BONNET HINGE	-	2	Enquire
2	8P4827239B	STOP BUFFER	8P4827239B STOP BUFFER	-	2	Enquire
3	4T3823583	CENTRING PIN	4T3823583 CENTRING PIN	-	2	Enquire
4	4T3805369	LOCK LOWER PART	4T3805369 LOCK LOWER PART	-	2	Enquire
5	4T3823361	SHAFT	4T3823361 SHAFT	-	1	Enquire
6	1U0823397	CLIP	1U0823397 CLIP	-	1	Enquire
7	191823395	RUBBER BUSH	191823395 RUBBER BUSH	-	1	Enquire
8	N91261601	HEXAGON NUT	N91261601 HEXAGON NUT M6	-	8	Enquire
9	N90993602	TORX SCREW (COMBINATION), SELF-LOCKING	N90993602 TORX SCREW (COMBINATION), SELF-LOCKING	-	8	Enquire
10	N01508210	HEXAGON COLLAR NUT	N01508210 HEXAGON COLLAR NUT M6	-	4	Enquire
11	N10833301	HEX. NUT WITH WASHER	N10833301 HEX. NUT WITH WASHER M6	-	6	Enquire

Haven't found what you're looking for?

View Cart / Checkout

Bonnet Hinge Front

Lamborghini Huracan STO
