CHASSIS REAR, INNER of Lamborghini Lamborghini Huracan STO

View All

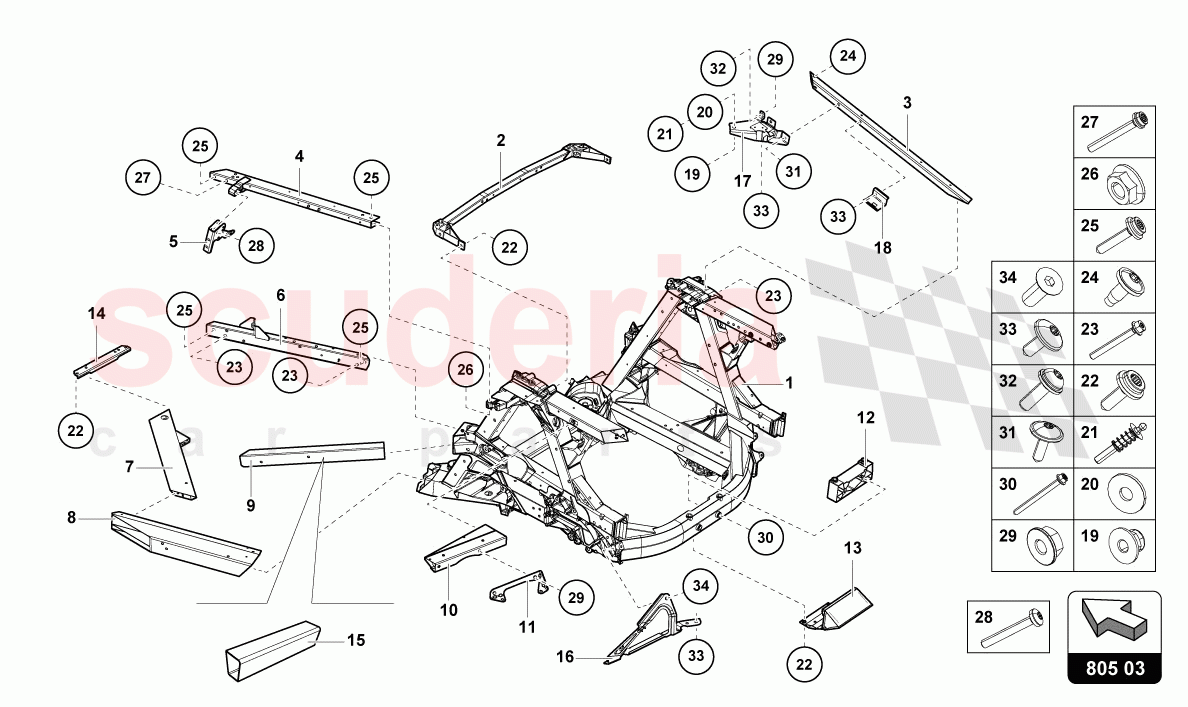

Lamborghini Huracan STO - CHASSIS REAR, INNER (805.03.00)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4T8813031K	FRAME	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S0813441F	REINFORCEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T8817361D	SUPPORT	Enquire	To Order
	4T8817362D	SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T8810243F	SUPPORT	Enquire	To Order
	4T8810244G	SUPPORT ELEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T0813499B	ADAPTER	Enquire	To Order
	4T0813500B	ADAPTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T8814201E	SUPPORT	Enquire	To Order
	4T8814202D	SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S0803691H	SUPPORT	Enquire	To Order
	4S0803692H	SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T0803501H	SIDE MEMBER	Enquire	To Order
	4T0803502H	SIDE MEMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S0813253D	REINFORCEMENT	Enquire	To Order
	4S0813254B	REINFORCEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T0810251B	CARRIER	Enquire	To Order
	4T0810252C	CARRIER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T0810439B	BRACKET	Enquire	To Order
	4T0810440B	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S0813857B	REINFORCEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T0813483C	SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S0813239C	BRACE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S0813945K	SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T0813541E	ARM	Enquire	To Order
	4T0813541E	ARM	Enquire	To Order
	4T0813542E	ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T3810807A	MOUNTING BRACKET	Enquire	To Order
	4T3810808A	MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T3809454	INSERT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91205301	HEXAGON FLANGE NUT, SELF-LOCKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N01167026	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T3805369A	LOCK LOWER PART	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91128001	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10745801	HEXAGON COLLAR BOLT WITH SOCKET HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT003841	FLAT ROUND HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91043701	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90229104	HEXAGON COLLAR NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10649401	SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91097301	HEXAGON SOCKET FLAT HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N01508210	HEXAGON COLLAR NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10683301	HEXAGON COLLARED BOLT WITH MULTI-POINT SOCKET HEAD (DUO)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91188301	HEXAGON SOCKET HEAD BOLT M6 X 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91140401	HEXAGON SOCKET OVAL HEAD BOLT (COMBI)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91042302	OVAL HEXAGON SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT003068	COUNTERSUNK BOLT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4T8813031K	FRAME	4T8813031K FRAME	-	1	Enquire
2	4S0813441F	REINFORCEMENT	4S0813441F REINFORCEMENT	-	1	Enquire
3	4T8817361D	SUPPORT	4T8817361D SUPPORT	-	1	Enquire
3	4T8817362D	SUPPORT	4T8817362D SUPPORT	-	1	Enquire
4	4T8810243F	SUPPORT	4T8810243F SUPPORT LEFT UPPER	-	1	Enquire
4	4T8810244G	SUPPORT ELEMENT	4T8810244G SUPPORT ELEMENT	-	1	Enquire
5	4T0813499B	ADAPTER	4T0813499B ADAPTER LEFT	-	1	Enquire
5	4T0813500B	ADAPTER	4T0813500B ADAPTER RIGHT	-	1	Enquire
6	4T8814201E	SUPPORT	4T8814201E SUPPORT LEFT LOWER	-	1	Enquire
6	4T8814202D	SUPPORT	4T8814202D SUPPORT RIGHT LOWER	-	1	Enquire
7	4S0803691H	SUPPORT	4S0803691H SUPPORT LEFT	-	1	Enquire
7	4S0803692H	SUPPORT	4S0803692H SUPPORT RIGHT	-	1	Enquire
8	4T0803501H	SIDE MEMBER	4T0803501H SIDE MEMBER LEFT	-	1	Enquire
8	4T0803502H	SIDE MEMBER	4T0803502H SIDE MEMBER RIGHT	-	1	Enquire
9	4S0813253D	REINFORCEMENT	4S0813253D REINFORCEMENT LEFT	-	1	Enquire
9	4S0813254B	REINFORCEMENT	4S0813254B REINFORCEMENT RIGHT	-	1	Enquire
10	4T0810251B	CARRIER	4T0810251B CARRIER LEFT	-	1	Enquire
10	4T0810252C	CARRIER	4T0810252C CARRIER RIGHT	-	1	Enquire
11	4T0810439B	BRACKET	4T0810439B BRACKET LEFT	-	1	Enquire
11	4T0810440B	BRACKET	4T0810440B BRACKET RIGHT	-	1	Enquire
12	4S0813857B	REINFORCEMENT	4S0813857B REINFORCEMENT	-	1	Enquire
13	4T0813483C	SUPPORT	4T0813483C SUPPORT	-	1	Enquire
14	4S0813239C	BRACE	4S0813239C BRACE	-	1	Enquire
15	4S0813945K	SLEEVE	4S0813945K SLEEVE	-	2	Enquire
16	4T0813541E	ARM	4T0813541E ARM LEFT	-	1	Enquire
16	4T0813541E	ARM	4T0813541E ARM LEFT	-	1	Enquire
16	4T0813542E	ARM	4T0813542E ARM RIGHT	-	1	Enquire
17	4T3810807A	MOUNTING BRACKET	4T3810807A MOUNTING BRACKET LEFT	-	1	Enquire
17	4T3810808A	MOUNTING BRACKET	4T3810808A MOUNTING BRACKET RIGHT	-	1	Enquire
18	4T3809454	INSERT	4T3809454 INSERT	-	1	Enquire
19	N91205301	HEXAGON FLANGE NUT, SELF-LOCKING	N91205301 HEXAGON FLANGE NUT, SELF-LOCKING M6	-	2	Enquire
20	N01167026	WASHER	N01167026 WASHER 8 -4X24X2	-	2	Enquire
21	4T3805369A	LOCK LOWER PART	4T3805369A LOCK LOWER PART	-	2	Enquire
22	N91128001	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	N91128001 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD M8X25	-	Â	Enquire
23	N10745801	HEXAGON COLLAR BOLT WITH SOCKET HEAD	N10745801 HEXAGON COLLAR BOLT WITH SOCKET HEAD M6X52	-	6	Enquire
24	WHT003841	FLAT ROUND HEAD BOLT	WHT003841 FLAT ROUND HEAD BOLT M6GFX14	-	4	Enquire
25	N91043701	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	N91043701 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD M8X40	-	10	Enquire
26	N90229104	HEXAGON COLLAR NUT	N90229104 HEXAGON COLLAR NUT M8	-	4	Enquire
27	N10649401	SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD	N10649401 SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD M8X65	-	2	Enquire
28	N91097301	HEXAGON SOCKET FLAT HEAD BOLT	N91097301 HEXAGON SOCKET FLAT HEAD BOLT M6X45	-	4	Enquire
29	N01508210	HEXAGON COLLAR NUT	N01508210 HEXAGON COLLAR NUT M6	-	6	Enquire
30	N10683301	HEXAGON COLLARED BOLT WITH MULTI-POINT SOCKET HEAD (DUO)	N10683301 HEXAGON COLLARED BOLT WITH MULTI-POINT SOCKET HEAD (DUO) M10X115	-	2	Enquire
31	N91188301	HEXAGON SOCKET HEAD BOLT M6 X 20	N91188301 HEXAGON SOCKET HEAD BOLT M6 X 20 M6X20	-	2	Enquire
32	N91140401	HEXAGON SOCKET OVAL HEAD BOLT (COMBI)	N91140401 HEXAGON SOCKET OVAL HEAD BOLT (COMBI) M6X20	-	2	Enquire
33	N91042302	OVAL HEXAGON SOCKET HEAD BOLT	N91042302 OVAL HEXAGON SOCKET HEAD BOLT M6X16	-	7	Enquire
34	WHT003068	COUNTERSUNK BOLT	WHT003068 COUNTERSUNK BOLT M6X16	-	2	Enquire

CHASSIS REAR, INNER (805.03.00)

CHASSIS REAR, OUTER (805.04.00)

CHASSIS SIDE, REAR (805.05.00)
