Name: FRONT FRAME
Rating: 5.0 (1 reviews)

Find Your Part

FRONT FRAME of Lamborghini Lamborghini Huracan STO

View All

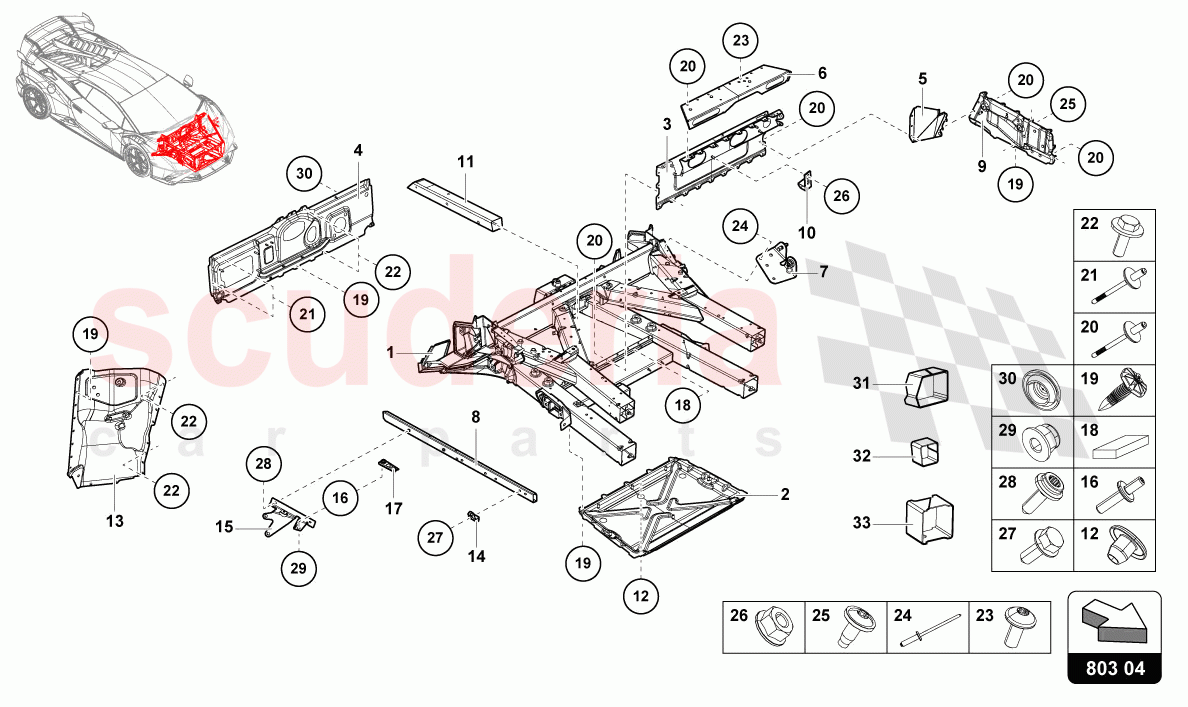

Lamborghini Huracan STO - FRONT FRAME (803.04.00)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4T0805028K	FRONT END	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T0805303C	CONNECTING PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S0805081E	CROSS PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S1805431D	CROSS PANEL	Enquire	To Order
	4S2805431E	CROSS PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S0805457B	SUPPORT	Enquire	To Order
	4S0805458B	SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T0805585E	COVER PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T0805913B	RETAINING PLATE	Enquire	To Order
	4T1805914C	RETAINING PLATE	Enquire	To Order
	4T2805913C	RETAINING PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

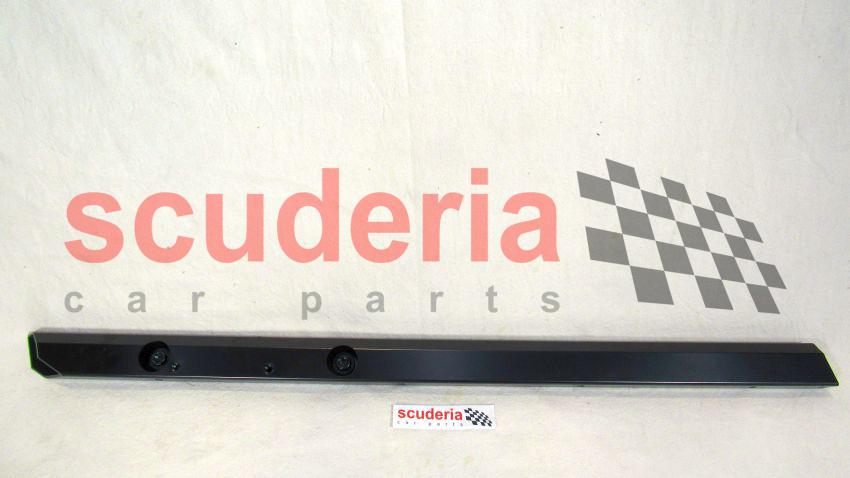

	4T0805157C	SIDE MEMBER	Enquire	To Order
	4T0805158B	SIDE MEMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T0805063C	COVER PLATE	Enquire	To Order
	4T0805064C	COVER PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	420805733	RETAINER FOR BATTERY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S0806217B	REINFORCEMENT FOR SIDE MEMBER	Enquire	To Order
	4S0806218B	REINFORCEMENT FOR SIDE MEMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T0899183	BUNGS	Enquire	To Order
	4T0899183A	BUNGS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S0805115E	WHEEL HOUSING	Enquire	To Order
	4S0805116D	WHEEL HOUSING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T3805815	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T3907455A	BRACKET	Enquire	To Order
	4T3907456A	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T3972501A	PAN HEAD BOLT WITH DOUBLE THREAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T3907681	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T0201763	SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT007052	FLOW DRILL SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91225201	POP RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4D0803217Q	POP RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10009507	HEXAGON HEAD BOLT (COMBI)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90944604	OVAL HEXAGON SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90692402	POP RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT003841	FLAT ROUND HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10609204	HEXAGON COLLAR NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90533005	HEXAGON HEAD BOLT (COMBI)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91128001	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90183803	HEXAGON COLLAR NUT SELF-LOCKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10746401	BUNGS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T0805245K	SLEEVE	Enquire	To Order
	4T0805246K	SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T0805661K	SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T0805509K	SLEEVE	Enquire	To Order
	4T0805510K	SLEEVE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4T0805028K	FRONT END	4T0805028K FRONT END	-	1	Enquire
2	4T0805303C	CONNECTING PLATE	4T0805303C CONNECTING PLATE LOWER	-	1	Enquire
3	4S0805081E	CROSS PANEL	4S0805081E CROSS PANEL	-	1	Enquire
4	4S1805431D	CROSS PANEL	4S1805431D CROSS PANEL LHD	-	1	Enquire
4	4S2805431E	CROSS PANEL	4S2805431E CROSS PANEL RHD	-	1	Enquire
5	4S0805457B	SUPPORT	4S0805457B SUPPORT LEFT	-	1	Enquire
5	4S0805458B	SUPPORT	4S0805458B SUPPORT RIGHT	-	1	Enquire
6	4T0805585E	COVER PLATE	4T0805585E COVER PLATE FRONT	-	1	Enquire
7	4T0805913B	RETAINING PLATE	4T0805913B RETAINING PLATE DRIVER SIDE	-	1	Enquire
7	4T1805914C	RETAINING PLATE	4T1805914C RETAINING PLATE PASSENGER SIDE	-	1	Enquire
7	4T2805913C	RETAINING PLATE	4T2805913C RETAINING PLATE PASSENGER SIDE	-	1	Enquire
8	4T0805157C	SIDE MEMBER	4T0805157C SIDE MEMBER LEFT	-	1	Enquire
8	4T0805158B	SIDE MEMBER	4T0805158B SIDE MEMBER RIGHT	-	1	Enquire
9	4T0805063C	COVER PLATE	4T0805063C COVER PLATE SIDE - LEFT	-	1	Enquire
9	4T0805064C	COVER PLATE	4T0805064C COVER PLATE SIDE - RIGHT	-	1	Enquire
10	420805733	RETAINER FOR BATTERY	420805733 RETAINER FOR BATTERY	-	1	Enquire
11	4S0806217B	REINFORCEMENT FOR SIDE MEMBER	4S0806217B REINFORCEMENT FOR SIDE MEMBER LEFT	-	1	Enquire
11	4S0806218B	REINFORCEMENT FOR SIDE MEMBER	4S0806218B REINFORCEMENT FOR SIDE MEMBER RIGHT	-	1	Enquire
12	4T0899183	BUNGS	4T0899183 BUNGS 30	-	1	Enquire
12	4T0899183A	BUNGS	4T0899183A BUNGS 30	-	1	Enquire
13	4S0805115E	WHEEL HOUSING	4S0805115E WHEEL HOUSING LEFT OUTER	-	1	Enquire
13	4S0805116D	WHEEL HOUSING	4S0805116D WHEEL HOUSING RIGHT OUTER	-	1	Enquire
14	4T3805815	BRACKET	4T3805815 BRACKET	-	1	Enquire
15	4T3907455A	BRACKET	4T3907455A BRACKET LEFT	-	1	Enquire
15	4T3907456A	BRACKET	4T3907456A BRACKET RIGHT	-	1	Enquire
16	4T3972501A	PAN HEAD BOLT WITH DOUBLE THREAD	4T3972501A PAN HEAD BOLT WITH DOUBLE THREAD	-	2	Enquire
17	4T3907681	BRACKET	4T3907681 BRACKET	-	2	Enquire
18	4T0201763	SUPPORT	4T0201763 SUPPORT	-	2	Enquire
19	WHT007052	FLOW DRILL SCREW	WHT007052 FLOW DRILL SCREW	-	63	Enquire
20	N91225201	POP RIVET	N91225201 POP RIVET 4 -8X10	-	55	Enquire
21	4D0803217Q	POP RIVET	4D0803217Q POP RIVET 3 -35X4,0 4D0 803 217 Q	-	18	Enquire
22	N10009507	HEXAGON HEAD BOLT (COMBI)	N10009507 HEXAGON HEAD BOLT (COMBI) M6X18	-	13	Enquire
23	N90944604	OVAL HEXAGON SOCKET HEAD BOLT	N90944604 OVAL HEXAGON SOCKET HEAD BOLT M5X12	-	1	Enquire
24	N90692402	POP RIVET	N90692402 POP RIVET 4 -8X10 N906924	-	5	Enquire
25	WHT003841	FLAT ROUND HEAD BOLT	WHT003841 FLAT ROUND HEAD BOLT M6GFX14	-	8	Enquire
26	N10609204	HEXAGON COLLAR NUT	N10609204 HEXAGON COLLAR NUT M8	-	1	Enquire
27	N90533005	HEXAGON HEAD BOLT (COMBI)	N90533005 HEXAGON HEAD BOLT (COMBI) M6X20	-	2	Enquire
28	N91128001	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	N91128001 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD M8X25	-	4	Enquire
29	N90183803	HEXAGON COLLAR NUT SELF-LOCKING	N90183803 HEXAGON COLLAR NUT SELF-LOCKING M8 N901838	-	2	Enquire
30	N10746401	BUNGS	N10746401 BUNGS	-	1	Enquire
31	4T0805245K	SLEEVE	4T0805245K SLEEVE LEFT	-	1	Enquire
31	4T0805246K	SLEEVE	4T0805246K SLEEVE RIGHT	-	1	Enquire
32	4T0805661K	SLEEVE	4T0805661K SLEEVE	-	1	Enquire
33	4T0805509K	SLEEVE	4T0805509K SLEEVE LEFT	-	1	Enquire
33	4T0805510K	SLEEVE	4T0805510K SLEEVE RIGHT	-	1	Enquire

FRONT FRAME (803.03.00)

FRONT FRAME (803.04.00)

Haven't found what you're looking for?

Original Parts Tuning Parts Need help? Call us

View Cart / Checkout

Front Frame

Lamborghini Huracan STO

Illustration Number: 803.04.00

Lamborghini Huracan STO - FRONT FRAME (803.04.00)
