CERAMIC BRAKE DISC REAR of Lamborghini Lamborghini Huracan STO

View All

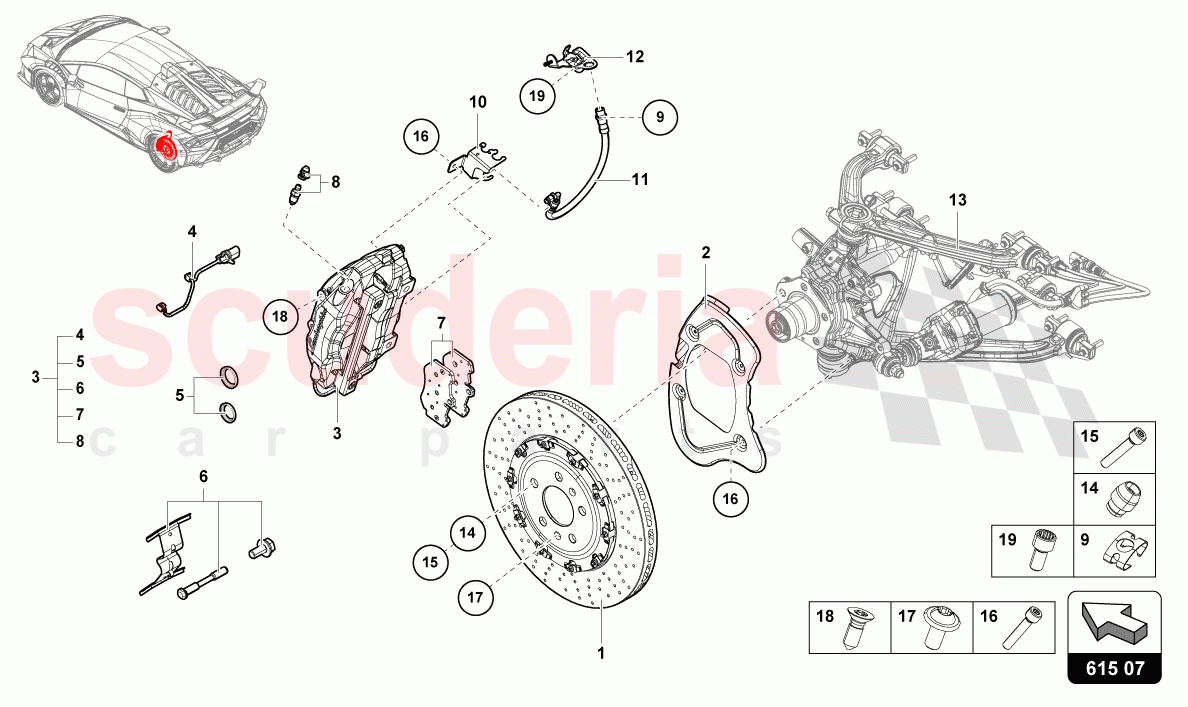

Lamborghini Huracan STO - CERAMIC BRAKE DISC REAR (615.07.00)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4T3615601B	CERAMIC BRAKE DISC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T3615611	COVER PLATE FOR BRAKE DISC	Enquire	To Order
	4T3615612	COVER PLATE FOR BRAKE DISC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T3615405AF	BRAKE CALIPER HOUSING	Enquire	To Order
	4T3615405AH	BRAKE CALIPER HOUSING	Enquire	To Order
	4T3615405AJ	BRAKE CALIPER HOUSING	Enquire	To Order

...and 13 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	420615437B	Brake Pad Wear Sensor	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	420698269	1 SET ATTACHMENT PARTS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T3698451	1 SET OF BRAKE PADS FOR DISK BRAKE	Enquire	To Order
	4T3698451A	1 SET OF BRAKE PADS FOR DISK BRAKE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8A0615273	1 SET BLEEDER VALVES WITH DUST CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8K0611715	RETAINING SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T3611847	BRACKET	Enquire	To Order
	4T3611848	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T3611775	BRAKE HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S0611847J	RETAINER FOR BRAKE HOSE	Enquire	To Order
	4S0611848J	RETAINER FOR BRAKE HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	470615315	FOLLOWER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT008292	SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10406504	OVAL HEXAGON SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10648301	HEX SOCKET COUNTERSUNK BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91141801	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91042302	OVAL HEXAGON SOCKET HEAD BOLT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4T3615601B	CERAMIC BRAKE DISC	4T3615601B CERAMIC BRAKE DISC REPLACE FOR AXLE-LEFT A. RIGHT	-	2	Enquire
2	4T3615611	COVER PLATE FOR BRAKE DISC	4T3615611 COVER PLATE FOR BRAKE DISC LEFT	-	1	Enquire
2	4T3615612	COVER PLATE FOR BRAKE DISC	4T3615612 COVER PLATE FOR BRAKE DISC RIGHT	-	1	Enquire
3	4T3615405AF	BRAKE CALIPER HOUSING	4T3615405AF BRAKE CALIPER HOUSING REAR LEFT - BLACK-LEFT BLACK	-	1	Enquire
3	4T3615405AH	BRAKE CALIPER HOUSING	4T3615405AH BRAKE CALIPER HOUSING REAR LEFT - SILVER-LEFT SILVER	-	1	Enquire
3	4T3615405AJ	BRAKE CALIPER HOUSING	4T3615405AJ BRAKE CALIPER HOUSING REAR LEFT - RED-LEFT RED	-	1	Enquire
3	4T3615405AK	BRAKE CALIPER HOUSING	4T3615405AK BRAKE CALIPER HOUSING REAR LEFT - GREEN-LEFT GREEN	-	1	Enquire
3	4T3615405AL	BRAKE CALIPER HOUSING	4T3615405AL BRAKE CALIPER HOUSING REAR LEFT - ORANGE-LEFT ORANGE	-	1	Enquire
3	4T3615405AM	BRAKE CALIPER HOUSING	4T3615405AM BRAKE CALIPER HOUSING REAR LEFT - BLUE ADP-LEFT BLUE	-	1	Enquire
3	4T3615405AN	BRAKE CALIPER HOUSING	4T3615405AN BRAKE CALIPER HOUSING REAR LEFT - GREEN ADP-LEFT 'VERDE SCANDAL'	-	1	Enquire
3	4T3615406AF	BRAKE CALIPER HOUSING	4T3615406AF BRAKE CALIPER HOUSING REAR RIGHT - BLACK-RIGHT BLACK	-	1	Enquire
3	4T3615406AH	BRAKE CALIPER HOUSING	4T3615406AH BRAKE CALIPER HOUSING REAR RIGHT - SILVER-RIGHT SILVER	-	1	Enquire
3	4T3615406AJ	BRAKE CALIPER HOUSING	4T3615406AJ BRAKE CALIPER HOUSING REAR RIGHT - RED-RIGHT RED	-	1	Enquire
3	4T3615406AK	BRAKE CALIPER HOUSING	4T3615406AK BRAKE CALIPER HOUSING REAR RIGHT - GREEN-RIGHT GREEN	-	1	Enquire
3	4T3615406AL	BRAKE CALIPER HOUSING	4T3615406AL BRAKE CALIPER HOUSING REAR RIGHT - ORANGE-RIGHT ORANGE	-	1	Enquire
3	4T3615406AM	BRAKE CALIPER HOUSING	4T3615406AM BRAKE CALIPER HOUSING REAR RIGHT - BLUE ADP-RIGHT BLUE	-	1	Enquire
3	4T3615406AN	BRAKE CALIPER HOUSING	4T3615406AN BRAKE CALIPER HOUSING REAR RIGHT - GREEN ADP-RIGHT 'VERDE SCANDAL'	-	1	Enquire
3	4T3615405AG	BRAKE CALIPER HOUSING	4T3615405AG BRAKE CALIPER HOUSING REAR LEFT - YELLOW-LEFT YELLOW	-	1	Enquire
3	4T3615406AG	BRAKE CALIPER HOUSING	4T3615406AG BRAKE CALIPER HOUSING REAR RIGHT - YELLOW-RIGHT YELLOW	-	1	Enquire
4	420615437B	Brake Pad Wear Sensor	420615437B Brake Pad Wear Sensor REAR	-	2	Enquire
6	420698269	1 SET ATTACHMENT PARTS	420698269 1 SET ATTACHMENT PARTS REAR	-	2	Enquire
7	4T3698451	1 SET OF BRAKE PADS FOR DISK BRAKE	4T3698451 1 SET OF BRAKE PADS FOR DISK BRAKE REAR	-	1	Enquire
7	4T3698451A	1 SET OF BRAKE PADS FOR DISK BRAKE	4T3698451A 1 SET OF BRAKE PADS FOR DISK BRAKE REAR	-	1	Enquire
8	8A0615273	1 SET BLEEDER VALVES WITH DUST CAP	8A0615273 1 SET BLEEDER VALVES WITH DUST CAP	-	2	Enquire
9	8K0611715	RETAINING SPRING	8K0611715 RETAINING SPRING	-	2	Enquire
10	4T3611847	BRACKET	4T3611847 BRACKET LEFT	-	1	Enquire
10	4T3611848	BRACKET	4T3611848 BRACKET RIGHT	-	1	Enquire
11	4T3611775	BRAKE HOSE	4T3611775 BRAKE HOSE	-	2	Enquire
12	4S0611847J	RETAINER FOR BRAKE HOSE	4S0611847J RETAINER FOR BRAKE HOSE	-	1	Enquire
12	4S0611848J	RETAINER FOR BRAKE HOSE	4S0611848J RETAINER FOR BRAKE HOSE	-	1	Enquire
14	470615315	FOLLOWER	470615315 FOLLOWER	-	10	Enquire
15	WHT008292	SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD	WHT008292 SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD M6X16	-	10	Enquire
16	N10406504	OVAL HEXAGON SOCKET HEAD BOLT	N10406504 OVAL HEXAGON SOCKET HEAD BOLT M6X12	-	10	Enquire
17	N10648301	HEX SOCKET COUNTERSUNK BOLT	N10648301 HEX SOCKET COUNTERSUNK BOLT M6X16	-	2	Enquire
18	N91141801	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	N91141801 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD M12X1 -5X105X90	-	4	Enquire
19	N91042302	OVAL HEXAGON SOCKET HEAD BOLT	N91042302 OVAL HEXAGON SOCKET HEAD BOLT M6X16	-	2	Enquire
20	4T0698525	GASKET SET FOR FIXED CALLIPER	4T0698525 GASKET SET FOR FIXED CALLIPER	-	2	Enquire
22	4S0971845D	HOLDER FOR WIRING HARNESS	4S0971845D HOLDER FOR WIRING HARNESS LEFT REAR	-	1	Enquire
22	4S0971846A	HOLDER FOR WIRING HARNESS	4S0971846A HOLDER FOR WIRING HARNESS RIGHT REAR	-	1	Enquire
23	N10653201	HEX COLLARED BOLT	N10653201 HEX COLLARED BOLT M6X16	-	2	Enquire
