Name: SILENCER
Rating: 5.0 (1 reviews)

SILENCER of Lamborghini Lamborghini Huracan STO

View All

Lamborghini Huracan STO - SILENCER (253.05.00)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4T0251051F	REAR SILENCER	$20,826.56	To Order

Photo	Part No	Description	Price (each)	Stock
	4T0251277	BRACKET	$494.63	To Order

Photo	Part No	Description	Price (each)	Stock
	420251305	RETAINER FOR EXHAUST SYSTEM	$24.95	To Order

Photo	Part No	Description	Price (each)	Stock
	4T0131535	BRACKET	$639.77	To Order
	4T0131536	BRACKET	$639.77	To Order

Photo	Part No	Description	Price (each)	Stock
	4T0251529	BRACKET	$530.91	To Order
	4T0251530	BRACKET	$530.91	To Order

Photo	Part No	Description	Price (each)	Stock
	57906051H	PRESSURE DIFFERENCE SENDER	$229.86	To Order

Photo	Part No	Description	Price (each)	Stock
	470131850	VACUUM HOSE	$115.61	To Order

Photo	Part No	Description	Price (each)	Stock
	4T0251198	SPACER SLEEVE	$18.57	To Order

Photo	Part No	Description	Price (each)	Stock
	4T0251198A	SPACER SLEEVE	$49.88	To Order

Photo	Part No	Description	Price (each)	Stock
	N10619001	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	$1.89	To Order

Photo	Part No	Description	Price (each)	Stock
	N91124501	HEXAGON SOCKET HEAD BOLT	$6.06	To Order

Photo	Part No	Description	Price (each)	Stock
	N91005902	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	$3.37	To Order

Photo	Part No	Description	Price (each)	Stock
	N10514503	HEX COLLARED BOLT	$7.53	To Order

Photo	Part No	Description	Price (each)	Stock
	N01152721	WASHER	$1.63	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10699401	HEXAGON BOLT M10 X 50	$3.97	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N91071702	HEXAGON SOCKET FLAT HEAD BOLT	$0.85	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	WHT007936	HOSE BRACKET	$2.35	To Order

Photo	Part No	Description	Price (each)	Stock
	3C0131483A	SPRING BAND CLAMP	$3.55	To Order

Photo	Part No	Description	Price (each)	Stock
	N10569502	ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD	$0.77	To Order

View All

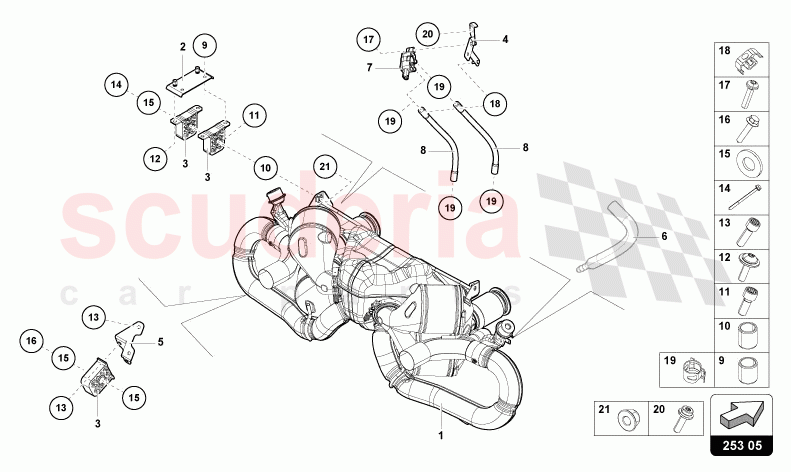

Diagram Tap to enlarge

Silencer

Lamborghini Huracan STO

Illustration Number: 253.05.00

Lamborghini Huracan STO - SILENCER (253.05.00)

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	4T0251051F	REAR SILENCER	4T0251051F REAR SILENCER	$20,826.56	1
2	4T0251277	BRACKET	4T0251277 BRACKET	$494.63	2
3	420251305	RETAINER FOR EXHAUST SYSTEM	420251305 RETAINER FOR EXHAUST SYSTEM	$24.95	6
4	4T0131535	BRACKET	4T0131535 BRACKET LEFT	$639.77	1
4	4T0131536	BRACKET	4T0131536 BRACKET RIGHT	$639.77	1
5	4T0251529	BRACKET	4T0251529 BRACKET LEFT	$530.91	1
5	4T0251530	BRACKET	4T0251530 BRACKET RIGHT	$530.91	1
7	57906051H	PRESSURE DIFFERENCE SENDER	57906051H PRESSURE DIFFERENCE SENDER	$229.86	2
8	470131850	VACUUM HOSE	470131850 VACUUM HOSE	$115.61	4
9	4T0251198	SPACER SLEEVE	4T0251198 SPACER SLEEVE 20MM	$18.57	2
10	4T0251198A	SPACER SLEEVE	4T0251198A SPACER SLEEVE 20MM	$49.88	2
11	N10619001	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	N10619001 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD M8X20	$1.89	4
12	N91124501	HEXAGON SOCKET HEAD BOLT	N91124501 HEXAGON SOCKET HEAD BOLT M8X40	$6.06	4
13	N91005902	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	N91005902 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD M8X25	$3.37	8
14	N10514503	HEX COLLARED BOLT	N10514503 HEX COLLARED BOLT M10X135X45	$7.53	2
15	N01152721	WASHER IN STOCK	N01152721 WASHER IN STOCK	$1.63 MSRP: ~~7.12~~ (77.1% off)	4
16	N10699401	HEXAGON BOLT M10 X 50 IN STOCK	N10699401 HEXAGON BOLT M10 X 50 M10X50 IN STOCK	$3.97	2
17	N91071702	HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	N91071702 HEXAGON SOCKET FLAT HEAD BOLT M6X25 IN STOCK	$0.85 MSRP: ~~7.21~~ (88.2% off)	2
18	WHT007936	HOSE BRACKET	WHT007936 HOSE BRACKET	$2.35	2
19	3C0131483A	SPRING BAND CLAMP	3C0131483A SPRING BAND CLAMP 13 -5X12	$3.55	8
20	N10569502	ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD	N10569502 ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD M5X16	$0.77	2
