Find Your Part

View All

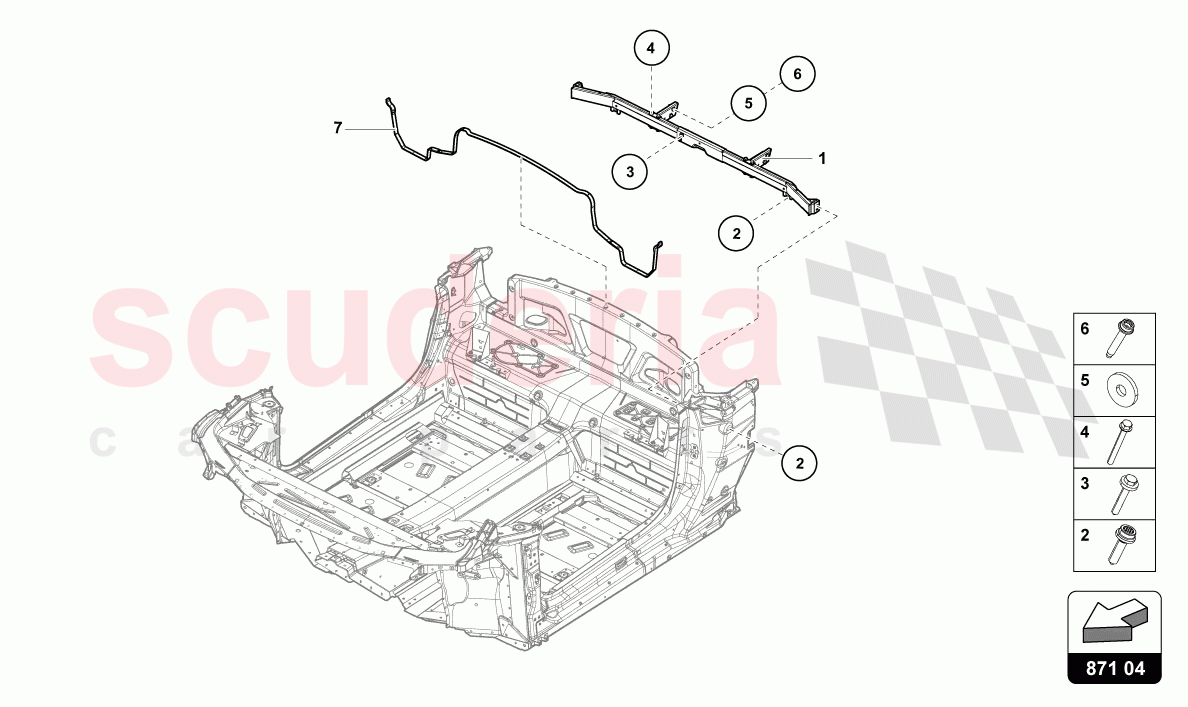

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4T7701061	CROSS MEMBER	$1,525.54	To Order

Photo	Part No	Description	Price (each)	Stock
	N10665002	FLAT HEAD MULTI-POINT SOCKET BOLT	$5.79	To Order

Photo	Part No	Description	Price (each)	Stock
	N90696702	HEXAGON HEAD BOLT (COMBI)	$5.45	To Order

Photo	Part No	Description	Price (each)	Stock
	N91073402	HEX COLLARED BOLT	$4.06	To Order

Photo	Part No	Description	Price (each)	Stock
	N90477302	WASHER	$0.70	To Order

Photo	Part No	Description	Price (each)	Stock
	N10682501	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	$2.78	To Order

Photo	Part No	Description	Price (each)	Stock
	4T7825403B	SEAL FOR CONV. TOP STOWAGE BOX	$12.70	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	4T7701061	CROSS MEMBER	4T7701061 CROSS MEMBER REAR	$1,525.54	1
2	N10665002	FLAT HEAD MULTI-POINT SOCKET BOLT	N10665002 FLAT HEAD MULTI-POINT SOCKET BOLT M8X30	$5.79	1
3	N90696702	HEXAGON HEAD BOLT (COMBI)	N90696702 HEXAGON HEAD BOLT (COMBI) M8X50	$5.45	1
4	N91073402	HEX COLLARED BOLT	N91073402 HEX COLLARED BOLT M8X75	$4.06	1
5	N90477302	WASHER	N90477302 WASHER 8 -4X24X3	$0.70 MSRP: ~~7.28~~ (90.4% off)	1
6	N10682501	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	N10682501 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD M8X50	$2.78 MSRP: ~~7.07~~ (60.7% off)	1
7	4T7825403B	SEAL FOR CONV. TOP STOWAGE BOX	4T7825403B SEAL FOR CONV. TOP STOWAGE BOX	$12.70	1
