AIR INTAKE BOX FOR ELECTRONIC- ALLY CONTROLLED A/C SYSTEM of Lamborghini Lamborghini Huracan Evo Spyder 2WD

View All

Lamborghini Huracan Evo Spyder 2WD - AIR INTAKE BOX FOR ELECTRONIC- ALLY CONTROLLED A/C SYSTEM (820.01.00)

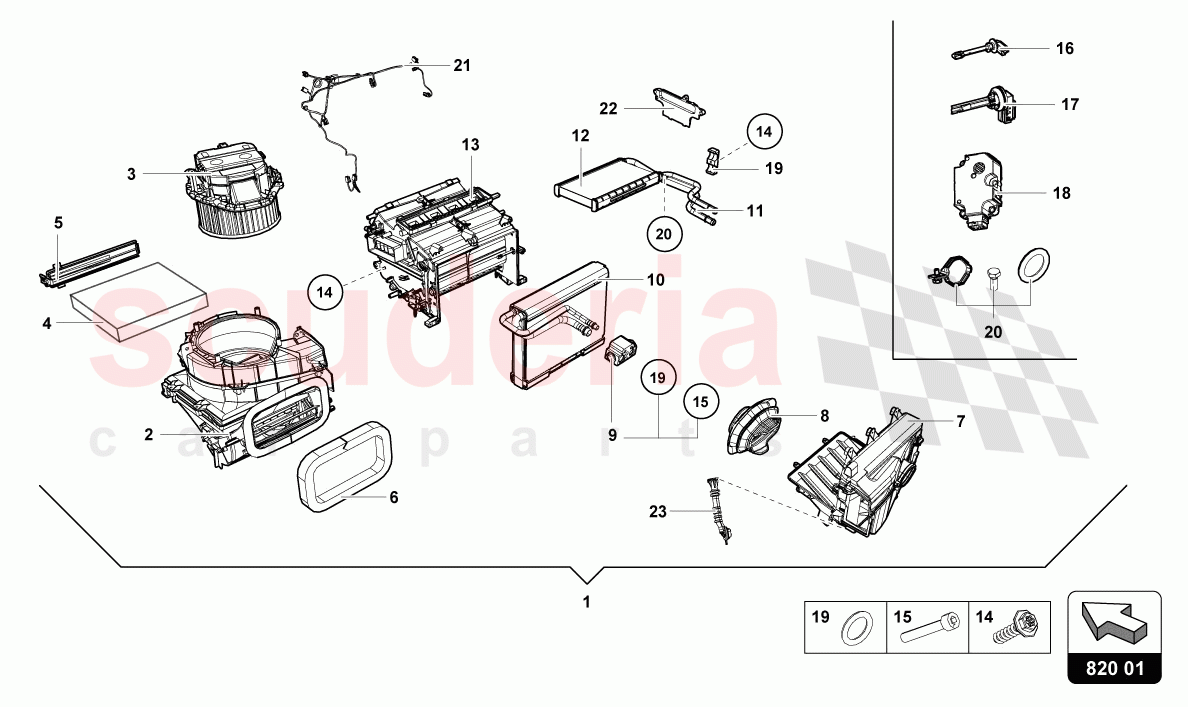

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4S1816005C	AIR CONDITIONING	Enquire	To Order
	4S1820005F	AIR CONDITIONING	Enquire	To Order
	4S2816005C	AIR CONDITIONING	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4S1820153	INTAKE DUCT	Enquire	To Order
	4S2820153	INTAKE DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S1820021	FAN MOTOR	Enquire	To Order
	4S2820021	FAN MOTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S0819439	FILTER INSERT WITH ODOUR AND HARMFUL SUBSTANCE FILTERING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S0819422	COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S0819229	SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S1820024	EVAPORATOR HOUSING	Enquire	To Order
	4S2820024	EVAPORATOR HOUSING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S0820061	SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S0816679	EXPANSION VALVE	Enquire	To Order
	4S0820679	EXPANSION VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S0820102A	EVAPORATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S1898037	1 SET: PIPES FOR HEAT EXCHANGER	Enquire	To Order
	4S2898037	1 SET: PIPES FOR HEAT EXCHANGER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S0819031	HEAT EXCHANGER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S0820356	AIR DISTRIBUTION HOUSING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S0898919	REPAIR SET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S0907543	TEMPERATURE SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S0907543A	TEMPERATURE SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G0820511	SERVOMOTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S0898102	REPAIR SET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S1971566	WIRING SET FOR ELECTRONICALLY REGULATED AIR-CONDITIONING	Enquire	To Order
	4S2971566	WIRING SET FOR ELECTRONICALLY REGULATED AIR-CONDITIONING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S0819422A	COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S0260113	WATER DRAIN PIPE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4S1816005C	AIR CONDITIONING	4S1816005C AIR CONDITIONING REFRIGERANT HFO1234YF- LHD	-	1	Enquire
1	4S1820005F	AIR CONDITIONING	4S1820005F AIR CONDITIONING REFRIGERANT R134A	-	1	Enquire
1	4S2816005C	AIR CONDITIONING	4S2816005C AIR CONDITIONING REFRIGERANT HFO1234YF- RHD	-	1	Enquire
1	4S2820005C	AIR CONDITIONING	4S2820005C AIR CONDITIONING REFRIGERANT R134A- RHD	-	1	Enquire
2	4S1820153	INTAKE DUCT	4S1820153 INTAKE DUCT LHD	-	1	Enquire
2	4S2820153	INTAKE DUCT	4S2820153 INTAKE DUCT RHD	-	1	Enquire
3	4S1820021	FAN MOTOR	4S1820021 FAN MOTOR LHD	-	1	Enquire
3	4S2820021	FAN MOTOR	4S2820021 FAN MOTOR RHD	-	1	Enquire
4	4S0819439	FILTER INSERT WITH ODOUR AND HARMFUL SUBSTANCE FILTERING	4S0819439 FILTER INSERT WITH ODOUR AND HARMFUL SUBSTANCE FILTERING	-	1	Enquire
5	4S0819422	COVER	4S0819422 COVER	-	1	Enquire
6	4S0819229	SEAL	4S0819229 SEAL	-	1	Enquire
7	4S1820024	EVAPORATOR HOUSING	4S1820024 EVAPORATOR HOUSING LHD	-	1	Enquire
7	4S2820024	EVAPORATOR HOUSING	4S2820024 EVAPORATOR HOUSING RHD	-	1	Enquire
8	4S0820061	SEAL	4S0820061 SEAL	-	1	Enquire
9	4S0816679	EXPANSION VALVE	4S0816679 EXPANSION VALVE HFO1234YF	-	1	Enquire
9	4S0820679	EXPANSION VALVE	4S0820679 EXPANSION VALVE R134A	-	1	Enquire
10	4S0820102A	EVAPORATOR	4S0820102A EVAPORATOR	-	1	Enquire
11	4S1898037	1 SET: PIPES FOR HEAT EXCHANGER	4S1898037 1 SET: PIPES FOR HEAT EXCHANGER LHD	-	1	Enquire
11	4S2898037	1 SET: PIPES FOR HEAT EXCHANGER	4S2898037 1 SET: PIPES FOR HEAT EXCHANGER RHD	-	1	Enquire
12	4S0819031	HEAT EXCHANGER	4S0819031 HEAT EXCHANGER	-	1	Enquire
13	4S0820356	AIR DISTRIBUTION HOUSING	4S0820356 AIR DISTRIBUTION HOUSING	-	1	Enquire
14	4S0898919	REPAIR SET	4S0898919 REPAIR SET	-	2	Enquire
16	4S0907543	TEMPERATURE SENSOR	4S0907543 TEMPERATURE SENSOR	-	1	Enquire
17	4S0907543A	TEMPERATURE SENSOR	4S0907543A TEMPERATURE SENSOR	-	1	Enquire
18	4G0820511	SERVOMOTOR	4G0820511 SERVOMOTOR	-	6	Enquire
20	4S0898102	REPAIR SET	4S0898102 REPAIR SET	-	6	Enquire
21	4S1971566	WIRING SET FOR ELECTRONICALLY REGULATED AIR-CONDITIONING	4S1971566 WIRING SET FOR ELECTRONICALLY REGULATED AIR-CONDITIONING LHD	-	1	Enquire
21	4S2971566	WIRING SET FOR ELECTRONICALLY REGULATED AIR-CONDITIONING	4S2971566 WIRING SET FOR ELECTRONICALLY REGULATED AIR-CONDITIONING RHD	-	1	Enquire
22	4S0819422A	COVER	4S0819422A COVER	-	1	Enquire
23	4S0260113	WATER DRAIN PIPE	4S0260113 WATER DRAIN PIPE	-	2	Enquire

AIR INTAKE BOX FOR ELECTRONIC- ALLY CONTROLLED A/C SYSTEM (820.01.00)

CONTROL UNIT FOR HEATING (820.02.00)
