Chassis Rear, Inner

Lamborghini Huracan Evo Spyder 2WD

Illustration Number: 805.01.00

Find Your Part

Lamborghini Huracan Evo Spyder 2WD - CHASSIS REAR, INNER (805.01.00)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4T8813031K FRAME $13,024.14 To Order
Photo Part No Description Price (each) Stock
4S0813441F REINFORCEMENT $186.15 To Order
Photo Part No Description Price (each) Stock
4T8817361E SUPPORT $109.41 To Order
4T8817362E SUPPORT $109.41 To Order
Photo Part No Description Price (each) Stock
4T7810243F SUPPORT $226.50 To Order
4T7810244F SUPPORT $911.29 To Order
Photo Part No Description Price (each) Stock
4T8814201E SUPPORT $572.59 To Order
4T8814202D SUPPORT $145.83 To Order
Photo Part No Description Price (each) Stock
4S0803691H SUPPORT $145.83 To Order
4S0803692H SUPPORT $145.83 To Order
Photo Part No Description Price (each) Stock
4S0813253D REINFORCEMENT $77.56 To Order
4S0813254B REINFORCEMENT $77.56 To Order
Photo Part No Description Price (each) Stock
4T0810251B CARRIER $66.75 To Order
4T0810252C CARRIER $66.75 To Order
Photo Part No Description Price (each) Stock
4T0810439B BRACKET $21.78 To Order
4T0810440B BRACKET $21.78 To Order
Photo Part No Description Price (each) Stock
N91097301 HEXAGON SOCKET FLAT HEAD BOLT $1.96 IN STOCK
Photo Part No Description Price (each) Stock
4S0813857B REINFORCEMENT $186.15 To Order
Photo Part No Description Price (each) Stock
4T0813483C SUPPORT $201.63 To Order
Photo Part No Description Price (each) Stock
N01508210 HEXAGON COLLAR NUT $1.96 IN STOCK
Photo Part No Description Price (each) Stock
N91128001 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD $1.43 IN STOCK
Photo Part No Description Price (each) Stock
N10683301 HEXAGON COLLARED BOLT WITH MULTI-POINT SOCKET HEAD (DUO) $6.27 To Order
Photo Part No Description Price (each) Stock
4S0813239C BRACE $71.92 To Order
Photo Part No Description Price (each) Stock
4S0813945K SLEEVE $266.81 To Order
Photo Part No Description Price (each) Stock
4T7810437B BRACKET $39.45 To Order
4T7810438B BRACKET $39.45 To Order
Photo Part No Description Price (each) Stock
4T0813541E ARM $227.15 To Order
4T0813542E ARM $227.15 To Order
Photo Part No Description Price (each) Stock
WHT003068 COUNTERSUNK BOLT $1.43 IN STOCK
Photo Part No Description Price (each) Stock
4T7813153 ADJUSTING PIN $654.60 To Order
Photo Part No Description Price (each) Stock
N90831902 CAP CLOSURE $3.05 IN STOCK
Photo Part No Description Price (each) Stock
N10664801 SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD $1.63 IN STOCK
Photo Part No Description Price (each) Stock
8D5827499 STOP $1.81 To Order
Photo Part No Description Price (each) Stock
N90780903 OVAL HEXAGON SOCKET HEAD BOLT $0.98 IN STOCK
Photo Part No Description Price (each) Stock
8H0806221 COMPENSATING PIECE $11.16 To Order
Photo Part No Description Price (each) Stock
N90692402 POP RIVET $1.68 IN STOCK
View All

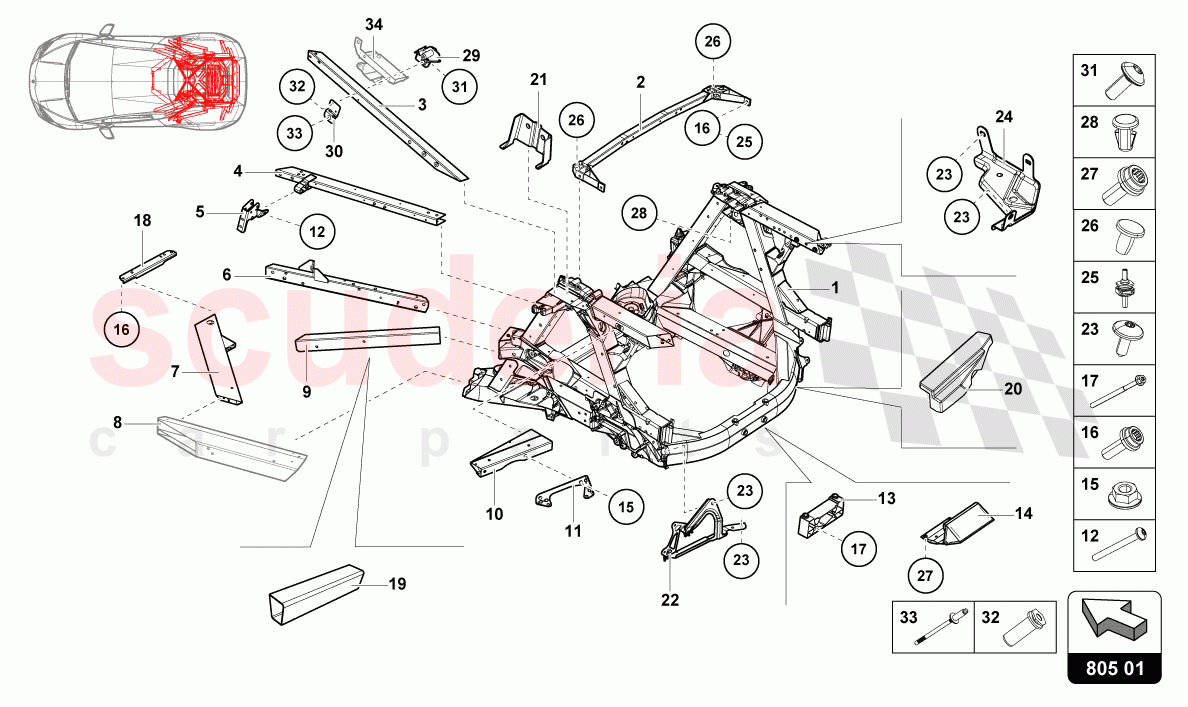

CHASSIS REAR, INNER of Lamborghini Lamborghini Huracan Evo Spyder 2WD Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 4T8813031K
FRAME
CONTACT YOUR AREA MANAGER-REAR ENGINE BAY 		$13,024.14 1
2 4S0813441F
REINFORCEMENT 		$186.15 1
3 4T8817361E
SUPPORT
LEFT REAR 		$109.41 1
3 4T8817362E
SUPPORT 		$109.41 1
4 4T7810243F
SUPPORT
LEFT 		$226.50 1
4 4T7810244F
SUPPORT
RIGHT 		$911.29 1
6 4T8814201E
SUPPORT
CONTACT YOUR AREA MANAGER-LEFT LOWER 		$572.59 1
6 4T8814202D
SUPPORT
CONTACT YOUR AREA MANAGER-RIGHT LOWER 		$145.83 1
7 4S0803691H
SUPPORT
CONTACT YOUR AREA MANAGER-LEFT 		$145.83 1
7 4S0803692H
SUPPORT
CONTACT YOUR AREA MANAGER-RIGHT 		$145.83 1
9 4S0813253D
REINFORCEMENT
CONTACT YOUR AREA MANAGER-LEFT 		$77.56 1
9 4S0813254B
REINFORCEMENT
CONTACT YOUR AREA MANAGER-RIGHT 		$77.56 1
10 4T0810251B
CARRIER
LEFT 		$66.75 1
10 4T0810252C
CARRIER
RIGHT 		$66.75 1
11 4T0810439B
BRACKET
LEFT 		$21.78 1

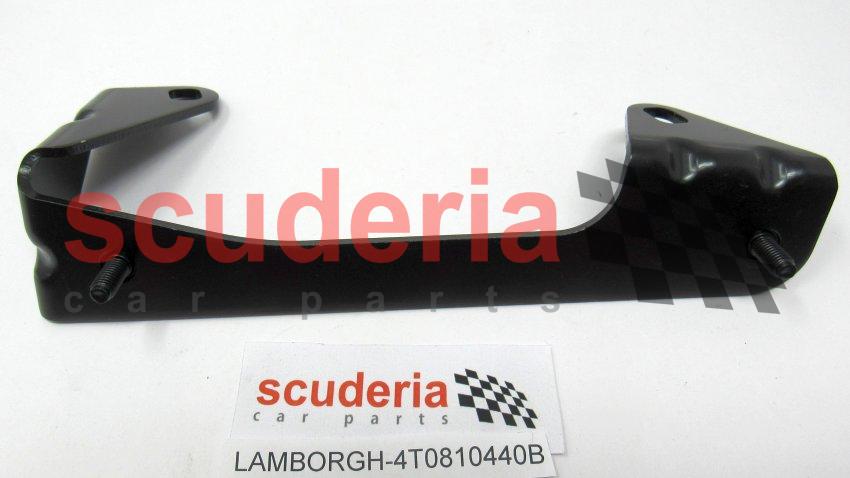

11 4T0810440B
BRACKET
RIGHT 		$21.78 1
12 N91097301
HEXAGON SOCKET FLAT HEAD BOLT
M6X45
IN STOCK 		$1.96 (73% off) 8
13 4S0813857B
REINFORCEMENT
CONTACT YOUR AREA MANAGER 		$186.15 1
14 4T0813483C
SUPPORT
CONTACT YOUR AREA MANAGER 		$201.63 1
15 N01508210
HEXAGON COLLAR NUT
M6
IN STOCK 		$1.96 4
16 N91128001
SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
M8X25
IN STOCK 		$1.43 (80.2% off) 4
17 N10683301
HEXAGON COLLARED BOLT WITH MULTI-POINT SOCKET HEAD (DUO)
M10X115 		$6.27 2
18 4S0813239C
BRACE
CONTACT YOUR AREA MANAGER 		$71.92 1
19 4S0813945K
SLEEVE
TO BE USED FOR REF. 9 - CONTACT YOUR AREA MANAGER-LEFT 		$266.81 2
21 4T7810437B
BRACKET
LEFT 		$39.45 1
21 4T7810438B
BRACKET
RIGHT 		$39.45 1
22 4T0813541E
ARM
LEFT 		$227.15 1
22 4T0813542E
ARM
RIGHT 		$227.15 1
23 WHT003068
COUNTERSUNK BOLT
M6X16
IN STOCK 		$1.43 (80.1% off) 14
25 4T7813153
ADJUSTING PIN 		$654.60 2
26 N90831902
CAP CLOSURE
IN STOCK 		$3.05 2
27 N10664801
SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD
M8X20
IN STOCK 		$1.63 (77.6% off) 2
28 8D5827499
STOP 		$1.81 2
31 N90780903
OVAL HEXAGON SOCKET HEAD BOLT
SISTEMARE-RIGHT
IN STOCK 		$0.98 1
32 8H0806221
COMPENSATING PIECE
ONLY FOR TECNICA MODEL SISTEMARE-M6X16 		$11.16 2
33 N90692402
POP RIVET
ONLY FOR TECNICA MODEL SISTEMARE-M8X20
IN STOCK 		$1.68 (76.5% off) 1
