FUEL PUMP of Lamborghini Lamborghini Huracan Evo Spyder 2WD

View All

Lamborghini Huracan Evo Spyder 2WD - FUEL PUMP (133.03.00)

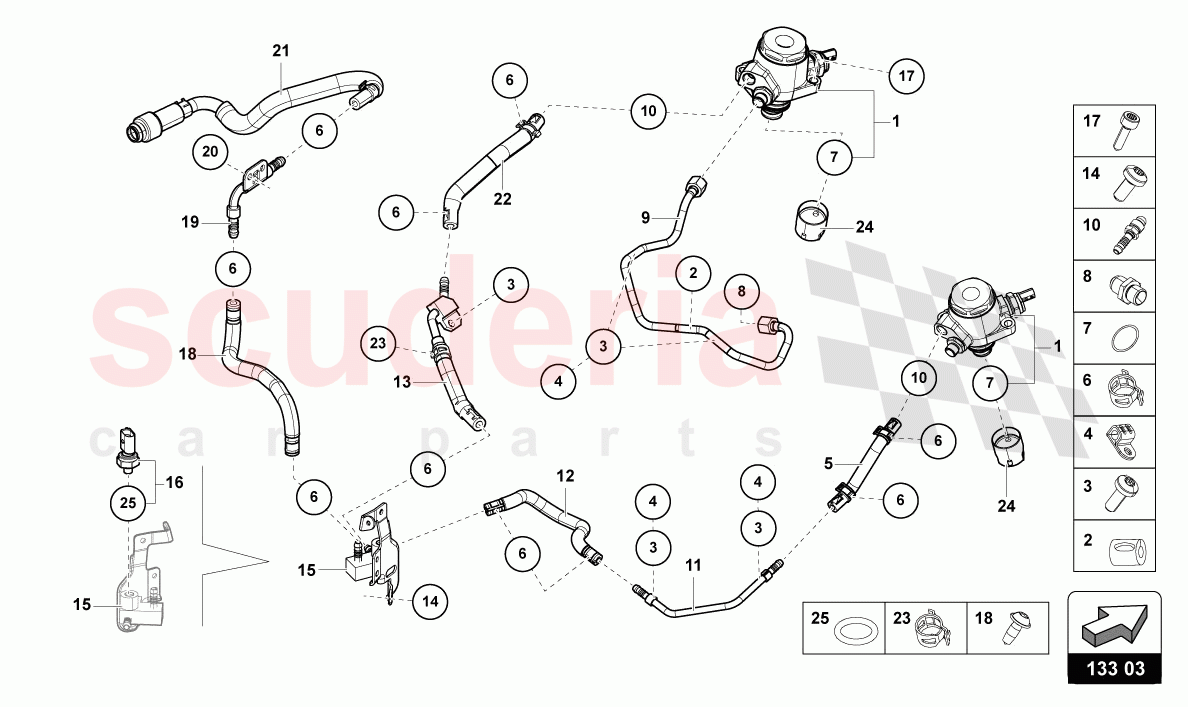

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	7L127025S	FUEL PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	79121129	SPACER BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10451408	OVAL HEXAGON SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7L127411E	RETAINER FOR FUEL LINE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7L127509CP	FUEL HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90986501	SPRING BAND CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT005184	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7L127065	ADAPTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7L127501BJ	FUEL LINE	Enquire	To Order
	7L127501BQ	FUEL LINE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6E127065P	CONNECTOR UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7L127509BR	FUEL LINE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7L127509CQ	FUEL HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7L127509CR	FUEL HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10405604	OVAL HEXAGON SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7L127503AE	FUEL RAIL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6E906051K	FUEL PRESSURE SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91076601	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7L127509AN	FUEL HOSE	Enquire	To Order
	7L127509CT	FUEL HOSE	Enquire	To Order
	7L127509DH	FUEL HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7L127503AC	FUEL RAIL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90925202	HEXAGON SOCKET HEAD COLLARED BOLT, THREAD FORMING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7L201215D	FUEL LINE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7L127509CS	FUEL HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91020301	SPRING BAND CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6L109311	TAPPETS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6E906149B	O-RING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	7L127025S	FUEL PUMP	7L127025S FUEL PUMP HITACHI	-	2	Enquire
2	79121129	SPACER BUSH	79121129 SPACER BUSH 8X18X20	-	4	Enquire
3	N10451408	OVAL HEXAGON SOCKET HEAD BOLT	N10451408 OVAL HEXAGON SOCKET HEAD BOLT M6X16	-	4	Enquire
4	7L127411E	RETAINER FOR FUEL LINE	7L127411E RETAINER FOR FUEL LINE	-	4	Enquire
5	7L127509CP	FUEL HOSE	7L127509CP FUEL HOSE RIGHT	-	1	Enquire
6	N90986501	SPRING BAND CLAMP	N90986501 SPRING BAND CLAMP 14 -5X12	-	8	Enquire
7	WHT005184	O-RING	WHT005184 O-RING 31X2	-	2	Enquire
8	7L127065	ADAPTER	7L127065 ADAPTER	-	2	Enquire
9	7L127501BJ	FUEL LINE	7L127501BJ FUEL LINE RIGHT	-	1	Enquire
9	7L127501BQ	FUEL LINE	7L127501BQ FUEL LINE LEFT	-	1	Enquire
10	6E127065P	CONNECTOR UNION	6E127065P CONNECTOR UNION	-	2	Enquire
11	7L127509BR	FUEL LINE	7L127509BR FUEL LINE RIGHT	-	1	Enquire
12	7L127509CQ	FUEL HOSE	7L127509CQ FUEL HOSE 5 LAYER-CENTRE/REAR	-	1	Enquire
13	7L127509CR	FUEL HOSE	7L127509CR FUEL HOSE 5 LAYER-LEFT REAR	-	1	Enquire
14	N10405604	OVAL HEXAGON SOCKET HEAD BOLT	N10405604 OVAL HEXAGON SOCKET HEAD BOLT M6X14	-	2	Enquire
15	7L127503AE	FUEL RAIL	7L127503AE FUEL RAIL CENTRE/REAR	-	1	Enquire
16	6E906051K	FUEL PRESSURE SENSOR	6E906051K FUEL PRESSURE SENSOR LOW 2	-	1	Enquire
17	N91076601	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	N91076601 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD M8X30	-	4	Enquire
18	7L127509AN	FUEL HOSE	7L127509AN FUEL HOSE LEFT	-	1	Enquire
18	7L127509CT	FUEL HOSE	7L127509CT FUEL HOSE C6A-LEFT REAR	-	1	Enquire
18	7L127509DH	FUEL HOSE	7L127509DH FUEL HOSE 5 LAYER-LEFT	-	1	Enquire
19	7L127503AC	FUEL RAIL	7L127503AC FUEL RAIL	-	1	Enquire
20	N90925202	HEXAGON SOCKET HEAD COLLARED BOLT, THREAD FORMING	N90925202 HEXAGON SOCKET HEAD COLLARED BOLT, THREAD FORMING 6X16	-	2	Enquire
21	7L201215D	FUEL LINE	7L201215D FUEL LINE	-	1	Enquire
22	7L127509CS	FUEL HOSE	7L127509CS FUEL HOSE LEFT REAR	-	1	Enquire
23	N91020301	SPRING BAND CLAMP	N91020301 SPRING BAND CLAMP 14 -5X12	-	2	Enquire
24	6L109311	TAPPETS	6L109311 TAPPETS	-	2	Enquire
25	6E906149B	O-RING	6E906149B O-RING 8 -2X1,5	-	1	Enquire
