Name: TIMING CHAIN
Rating: 4.4 (1 reviews)

TIMING CHAIN of Lamborghini Lamborghini Huracan Evo Spyder 2WD

View All

Lamborghini Huracan Evo Spyder 2WD - TIMING CHAIN (109.04.00)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	6E109465BL	TIMING CHAIN	$147.19	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10660901	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	$6.86	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10554005	ROUND HD. SCREW	$2.69	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N91119601	SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD	$4.52	To Order

Photo	Part No	Description	Price (each)	Stock
	N90740801	O-RING	$3.77	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N91046302	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI)	$1.96	To Order

Photo	Part No	Description	Price (each)	Stock
	7L109359AA	PLATE	$1,157.27	To Order

Photo	Part No	Description	Price (each)	Stock
	N10124304	OVAL HEXAGON SOCKET HEAD BOLT	$1.55	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	79109139M	SEAL	$10.71	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	79109507AF	CHAIN TENSIONER	$214.50	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	79103337P	BRACKET	$50.68	To Order

Photo	Part No	Description	Price (each)	Stock
	79109570AT	CHAIN SPROCKET	$99.60	To Order

Photo	Part No	Description	Price (each)	Stock
	6E109220A	BEARING PIN	$91.79	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	79109570AP	CHAIN SPROCKET	$99.60	To Order

Photo	Part No	Description	Price (each)	Stock
	N10478301	CYLINDER PIN	$1.25	To Order

Photo	Part No	Description	Price (each)	Stock
	79109135E	SPACER BUSH	$15.54	To Order

Photo	Part No	Description	Price (each)	Stock
	N0124161	SECURING RING	$0.74	To Order

Photo	Part No	Description	Price (each)	Stock
	79103051E	SHAFT OIL SEAL	$46.24	To Order

Photo	Part No	Description	Price (each)	Stock
	N90893202	FITTED BOLT, HEXAGON HEAD	$3.24	To Order

View All

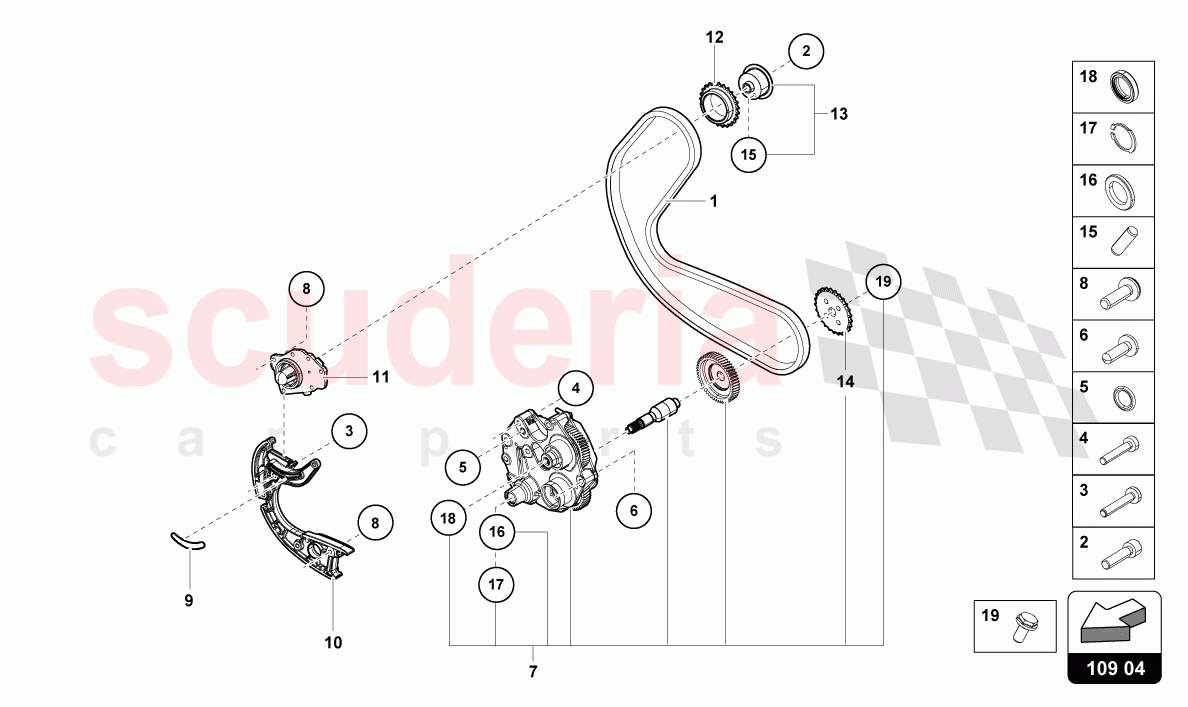

Diagram Tap to enlarge

Timing Chain

Lamborghini Huracan Evo Spyder 2WD

Illustration Number: 109.04.00

Lamborghini Huracan Evo Spyder 2WD - TIMING CHAIN (109.04.00)

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	6E109465BL	TIMING CHAIN IN STOCK	6E109465BL TIMING CHAIN LOWER CENTRE IN STOCK	$147.19	1
2	N10660901	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	N10660901 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD M10X40 IN STOCK	$6.86	2
3	N10554005	ROUND HD. SCREW IN STOCK	N10554005 ROUND HD. SCREW M6X35 IN STOCK	$2.69	1
4	N91119601	SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD	N91119601 SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD M8X45	$4.52	5
5	N90740801	O-RING IN STOCK	N90740801 O-RING 7 -65X1,78 IN STOCK	$3.77 MSRP: ~~7.28~~ (48.2% off)	2
6	N91046302	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI)	N91046302 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI) M8X28	$1.96 MSRP: ~~7.14~~ (72.5% off)	1
7	7L109359AA	PLATE	7L109359AA PLATE	$1,157.27	1
8	N10124304	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N10124304 OVAL HEXAGON SOCKET HEAD BOLT M6X20 IN STOCK	$1.55	21
9	79109139M	SEAL IN STOCK	79109139M SEAL LOWER CENTRE IN STOCK	$10.71	1
10	79109507AF	CHAIN TENSIONER IN STOCK	79109507AF CHAIN TENSIONER IN STOCK	$214.50	1
11	79103337P	BRACKET	79103337P BRACKET	$50.68	1
12	79109570AT	CHAIN SPROCKET	79109570AT CHAIN SPROCKET Z=25	$99.60	1
13	6E109220A	BEARING PIN IN STOCK	6E109220A BEARING PIN IN STOCK	$91.79	1
14	79109570AP	CHAIN SPROCKET	79109570AP CHAIN SPROCKET Z=25	$99.60	1
15	N10478301	CYLINDER PIN	N10478301 CYLINDER PIN 5X14	$1.25 MSRP: ~~7.20~~ (82.6% off)	1
16	79109135E	SPACER BUSH	79109135E SPACER BUSH	$15.54	1
17	N0124161	SECURING RING	N0124161 SECURING RING 16X1	$0.74 MSRP: ~~7.29~~ (89.8% off)	1
18	79103051E	SHAFT OIL SEAL	79103051E SHAFT OIL SEAL	$46.24	1
19	N90893202	FITTED BOLT, HEXAGON HEAD	N90893202 FITTED BOLT, HEXAGON HEAD M10X20	$3.24	21
