RADIO UNIT of Lamborghini Lamborghini Huracan Evo Spyder

View All

Lamborghini Huracan Evo Spyder - RADIO UNIT

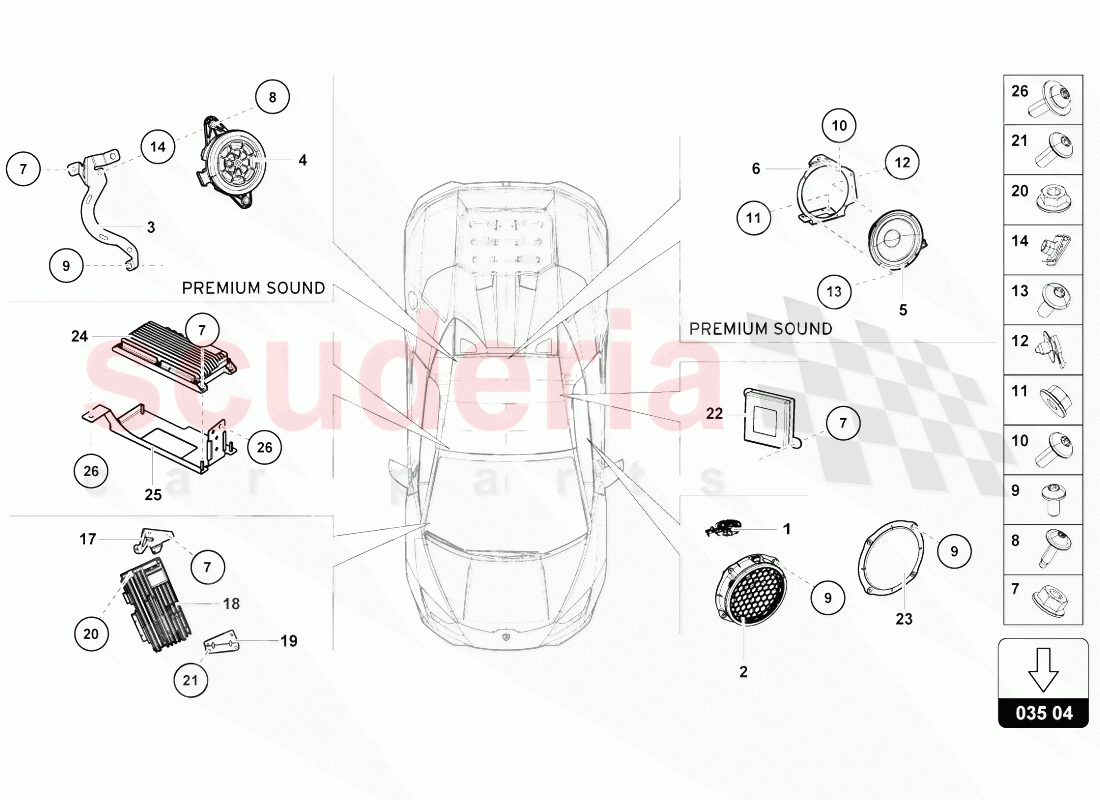

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	8V0035399C	TREBLE SPEAKER	Enquire	To Order
	8V0035398A	TREBLE SPEAKER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8V0035415B	BASS LOUDSPEAKER	Enquire	To Order
	8V0035415	BASS LOUDSPEAKER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T7035643A	BRACKET	Enquire	To Order
	4T7035644A	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8U0035416B	MID TONE SPEAKER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T0035382	BASS LOUDSPEAKER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T7035640A	ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N01508210	HEXAGON COLLAR NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91180901	FLAT HEAD MULTI-POINT SOCKET BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91180901	FLAT HEAD MULTI-POINT SOCKET BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90944604	OVAL HEXAGON SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10017307	HEXAGON COLLAR NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90777702	SPEED NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10459202	SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90475903	SPEED NUT M5 X 13.6 X 11.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T1863160A	ANGLE BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T7035466	AMPLIFIER FOR SOUND SYSTEM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T0035535B	BRACKET (PREMIUM SOUND SYS - VALID FROM A MODEL YEAR 16)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10017304	HEXAGON COLLAR NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91096601	HEXAGON SOCKET FLAT HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	420907394B	SEATBELT MICROPHONE CTRL UNIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		COVER FOR LOUDSPEAKER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T0035751C	EL.CONTROL UNIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T1035821	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10738101	HEX SOCKET HEAD BOLT (COMBI)	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	8V0035399C	TREBLE SPEAKER	8V0035399C TREBLE SPEAKER PREMIUM SOUND SYS	-	2	Enquire
1	8V0035398A	TREBLE SPEAKER	8V0035398A TREBLE SPEAKER STANDARD	-	2	Enquire
2	8V0035415B	BASS LOUDSPEAKER	8V0035415B BASS LOUDSPEAKER PREMIUM SOUND SYS	-	2	Enquire
2	8V0035415	BASS LOUDSPEAKER	8V0035415 BASS LOUDSPEAKER STANDARD	-	2	Enquire
3	4T7035643A	BRACKET	4T7035643A BRACKET LEFT	-	1	Enquire
3	4T7035644A	BRACKET	4T7035644A BRACKET RIGHT	-	1	Enquire
4	8U0035416B	MID TONE SPEAKER	8U0035416B MID TONE SPEAKER PREMIUM SOUND SYS	-	2	Enquire
5	4T0035382	BASS LOUDSPEAKER	4T0035382 BASS LOUDSPEAKER PREMIUM SOUND SYS	-	1	Enquire
6	4T7035640A	ARM	4T7035640A ARM PREMIUM SOUND SYS	-	1	Enquire
7	N01508210	HEXAGON COLLAR NUT	N01508210 HEXAGON COLLAR NUT M6	-	6	Enquire
8	N91180901	FLAT HEAD MULTI-POINT SOCKET BOLT	N91180901 FLAT HEAD MULTI-POINT SOCKET BOLT M5X20-M5X20	-	4	Enquire
9	N91180901	FLAT HEAD MULTI-POINT SOCKET BOLT	N91180901 FLAT HEAD MULTI-POINT SOCKET BOLT M5X20-M5X20	-	6	Enquire
10	N90944604	OVAL HEXAGON SOCKET HEAD BOLT	N90944604 OVAL HEXAGON SOCKET HEAD BOLT M5X12	-	1	Enquire
11	N10017307	HEXAGON COLLAR NUT	N10017307 HEXAGON COLLAR NUT M5 - PREMIUM SOUND SYS - VALIDO DAL MODEL YEAR 16-M5	-	4	Enquire
12	N90777702	SPEED NUT	N90777702 SPEED NUT M5X13.6X11.5	-	4	Enquire
13	N10459202	SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD	N10459202 SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD M4X8 - PREMIUM SOUND SYS - VALIDO DAL MODEL YEAR 16-M5X12	-	4	Enquire
14	N90475903	SPEED NUT M5 X 13.6 X 11.5	N90475903 SPEED NUT M5 X 13.6 X 11.5 M5X13,6X11,5	-	4	Enquire
15	4T0051510	ADAPTER	4T0051510 ADAPTER IPHONE-'IPHONE 5/6' 'AUDI MUSIC INTERFACE'	-	1	Enquire
16	4F0051510G	ADAPTER	4F0051510G ADAPTER USB-'USB'	-	1	Enquire
17	4T1863160A	ANGLE BRACKET	4T1863160A ANGLE BRACKET LHD	-	1	Enquire
18	4T7035466	AMPLIFIER FOR SOUND SYSTEM	4T7035466 AMPLIFIER FOR SOUND SYSTEM	-	1	Enquire
19	4T0035535B	BRACKET (PREMIUM SOUND SYS - VALID FROM A MODEL YEAR 16)	4T0035535B BRACKET (PREMIUM SOUND SYS - VALID FROM A MODEL YEAR 16) PREMIUM SOUND SYS- LHD	-	1	Enquire
20	N10017304	HEXAGON COLLAR NUT	N10017304 HEXAGON COLLAR NUT M5-M5	-	8	Enquire
21	N91096601	HEXAGON SOCKET FLAT HEAD BOLT	N91096601 HEXAGON SOCKET FLAT HEAD BOLT M6X12	-	2	Enquire
22	420907394B	SEATBELT MICROPHONE CTRL UNIT	420907394B SEATBELT MICROPHONE CTRL UNIT 'CONTROL UNIT BELT MICRO'	-	1	Enquire
23	-	COVER FOR LOUDSPEAKER	COVER FOR LOUDSPEAKER ONLY FOR PERFORMANTE SPYDER	-	-	Enquire
24	4T0035751C	EL.CONTROL UNIT	4T0035751C EL.CONTROL UNIT TSU - ECU CARPLAY	-	1	Enquire
25	4T1035821	BRACKET	4T1035821 BRACKET LHD	-	1	Enquire
26	N10738101	HEX SOCKET HEAD BOLT (COMBI)	N10738101 HEX SOCKET HEAD BOLT (COMBI) M5X16	-	2	Enquire
