Oil Filter

Lamborghini Huracan Evo Coupe

Find Your Part

Lamborghini Huracan Evo Coupe - OIL FILTER

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
BH325183B FILTER ELEMENT $48.05 IN STOCK
Photo Part No Description Price (each) Stock
N91084501 O-RING $7.56 IN STOCK
Photo Part No Description Price (each) Stock
BH325159 FILTER HOUSING WITH HEAT SHIELD $25.63 To Order
Photo Part No Description Price (each) Stock
N0438092 SEAL RING $7.87 To Order
Photo Part No Description Price (each) Stock
BH321363 OIL PIPE $7.13 To Order
Photo Part No Description Price (each) Stock
N90215404 SEALING PLUG $8.13 IN STOCK
Photo Part No Description Price (each) Stock
BZ398359 GASKET SET FOR OIL SUMP $47.34 IN STOCK
Photo Part No Description Price (each) Stock
BZ398359A SEAL BOLT WITH SEALING RING $21.57 To Order
Photo Part No Description Price (each) Stock
AUTOMATIC GEARBOX Enquire To Order
Photo Part No Description Price (each) Stock
N0138132 SEAL RING $3.16 To Order
Photo Part No Description Price (each) Stock
WHT005257 SEALING PLUG $27.43 IN STOCK
Photo Part No Description Price (each) Stock
N0138487 SEAL RING $3.27 IN STOCK
Photo Part No Description Price (each) Stock
N10637901 SEALING PLUG $6.48 IN STOCK
Photo Part No Description Price (each) Stock
N10745101 HEXAGON SOCKET FLAT HEAD BOLT $1.96 To Order
Photo Part No Description Price (each) Stock
BZ321359C OIL SUMP $373.47 IN STOCK
Photo Part No Description Price (each) Stock
N91020902 DOUBLE STUD WITH HEXAGON DRIVE $19.91 To Order
Photo Part No Description Price (each) Stock
N02300214 HEXAGON NUT, SELF-LOCKING $2.15 To Order
Photo Part No Description Price (each) Stock
BZ301433 ARM $9.67 To Order
View All

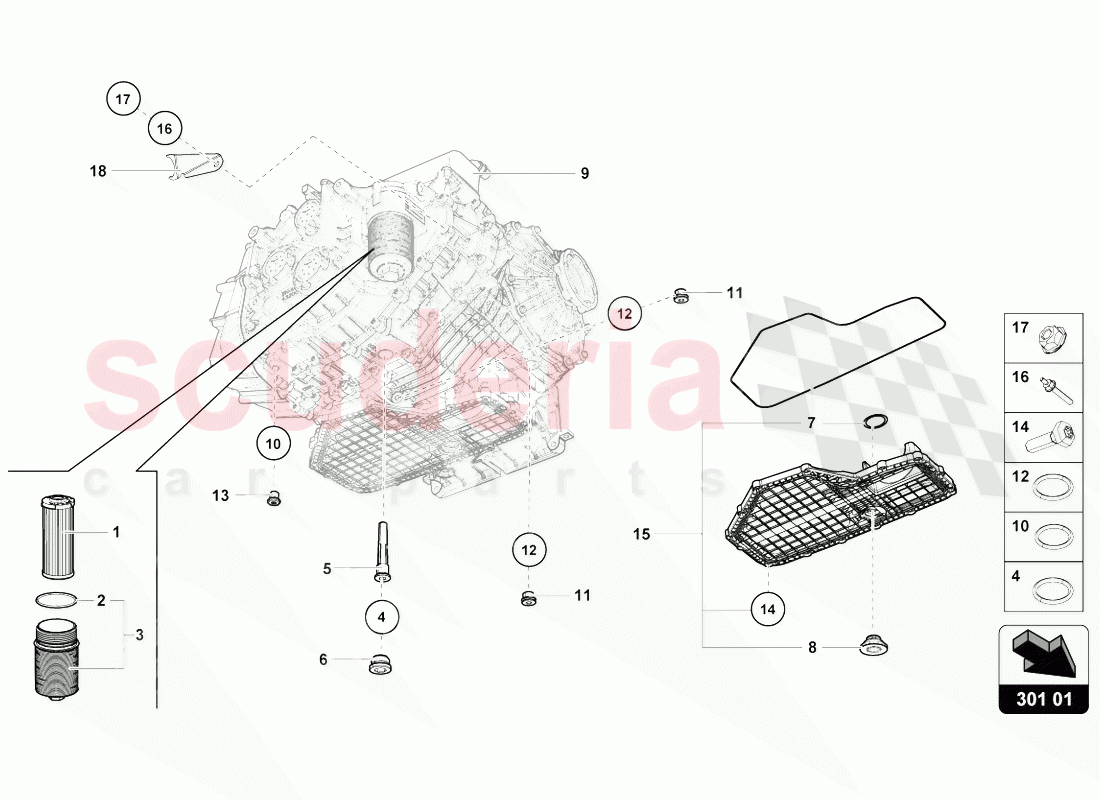

OIL FILTER of Lamborghini Lamborghini Huracan Evo Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 BH325183B
FILTER ELEMENT
BUY ALSO THE O-RING- N 910 845 01
IN STOCK 		$48.05 1
2 N91084501
O-RING
63,09X3,53
IN STOCK 		$7.56 1
3 BH325159
FILTER HOUSING WITH HEAT SHIELD 		$25.63 1
4 N0438092
SEAL RING
24X29 		$7.87 1
5 BH321363
OIL PIPE
SERVICE INSPECTION 		$7.13 1
6 N90215404
SEALING PLUG
1 MAGNETIC PLUG M24X1, 5 WITH WASHER PER SERVICE INSPECTION-M24X1,5
IN STOCK 		$8.13 1
7 BZ398359
GASKET SET FOR OIL SUMP
IN STOCK 		$47.34 1
8 BZ398359A
SEAL BOLT WITH SEALING RING
0BZ.321.359.C 		$21.57 1
9 AUTOMATIC GEARBOX
SEE ILLUSTRATION :- 300-010 		- - Enquire
10 N0138132
SEAL RING
12X17X1,5 		$3.16 (57.1% off) 1
11 WHT005257
SEALING PLUG
1 MAGNETIC PLUG M16X1. 0 WITH WASHER PER SERVICE INSPECTION- M16X1 - FROM GEARBOX ID GRAZIANO 2 FOR 2WD , 1350 FOR AWD PLUG M16X1.-M16X1
IN STOCK 		$27.43 2
12 N0138487
SEAL RING
CANNOT BE SOLD SEPARATELY-16X22
IN STOCK 		$3.27 (54.6% off) 2
13 N10637901
SEALING PLUG
PLUG M18X1, 5 PER SERVICE INSPECTION-M12X1,5X12
IN STOCK 		$6.48 1
14 N10745101
HEXAGON SOCKET FLAT HEAD BOLT
M12X50-M6X20 		$1.96 (72.9% off) 15
15 BZ321359C
OIL SUMP
IN STOCK 		$373.47 1
16 N91020902
DOUBLE STUD WITH HEXAGON DRIVE
M8X45-M6X12-M8X45/M6X12 		$19.91 1
17 N02300214
HEXAGON NUT, SELF-LOCKING
M6-M6 		$2.15 (70.3% off) 1
18 BZ301433
ARM 		$9.67 1
19 4T0398001
SEALING PLUG
UNTIL GEARBOX ID GRAZIANO 1 FOR 2WD , 1349 FOR AWD-M18 		$11.35 1
