Find Your Part

A/C CONDENSER of Lamborghini Lamborghini Huracan Evo Coupe

View All

Lamborghini Huracan Evo Coupe - A/C CONDENSER

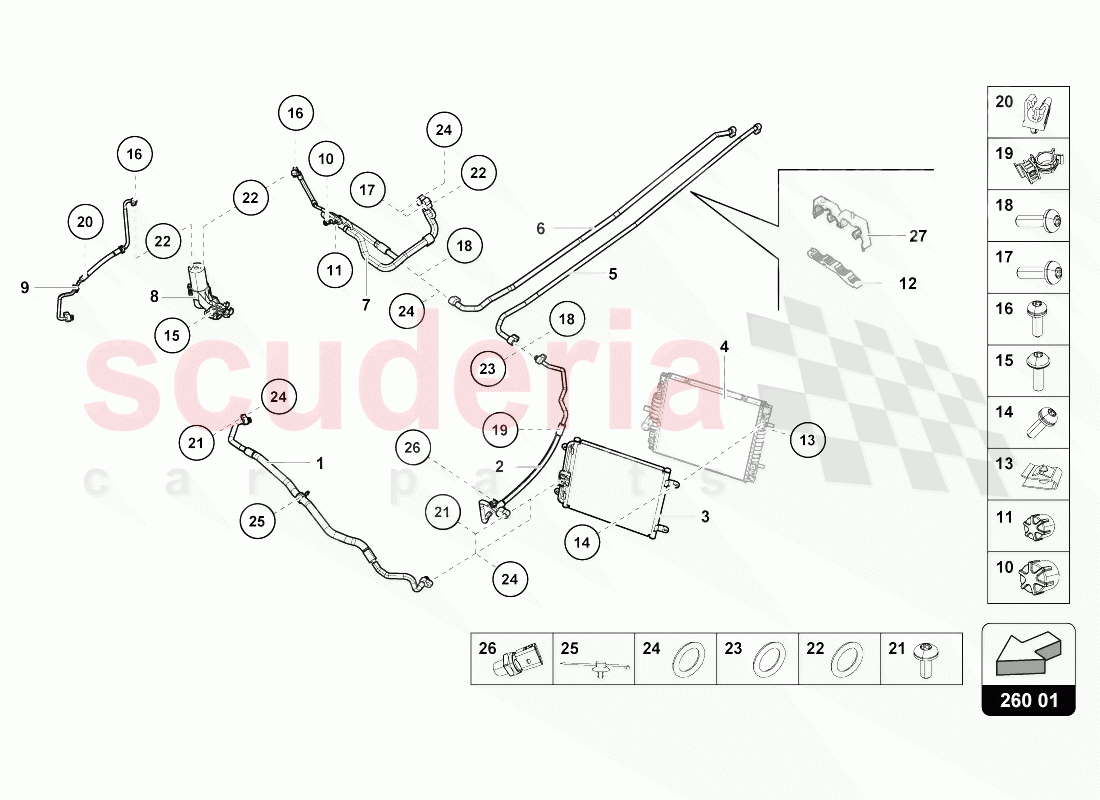

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4S0816750D	PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S0816726K	PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S0816411A	A/C CONDENSER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
		COOLER FOR COOLANT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S0816722E	PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S0816744E	PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S0820738C	PIPE	Enquire	To Order
	4S0816738C	PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S0820191D	DRIER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4S0816741A	REFRIDGERANT PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		BUNGS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		BUNGS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		RETAINING BASE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90342503	SPEED NUT	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10347003	SOCKET HEAD BOLT WITH INNER HEX ROUND HEAD	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10156206	OVAL HEXAGON SOCKET HEAD BOLT	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10347103	HEXAGON SOCKET OVAL HEAD BOLT (COMBI)	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10414402	SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10347404	SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD (COMBINATION)	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4S0260759B	CLIP	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N90943501	HOSE BRACKET	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N91193003	HEX SOCKET HEAD BOLT (COMBI)	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3D0260749C	SEAL RING	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4E0260749A	SEAL RING	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4E0260749B	SEAL RING	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N90926601	CABLE TIES	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4H0959126C	PRESSURE SENDER FOR REFRIGERANT CIRCUIT	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
		RETAINING BASE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4S0816750D	PIPE	4S0816750D PIPE	-	2	Enquire
2	4S0816726K	PIPE	4S0816726K PIPE	-	2	Enquire
3	4S0816411A	A/C CONDENSER IN STOCK	4S0816411A A/C CONDENSER IN STOCK	-	2	Enquire
4	-	COOLER FOR COOLANT	COOLER FOR COOLANT SEE ILLUSTRATION :- 121-010	-	-	Enquire
5	4S0816722E	PIPE	4S0816722E PIPE	-	1	Enquire
6	4S0816744E	PIPE	4S0816744E PIPE	-	1	Enquire
7	4S0820738C	PIPE	4S0820738C PIPE REFRIGERANT R134A	-	1	Enquire
7	4S0816738C	PIPE	4S0816738C PIPE REFRIGERANT R1234YF	-	1	Enquire
8	4S0820191D	DRIER IN STOCK	4S0820191D DRIER IN STOCK	-	1	Enquire
9	4S0816741A	REFRIDGERANT PIPE	4S0816741A REFRIDGERANT PIPE	-	1	Enquire
10	-	BUNGS	BUNGS INCLUDED IN REF. 7-M10	-	-	Enquire
11	-	BUNGS	BUNGS INCLUDED IN RERF. 7-M18	-	-	Enquire
12	-	RETAINING BASE	RETAINING BASE SEE ILLUSTRATION :- 121-030	-	-	Enquire
13	N90342503	SPEED NUT IN STOCK	N90342503 SPEED NUT M6X19,5X18 IN STOCK	-	8	Enquire
14	N10347003	SOCKET HEAD BOLT WITH INNER HEX ROUND HEAD IN STOCK	N10347003 SOCKET HEAD BOLT WITH INNER HEX ROUND HEAD M6X16 IN STOCK	-	8	Enquire
15	N10156206	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N10156206 OVAL HEXAGON SOCKET HEAD BOLT M6X30 IN STOCK	-	4	Enquire
16	N10347103	HEXAGON SOCKET OVAL HEAD BOLT (COMBI) IN STOCK	N10347103 HEXAGON SOCKET OVAL HEAD BOLT (COMBI) M6X20 IN STOCK	-	4	Enquire
17	N10414402	SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD IN STOCK	N10414402 SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD M8X28 IN STOCK	-	4	Enquire
18	N10347404	SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD (COMBINATION) IN STOCK	N10347404 SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD (COMBINATION) M6X35 IN STOCK	-	4	Enquire
19	4S0260759B	CLIP IN STOCK	4S0260759B CLIP IN STOCK	-	2	Enquire
20	N90943501	HOSE BRACKET IN STOCK	N90943501 HOSE BRACKET IN STOCK	-	4	Enquire
21	N91193003	HEX SOCKET HEAD BOLT (COMBI) IN STOCK	N91193003 HEX SOCKET HEAD BOLT (COMBI) M6X28 IN STOCK	-	8	Enquire
22	3D0260749C	SEAL RING IN STOCK	3D0260749C SEAL RING 9,5X2,5 IN STOCK	-	2	Enquire
23	4E0260749A	SEAL RING IN STOCK	4E0260749A SEAL RING 11X2,5 IN STOCK	-	1	Enquire
24	4E0260749B	SEAL RING IN STOCK	4E0260749B SEAL RING 13,7X2,5 IN STOCK	-	4	Enquire
25	N90926601	CABLE TIES IN STOCK	N90926601 CABLE TIES 4,6X200MM 6,5/2,5-3,5MM OUTER IN STOCK	-	2	Enquire
26	4H0959126C	PRESSURE SENDER FOR REFRIGERANT CIRCUIT IN STOCK	4H0959126C PRESSURE SENDER FOR REFRIGERANT CIRCUIT IN STOCK	-	1	Enquire
27	-	RETAINING BASE	RETAINING BASE SEE ILLUSTRATION :- 121-030	-	-	Enquire
