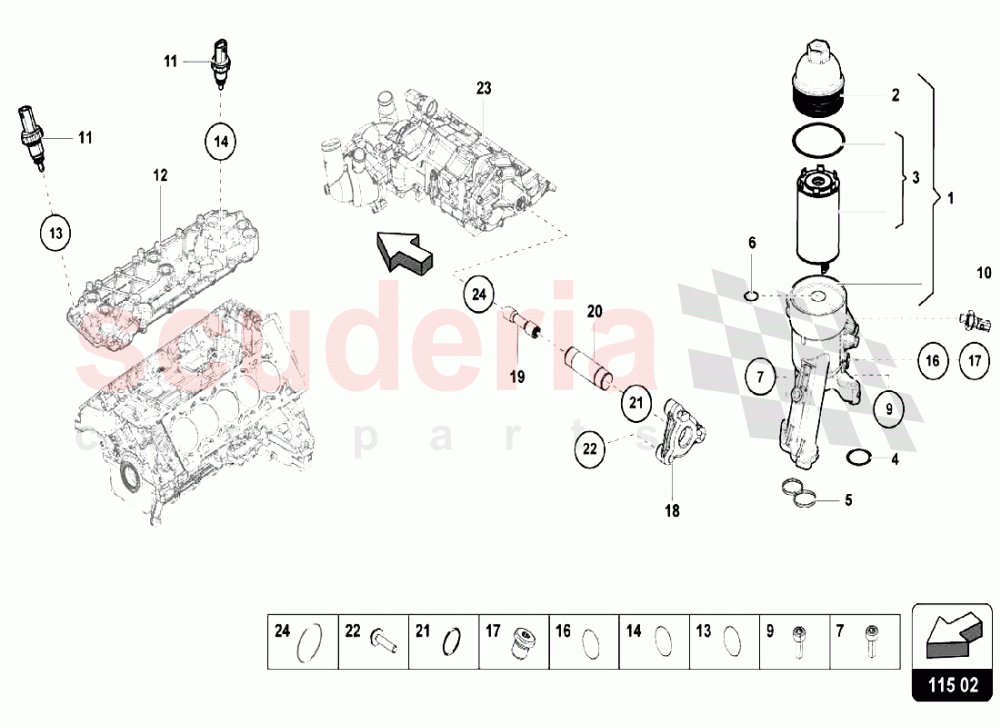

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	7L115401F	OIL FILTER BRACKET	7L115401F OIL FILTER BRACKET	$510.75	1
002	79115433D	END CAP	79115433D END CAP	$92.75	1
003	79198405E	FILTER ELEMENT WITH GASKET IN STOCK	79198405E FILTER ELEMENT WITH GASKET IN STOCK	$83.87	1
004	N10538201	O-RING IN STOCK	N10538201 O-RING IN STOCK	$5.99	1
005	79103121BE	Oil Filter Housing Gasket IN STOCK	79103121BE Oil Filter Housing Gasket IN STOCK	$17.99	1
006	N0138063	SEAL RING	N0138063 SEAL RING	$3.27	1
007	N10622101	OVAL HEXAGON SOCKET HEAD BOLT	N10622101 OVAL HEXAGON SOCKET HEAD BOLT	$1.47 MSRP: ~~7.21~~ (79.6% off)	2
009	N91124501	HEXAGON SOCKET HEAD BOLT	N91124501 HEXAGON SOCKET HEAD BOLT	$6.06	2
010	79919081	OIL PRESSURE SWITCH IN STOCK	79919081 OIL PRESSURE SWITCH IN STOCK	$26.34	1
011	59919523F	TEMPERATURE SENSOR IN STOCK	59919523F TEMPERATURE SENSOR IN STOCK	$64.33	2
013	WHT002287B	O-RING	WHT002287B O-RING	$4.37	1
014	WHT002287C	O-RING	WHT002287C O-RING	$4.78	1
016	N0138063	SEAL RING	N0138063 SEAL RING	$3.27	1
017	N91119401	SEALING PLUG IN STOCK	N91119401 SEALING PLUG IN STOCK	$4.46	2
018	7L103707B	COVER ARRIVING SOON	7L103707B COVER ARRIVING SOON	$83.02	1
019	7L115138H	COUPLING	7L115138H COUPLING	$178.78	1
020	7L115467B	PIPE IN STOCK	7L115467B PIPE IN STOCK	$26.54	1
021	WHT008700	O-RING IN STOCK	WHT008700 O-RING IN STOCK	$2.99	1
022	N10704501	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N10704501 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$1.08 MSRP: ~~7.25~~ (85.1% off)	1
