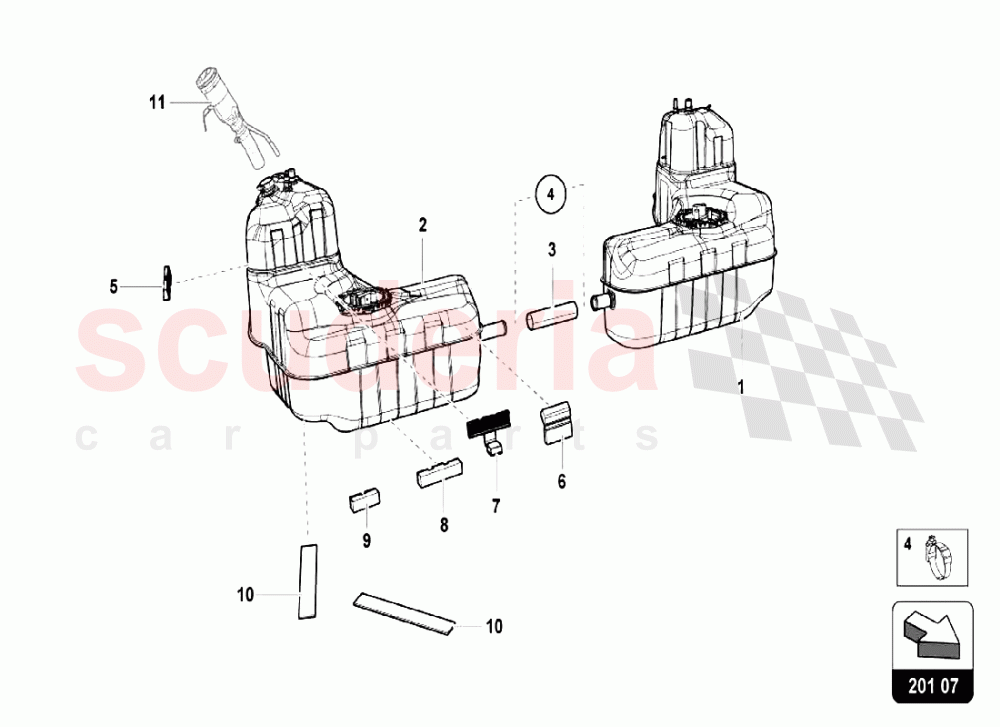

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	420201365	UNDERLAY	$19.42	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
01	4S0201021E	COMPLETE LH TANK	4S0201021E COMPLETE LH TANK	$3,259.41	1
02	4T8201022D	COMPLETE RH TANK	4T8201022D COMPLETE RH TANK	$4,556.45	1
03	4S0201143A	PIPE	4S0201143A PIPE	$64.26	1
04	N91104001	SPRING BAND CLAMP	N91104001 SPRING BAND CLAMP	$6.45	4
05	4S0201365F	UNDERLAY	4S0201365F UNDERLAY	$20.95	1
05	4S0201365G	UNDERLAY	4S0201365G UNDERLAY	$43.81	1
06	4S0201365B	UNDERLAY	4S0201365B UNDERLAY	$20.95	2
07	4S0201365K	PROTECTION	4S0201365K PROTECTION	$175.39	2
08	4S0201365C	UNDERLAY	4S0201365C UNDERLAY	$20.95	2
09	4S0201365D	UNDERLAY	4S0201365D UNDERLAY	$20.95	2
10	420201365	UNDERLAY	420201365 UNDERLAY	$19.42	5
