Name: FRONT DRIVE SHAFT AND ARMS
Rating: 5.0 (1 reviews)

FRONT DRIVE SHAFT AND ARMS of Lamborghini Lamborghini Huracan LP610 Spyder

View All

Lamborghini Huracan LP610 Spyder - FRONT DRIVE SHAFT AND ARMS

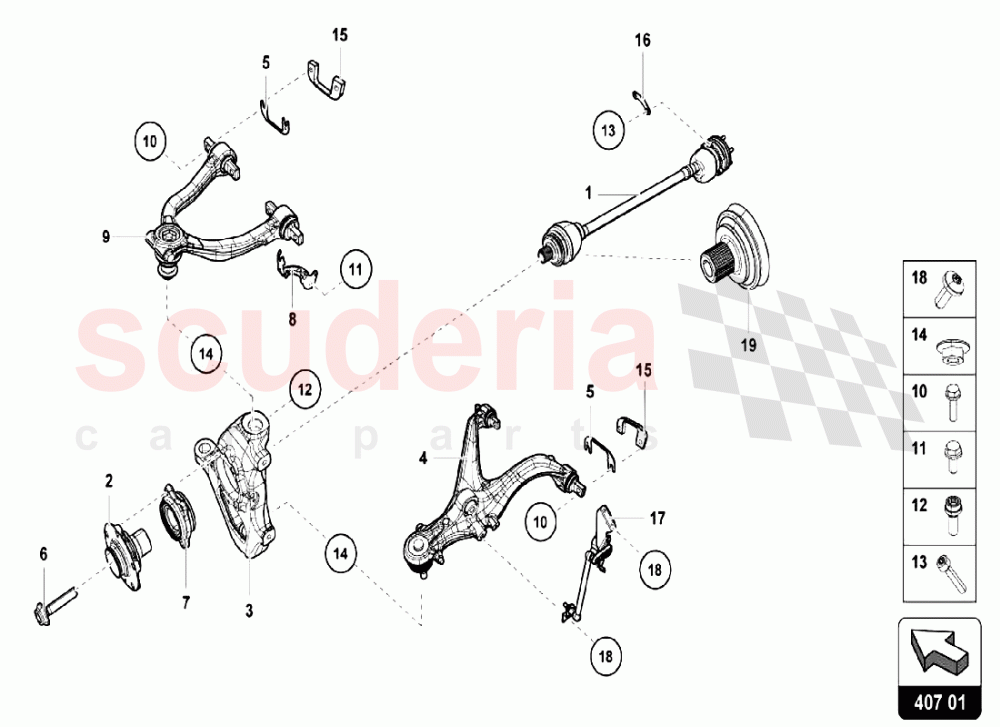

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	N10706902	HEXAGON FLANGE SCREW M10 X 55	$6.88	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT007142	HEXAGON BOLT	$8.48	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT000237	BALL SCREW	$7.21	To Order

Photo	Part No	Description	Price (each)	Stock
	N91108201	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	$3.48	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT004898	HEXAGON COLLAR NUT SELF-LOCKING	$7.13	To Order

Photo	Part No	Description	Price (each)	Stock
	4T0806569	BALANCING PLATE	$60.69	To Order

Photo	Part No	Description	Price (each)	Stock
	420407357	SPACER	$2.15	To Order

Photo	Part No	Description	Price (each)	Stock
	4T0941273A	POSITION SENSOR	$147.88	To Order
	4T0941274A	POSITION SENSOR	$152.04	To Order

Photo	Part No	Description	Price (each)	Stock
	N10405604	OVAL HEXAGON SOCKET HEAD BOLT	$1.25	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
01	4T0407271B	FRONT OMOKINETIC DRIVE SHAFT	4T0407271B FRONT OMOKINETIC DRIVE SHAFT	$768.81	2
02	4D0407613E	WHEEL HUB	4D0407613E WHEEL HUB	$353.52	2
03	4T0407246D	FRONT RIGHT HUB CARRIER	4T0407246D FRONT RIGHT HUB CARRIER	$622.30	1
03	4T0407245D	FRONT LEFT HUB CARRIER (CONTACT YOUR AREA MANAGER)	4T0407245D FRONT LEFT HUB CARRIER (CONTACT YOUR AREA MANAGER)	$626.34	1
04	4T0407152E	WISHBONE	4T0407152E WISHBONE	$1,068.99	1
04	4T0407151E	WISHBONE	4T0407151E WISHBONE	$1,034.95	1
05	4S0407203D	BALANCING PLATE	4S0407203D BALANCING PLATE	$8.19	4
05	4S0407203C	BALANCING PLATE	4S0407203C BALANCING PLATE	$7.93	4
05	4S0407203G	BALANCING PLATE	4S0407203G BALANCING PLATE	$7.93	4
05	4S0407203E	BALANCING PLATE	4S0407203E BALANCING PLATE	$8.19	4
06	4B0407643A	SHOULDERED BOLT	4B0407643A SHOULDERED BOLT	$17.35	2
07	4E0407625E	DOUBLE (ANGLED) BALL BEARING WITH FLANGE	4E0407625E DOUBLE (ANGLED) BALL BEARING WITH FLANGE	$283.23	2
08	4S0611841G	LH BRACKET	4S0611841G LH BRACKET	$11.83	1
08	4S0611842G	RH BRACKET	4S0611842G RH BRACKET	$11.83	1
09	4T0407506A	WISHBONE	4T0407506A WISHBONE	$830.65	1
09	4T0407505A	WISHBONE	4T0407505A WISHBONE	$830.65	1
10	N10706902	HEXAGON FLANGE SCREW M10 X 55	N10706902 HEXAGON FLANGE SCREW M10 X 55	$6.88	8
11	WHT007142	HEXAGON BOLT	WHT007142 HEXAGON BOLT	$8.48	8
12	WHT000237	BALL SCREW	WHT000237 BALL SCREW	$7.21	8
13	N91108201	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	N91108201 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	$3.48	12
14	WHT004898	HEXAGON COLLAR NUT SELF-LOCKING	WHT004898 HEXAGON COLLAR NUT SELF-LOCKING	$7.13	4
15	4T0806569	BALANCING PLATE	4T0806569 BALANCING PLATE	$60.69	4
16	420407357	SPACER	420407357 SPACER	$2.15 MSRP: ~~7.07~~ (69.6% off)	6
17	4T0941273A	POSITION SENSOR	4T0941273A POSITION SENSOR	$147.88	1
17	4T0941274A	POSITION SENSOR	4T0941274A POSITION SENSOR	$152.04	1
18	N10405604	OVAL HEXAGON SOCKET HEAD BOLT	N10405604 OVAL HEXAGON SOCKET HEAD BOLT	$1.25	6
