Find Your Part

View All

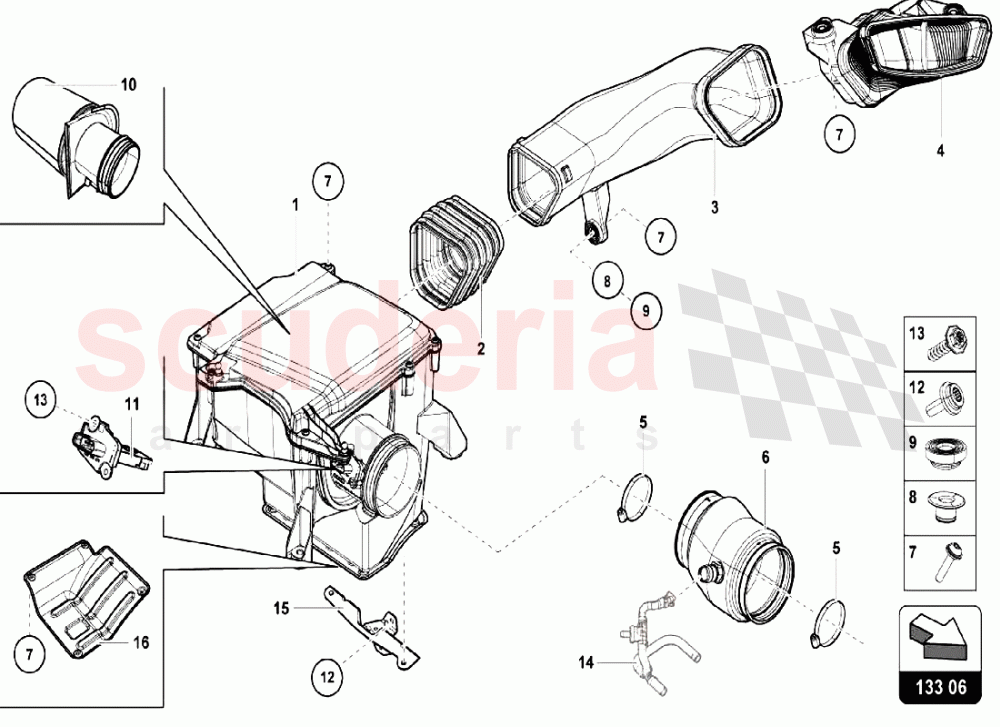

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	420133844E	AIR FILTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	420133471	AIR FLOW METER SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91128001	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91068201	HEXAGON SOCKET FLAT HEAD BOLT	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
01	4S0133837K	LH AIR CLEANER	4S0133837K LH AIR CLEANER	-	1	Enquire
01	4S0133838K	RH AIR CLEANER	4S0133838K RH AIR CLEANER	-	1	Enquire
02	4S0129739	PIPE	4S0129739 PIPE	-	2	Enquire
03	4S0129520D	LH REAR INTAKE HOSE	4S0129520D LH REAR INTAKE HOSE	-	1	Enquire
03	4S0129519D	RH REAR INTAKE HOSE	4S0129519D RH REAR INTAKE HOSE	-	1	Enquire
04	4S0129509D	AIR GUIDE	4S0129509D AIR GUIDE	-	1	Enquire
04	4S0129510D	AIR GUIDE	4S0129510D AIR GUIDE	-	1	Enquire
05	N0245085	HOSE CLAMP	N0245085 HOSE CLAMP	-	4	Enquire
06	420133303F	INTAKE HOSE	420133303F INTAKE HOSE	-	1	Enquire
06	420133385J	INTAKE HOSE	420133385J INTAKE HOSE	-	1	Enquire
07	N91054201	HEXAGON SOCKET HEAD BOLT, SELF-LOCKING	N91054201 HEXAGON SOCKET HEAD BOLT, SELF-LOCKING	-	8	Enquire
08	1K0129734B	BUSH	1K0129734B BUSH	-	6	Enquire
09	867129669	GROMMET	867129669 GROMMET	-	6	Enquire
10	420133844E	AIR FILTER	420133844E AIR FILTER	-	2	Enquire
11	420133471	AIR FLOW METER SENSOR	420133471 AIR FLOW METER SENSOR	-	2	Enquire
12	N91128001	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	N91128001 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	-	12	Enquire
13	N91068201	HEXAGON SOCKET FLAT HEAD BOLT	N91068201 HEXAGON SOCKET FLAT HEAD BOLT	-	4	Enquire
15	4S0813545C	BRACKET	4S0813545C BRACKET	-	1	Enquire
15	4S0813546C	BRACKET	4S0813546C BRACKET	-	1	Enquire
16	420115339J	RH SHIELD	420115339J RH SHIELD	-	1	Enquire
16	420115339K	LH SHIELD	420115339K LH SHIELD	-	1	Enquire
