Front Brakes Discs Ccm

Lamborghini Huracan LP610 Coupe

Find Your Part

Lamborghini Huracan LP610 Coupe - FRONT BRAKES DISCS CCM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

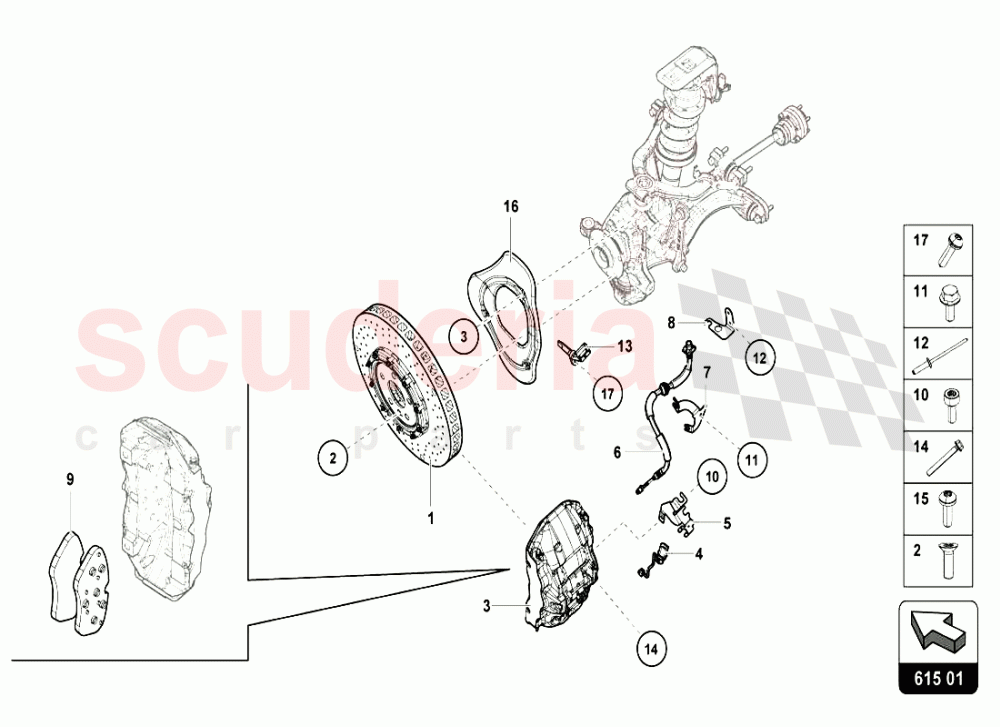

FRONT BRAKES DISCS CCM of Lamborghini Lamborghini Huracan LP610 Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 4S0615302A
Front Ceramic Rotor RIGHT HAND SIDE 		- 1 Enquire
001 420615301K
Ceramic Brake Disc (vented) (left Front) 		- 1 Enquire
001 4S0615301A
Front Ceramic Rotor Left Hand Side 		- 1 Enquire
001 420615302G
Ceramic Brake Disc (vented) (right Front)
use : 4S0615302A 		- 1 Enquire
002 N10648301
HEX SOCKET COUNTERSUNK BOLT 		- 2 Enquire
003 4T0615106B
LH FRONT BRAKE CALIPER - GREY FRONT 		- 1 Enquire
003 4T0615106A
RH FRONT BRAKE CALIPER - YELLOW 		- 1 Enquire
003 4T0615105CF
Brake Caliper Housing (left Green) 		- 1 Enquire
003 4T0615106C
RH FRONT BRAKE CALIPER - ORANGE 		- 1 Enquire
003 4T0615106D
RH FRONT BRAKE CALIPER - RED FRONT 		- 1 Enquire
003 4T0615106CF
Brake Caliper Housing (right Green) 		- 1 Enquire
003 4T0615105D
LH FRONT BRAKE CALIPER - RED FRONT 		- 1 Enquire
003 4T0615105B
RH FRONT BRAKE CALIPER - GREY FRONT 		- 1 Enquire
003 4T0615106
RH FRONT BRAKE CALIPER - BLACK FRONT 		- 1 Enquire
003 4T0615105
LH FRONT BRAKE CALIPER - BLACK FRONT 		- 1 Enquire
003 4T0615105A
LH FRONT BRAKE CALIPER - YELLOW 		- 1 Enquire
003 4T0615105C
LH FRONT BRAKE CALIPER - ORANGE 		- 1 Enquire
004 4S0615437B
BRAKE PAD WEAR SENSOR 		- 2 Enquire
005 4S0611846G
RH BRACKET 		- 1 Enquire
005 4S0611845G
LH BRACKET 		- 1 Enquire
006 4T0611707
Brake Hose (front) 		- 2 Enquire
007 4S0611842F
LH BRACKET 		- 1 Enquire
007 4S0611841F
RH BRACKET 		- 1 Enquire
008 4S0611847E
LH BRACKET 		- 1 Enquire
008 4S0611848E
RH BRACKET 		- 1 Enquire
009 4S0698151AA
1 SET OF BRAKE PADS FOR DISK BRAKE 		- 1 Enquire
010 N10572403
SOCKET HEAD BOLT WITH MULTI- POINT INNER DRIVE, SELF-LOCK. 		- 4 Enquire
011 N0902619
HEXAGON HEAD BOLT (COMBI) 		- 1 Enquire
012 N90692402
POP RIVET 		- 1 Enquire
013 4E0927803F
SPEED SENSOR 		- 1 Enquire
013 4E0927804F
SPEED SENSOR 		- 1 Enquire
014 WHT001330A
SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD 		- 4 Enquire
015 N10406504
OVAL HEXAGON SOCKET HEAD BOLT 		- 2 Enquire
016 4S0615312
COVER PLATE FOR BRAKE DISC 		- 1 Enquire
016 4S0615311
COVER PLATE FOR BRAKE DISC 		- 1 Enquire
017 N01474011
SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD 		- 2 Enquire
