Front Driveshaft - Suspension Arms

Lamborghini Huracan LP610 Coupe

Find Your Part

Lamborghini Huracan LP610 Coupe - FRONT DRIVESHAFT - SUSPENSION ARMS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

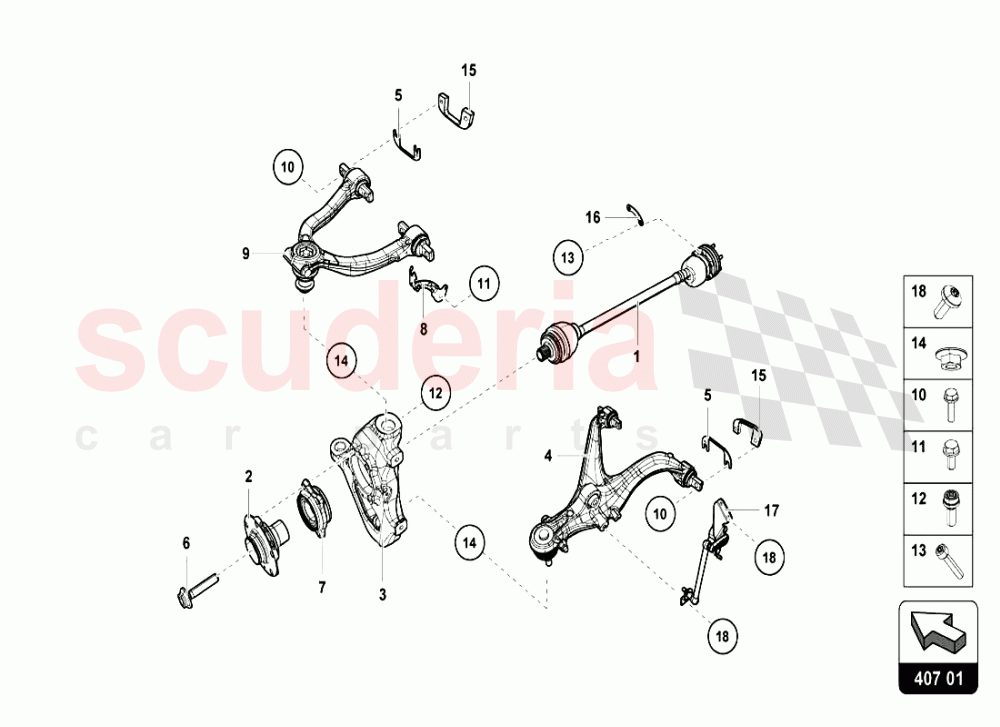

FRONT DRIVESHAFT - SUSPENSION ARMS of Lamborghini Lamborghini Huracan LP610 Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 4T0407271B
FRONT OMOKINETIC DRIVE SHAFT 		- 2 Enquire
002 4D0407613E
WHEEL HUB 		- 2 Enquire
003 4T0407246B
FRONT RIGHT HUB CARRIER (CONTACT YOUR AREA MANAGER) 		- 1 Enquire
003 4T0407245B
FRONT LEFT HUB CARRIER (CONTACT YOUR AREA MANAGER) 		- 1 Enquire
004 4T0407152E
WISHBONE 		- 1 Enquire
004 4T0407151E
WISHBONE 		- 1 Enquire
005 4S0407203D
BALANCING PLATE 		- 4 Enquire
005 4S0407203C
BALANCING PLATE 		- 4 Enquire
005 4S0407203G
BALANCING PLATE 		- 4 Enquire
005 4S0407203E
BALANCING PLATE 		- 4 Enquire
006 4B0407643A
SHOULDERED BOLT 		- 2 Enquire
007 4E0407625E
DOUBLE (ANGLED) BALL BEARING WITH FLANGE 		- 2 Enquire
008 4S0611841G
LH BRACKET 		- 1 Enquire
008 4S0611842G
RH BRACKET 		- 1 Enquire
009 4T0407506A
WISHBONE 		- 1 Enquire
009 4T0407505A
WISHBONE 		- 1 Enquire
010 N10706902
HEXAGON FLANGE SCREW M10 X 55 		- 8 Enquire
011 WHT007142
HEXAGON BOLT 		- 8 Enquire
012 WHT000237
BALL SCREW 		- 8 Enquire
013 N91108201
SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD 		- 8 Enquire
014 WHT004898
HEXAGON COLLAR NUT SELF-LOCKING 		- 4 Enquire
015 4T0806569
BALANCING PLATE 		- 4 Enquire
016 420407357
SPACER 		- 4 Enquire
017 4T0941274A
POSITION SENSOR 		- 1 Enquire
017 4T0941273A
POSITION SENSOR 		- 1 Enquire
018 N10405604
OVAL HEXAGON SOCKET HEAD BOLT 		- 6 Enquire
