Lamborghini Gallardo Superleggera - Fuel Cap

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

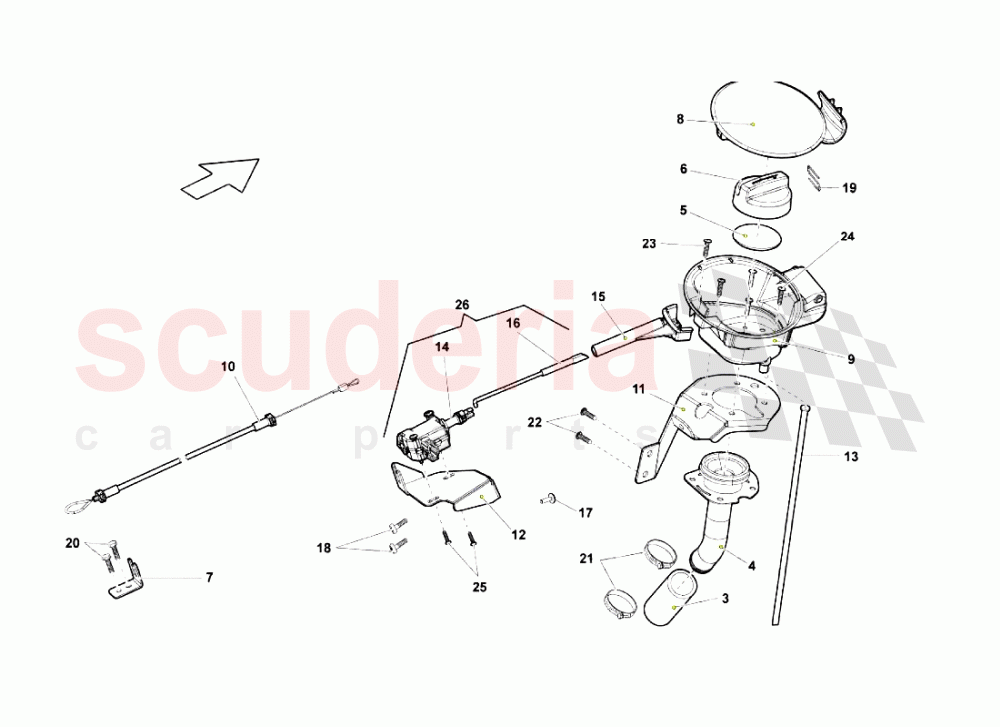

Fuel Cap of Lamborghini Lamborghini Gallardo Superleggera Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
003 400201130D
FUEL FILLER PIPE 		- 1 Enquire
004 400201137B
FUEL FILLER ASSY, UPPER (FROM VIN 4LA01313) 		- 1 Enquire
005 400201557
GASKET 		- 1 Enquire
006 400201587A
Fuel Filler Plug 		- 1 Enquire
007 400809799A
FUEL FILLER LID CABLE SUPPORT 		- 1 Enquire
008 400809909
FUEL FILLER LID 		- 1 Enquire
009 400809933A
FUEL FILLER TANK 		- 1 Enquire
010 400809977
FUEL FILLER LID MANUAL OPENING CABLE 		- 1 Enquire
011 400810965A
FUEL TANK SUPPORT BRACKET 		- 1 Enquire
012 400959849A
ACTUATOR SUPPORT BRACKET 		- 1 Enquire
013 8Z0809937
WATER DRAIN PIPE 		- 1 Enquire
014 8Z0810773A
Fuel Flap Motor 		- 1 Enquire
015 8Z0810901
ACTUATOR ROD SUPPORT 		- 1 Enquire
016 8Z0862167
HORIZONTAL ACTUATOR ROD 		- 1 Enquire
017 N90732103
HEXAGON SOCKET OVAL HEAD BOLT 		- 1 Enquire
018 N10082911
SCREW M6X16 		- 2 Enquire
019 1J0809931
SPRING 		- 1 Enquire
020 N10485703
HEXAGON SOCKET FLAT HEAD BOLT 		- 2 Enquire
021 N91104001
SPRING BAND CLAMP 		- 2 Enquire
022 N10082911
SCREW M6X16 		- 2 Enquire
023 N90732103
HEXAGON SOCKET OVAL HEAD BOLT 		- 1 Enquire
024 WHT001190
ROUND HD. SCREW 		- 4 Enquire
